ASL INTERCOM MPX10 Assembly Instructions Manual page 8

MPX10 – Adding MPX10 Expansion Module(s) Assembly Instructions
Process Details of Process

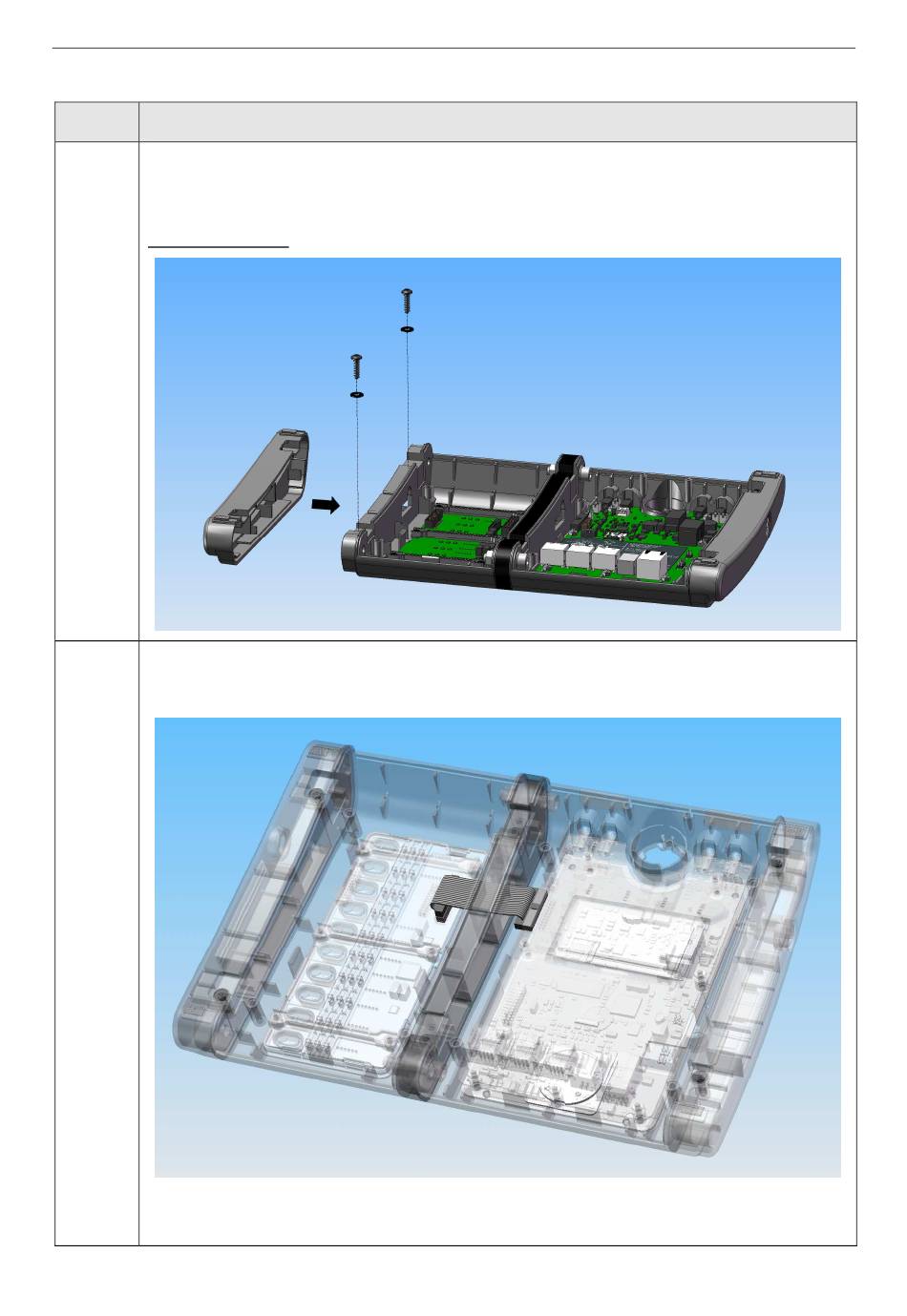

6 Re-fit the right-hand end piece to the right-hand side of the MPX10 case using the two 4.0x16
polymate pantorx 30 screws and washers removed in Step 1.
Use a T-20 driver to tighten the screws.
Do not over-tighten. We recommend the use of a torque driver set to 80 cN.m
Take the A0664110 Short Ribbon Assembly from the MPX10 kit and fit it between P2 on the
7
MPS01 PCB and SK1 on the MPX10 PCB, threading the cable through the rectangular
apertures in the case walls.
U-0664-0522.doc – Issue: 03 complete, approved
Page 8 of 12
