Step 7

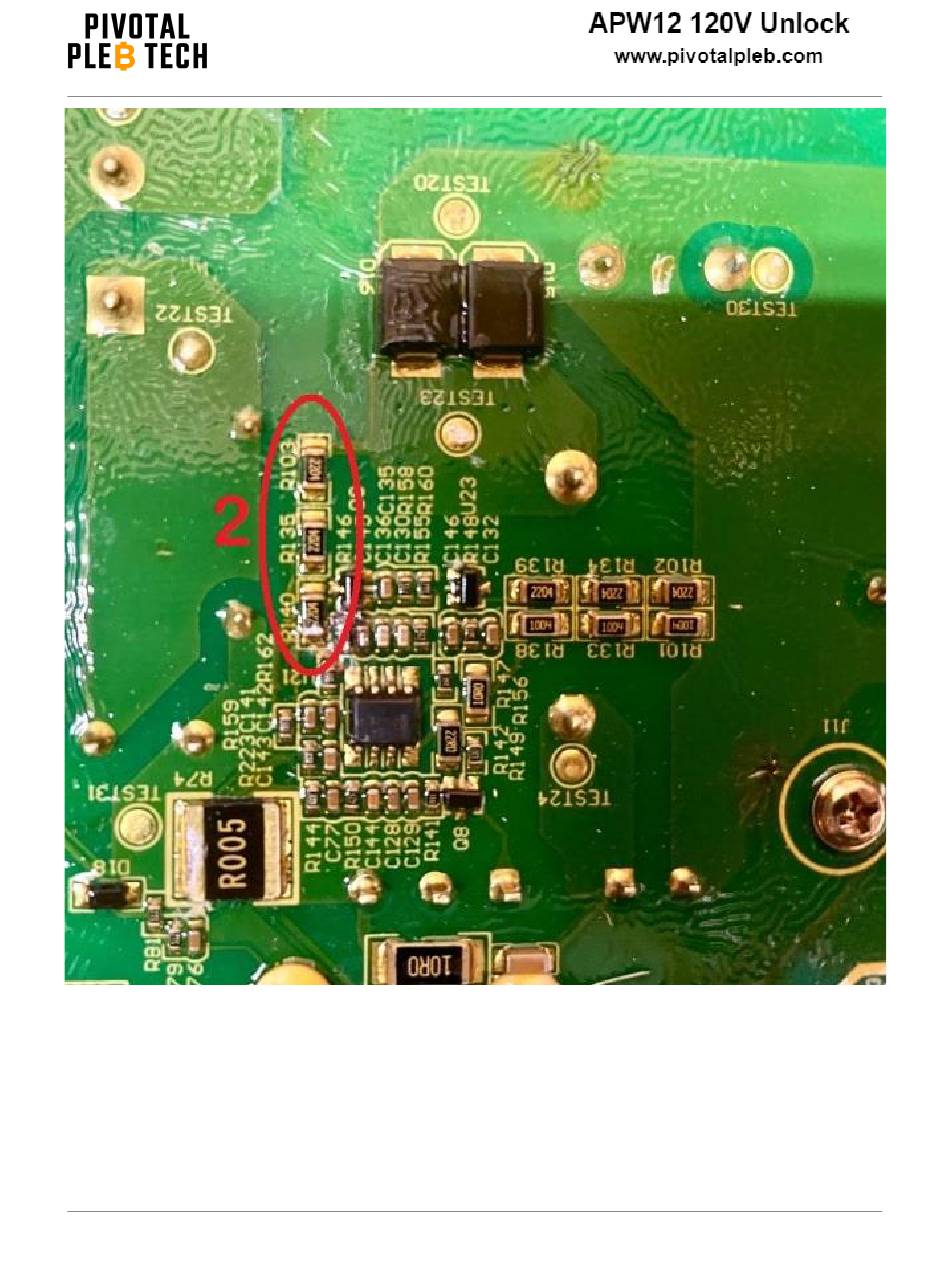

Use a sharp scraping tool to gently remove the conformal coating on top of and around
the 4 pads shown below (2 pads per resistor network tinted red where the conformal
coating should be removed). You will be soldering resistors to these pads. It is important
to completely remove the conformal coating on top of and immediately around the pads.
Document Revision 3
