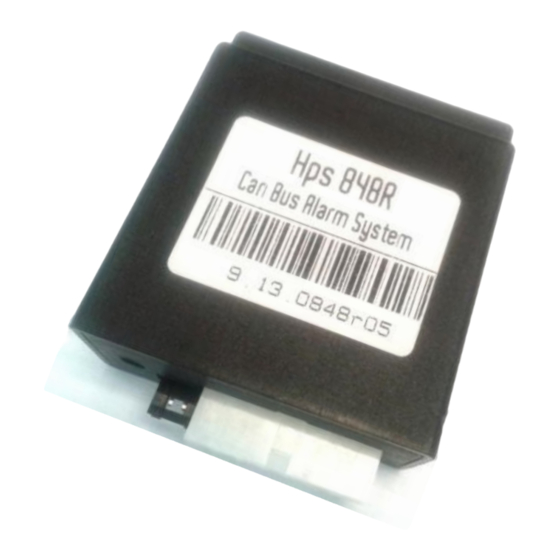

HPS 848R
HPS 848
CAN BUS Alarm System
The two systems differ for the 2.4 GHz radio
Transmitter-Receiver built-in (-R version)
"Thank you for choosing
one of our products"
THIS INSTRUCTION MANUAL IS VALID FOR SYSTEMS WITH
CARLIST 35
UPDATED
For "CARLISTxx" means the list of compatible vehicles preloaded into memory (see label report on
the main unit. Each update adds new vehicles, while maintaining compatibility with earlier. In the
box, there is a summary of those codes, but you may want to download from the site
www.patrolline.it the updated list and installation specific cards for each vehicle.
I
N
C
L
U
D
E
D
I
N
T
H
I
N
C
L
U
D
E
D
I
N
T
H
Supplied in standard version are:
•
HPS 848 or 848R Alarm device
•
Installation Wiring cables
•
This manual
•
List of code to compatible can bus vehicles
•
Panic / Programming button
•
Led wired sticker
In the 848x/55 kit version are included:
•
Adjustable ultrasonic volumetric sensor
•
pair of volumetric sensors.
or NEXT AND SUPPORT THE WIRELESS SIREN
E
B
O
X
:
E
B
O
X
:
Page
1
of 16 HPS 848 R.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PATROLLINE HPS 848R
Summary of Contents for PATROLLINE HPS 848R
- Page 1 Each update adds new vehicles, while maintaining compatibility with earlier. In the box, there is a summary of those codes, but you may want to download from the site www.patrolline.it the updated list and installation specific cards for each vehicle. Supplied in standard version are: •...
-
Page 2: User Section
It is possible to get more information about the vehicle specific installation diagram at www.patrolline.it The system works on the specific can bus line of the vehicle must be programmed through an appropriate hardware interface (BNC42) and the relative Uni_Proam.exe management software. This operation is performed by the installer. -
Page 3: Operation
User section PRESSING THE ORIGINAL REMOTE CONTROL BUTTON YOU GET THE CLOSING VEHICLE AND THE ARMING THE SYSTEM: CONFIRMED BY • 1 beep (if enabled); • The LED on the dashboard turn ON; • Engine block ON (if connected); • Modules output arming (Windows lifter, ultrasonic, etc.);... - Page 4 User section (only for 848R) In addition to the same functions as the original remote control, through the bi- directional transmission, the transmitter HPA 974 has useful diagnostic and control functions. BUTTON 3 BUTTON 2+3 Arming system Shock exclusion The entry is confirmed by: Pressing the buttons 2 and 3 - 1 beep (if enabled) simultaneously immediately after...
- Page 5 User section SPECIAL PROTECTION FUNCTION The IMMOBILIZER functions, ANTI-AGGRESSION and ANTI-THEFT ARE NOT ACTIVE in the default configuration. Their activation can be done exclusively on the customer's request and only by qualified personnel. Warning this function are managed by the Programming Pushbutton (that must be installed) or by the transponder device (HPA977) Button RESET - HPA 977...
- Page 6 10 seconds, press together the “2” and “3” buttons. The exclusion will be confirmed by 5 blinkers flashes and 5 beeps. (Only for HPS 848R) When the alarm is armed, if the system detects a radio interference device acts to blind the operating frequency, it triggers one automatic alarm cycle.
- Page 7 To stop the alarm triggering without to disarm the system, press the LOCKING button of the original remote control or the “2” button of the PATROLLINE remote control. To stop the alarm triggering and disarm the system, press the UNLOCKING button of the original remote control or the “1”...
- Page 8 User section If the central unit records one or more causes of alarm, they are signaled, when disarming and open the driver door or press the anti hi-theft push-button through the LED. To verify the type of alarm, check the number of flashings of the LED with the table below. N°...
-
Page 9: Installer Section
Installer Section There is a specific fitting instruction for every vehicle that is wrote into the vehicle compatible list. The following diagram shows a general connection example with ZWW-02223 wiring loom. Shock adjustment REAR BOX MAIN Programming PC Input (see BNC042 tool) Positive 12V RED (8) - Page 10 Installer Section SIREN INSTALLATION – HORN CONNECTION The HPS848x systems has two alarm outputs: WHITE/RED wire, output 100mA max, negative output. On this connection will execute arming beep. Factory is configured to connect the horn, then intermittently, but it’s possible to switch in continuous mode (see. Function n°6) WHITE wire, negative output in case of alarm, max 100mA.
- Page 11 LEARNING WIRELESS SIREN The Patrolline wireless sirens must be learned by the alarm in order to work. Both siren and alarm must be in the learning condition. Alarm side: enter in the programming procedure (2 button presses), the LED flashes quickly.
- Page 12 Installer Section HPA974 remote controls and HPA977 Transponder learning To learn the additional remote controls and Transponders, the selectors on the central unit must be positioned as showed on the vehicle compatible list, for CAN BUS vehicles, or on the selection 0-1, for no CAN BUS vehicle. Learning procedure: Push the programming button for 5 times, the LED flashes quickly;...
- Page 13 F.24 This setting permits to disable the alarm arming and disarming by the OEM remote control. The alarm can be armed only by the PATROLLINE remote control HPA 974. SWITCH the reading PIN CODE from IGNITION KEY to BRAKE PEDAL F.25...
- Page 14 Installer Section Alarm parameters default restore F.31 This setting permits tot o restore all the alarm default parameters, without to delete any stored devices. ENGINE CUT WITH EXTERNAL POWER RELAY (OPTIONAL) The engine stop unit supports a maximum current of 100mA. +15 (Under key) To stop higher current...
- Page 15 User Section : All the operations to repair the alarm must be performed by PATROL LINE ENERAL MAINTENANCE Assistance Centers. The tampering of the alarm by personal not qualified can jeopardize the device working and the safety of the vehicle. It is advisable to replace the batteries of optional HPA977 devices, HPA974, HPA975 every two years.
-
Page 16: Conditions Of Warranty
The warranty consists in free replacing or repairing of parts unusable or inefficient because of factory’s fault verified by Patrolline. Any delay in carrying out works do not entitle to damages or extension of warranty. The warranty lapses if the devices are used not in conformity with the present conditions, if they are modified, repaired or tampered, if the defects derive from accidents, from negligence or from using parts not original.
