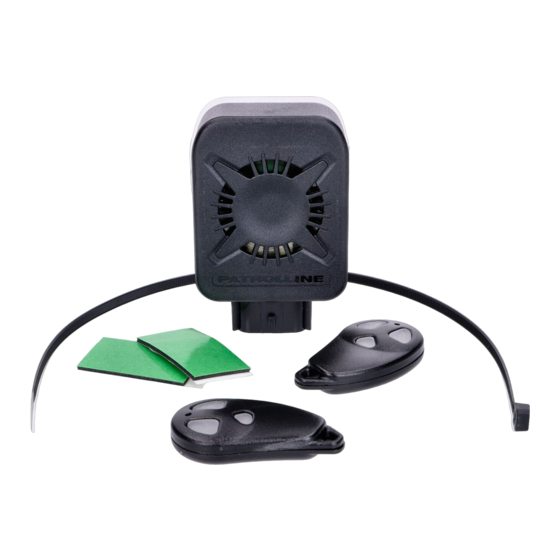

PATROLLINE HPS 940 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HPS 940
.1
14 - R
.0 -
.: 00-99-940010
PAG
DI
EV
COD

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPS 940 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PATROLLINE HPS 940

Summary of Contents for PATROLLINE HPS 940

  • Page 1 HPS 940 14 - R .0 - .: 00-99-940010...
  • Page 2 Thank you for choosing one of our products Instructions The HPS 940 alarm system can be used for the motorcycle or scooter protection. This manual must be considered like a part of the vehicle, it must be kept for the future reference.
  • Page 3 Alarm state and Alarm… After the alarm arming (LED fixed), the central unit is ready to signal every attempt of theft. The alert state is signalled by the flashing of the LED installed on the dashboard. In case of effraction, shock, lighting of the console, opening of tele alarms (if installed), opening of protected vain or prop-stand, the system will emit an optic-acoustic signal (indicator lights flashing and siren sound) for 30 seconds.
  • Page 4 “beeps” equal to the happened alarms (max 7 signalling). Battery backup… HPS 940 is equipped with self-powered battery that guarantees its operation in case of main power supply wiring is cut. The battery backup is automatically armed when the black connector of the alarm wiring is connected.
  • Page 5 Change of release code… This operation allows to personalize the secret release code from the one of factory (1-2-3) to the desired one: 1. By the ignition key, compose the old secret code as described in the previous paragraph. 2. Wait for 4 flashes of the indicators lights as confirmation that the old release code is correct. 3.
  • Page 6 Programmable functions… HPS 940 can modifies the common features by following this procedure: 1. During the system disarmed (LED off), compose the “secret release code” by the ignition key (see paragraph “Use of the Secret Release code”). At the end, the indicator lights will quickly flash to confirm that the release code is correct.
  • Page 7 Programmable functions description… 1. Deactivation of ON – OFF acoustic signals Arming or disarming the alarm system depressing the “button A” is signalled via a blinkers flash as well as an acoustic warning. It may sometimes be necessary the exclusion of the acoustic warning and having a silent signalling. Arming/disarming depressing the “button A”...
  • Page 8 Shock sensor adjustment … The shock sensor is already adjusted by our laboratories, in such a way to have a good compromise between alarm sensibility and prevention against the false alarms. In the case it was necessary to change the sensibility, it must be followed this procedure with the alarm disarmed: ...

  • Page 9: General Maintenance

    Alarm system maintenance… : If the vehicle had to be washed with high-pressure devices (hydro beam or similar), it is EHICLE CLEANING necessary to protect the alarm before beginning the washing. If you are not sure to sufficiency protect the alarm or if the washing must have done in all the parts of the vehicle, the alarm must be removed from its own place.
  • Page 10 Generic wiring diagram connections Warning The alarm must be installed by a qualified person following carefully the indications of the manufacturer. The person who do the installation must fill in the installation certificate attached. The homologation number of the alarm can be found on the user’s manual or on the label located on the plastic box of the alarm.
  • Page 11 Precautions for the installer ENTRAL OSITION Locate in the vehicle a good place to install the central unit. This location must protect the device from water but must also allow a good sound of the siren. Once the installation is over, shut with the wrapper the protecting rubber cover of the alarm.

  • Page 12: Conformity Declaration

    Conformity declaration and Technical features 11V ÷ 15V OWER SUPPLY CONFORMITY DECLARATION < 1,5 mA LARM ARMED COMSUMPTION 5 + 5A LINKERS RELAY MAX CURRENT This product is in conformity with the European Directive 95/56/CE, regarding the NGINE BLOCK RELAY MAX CURRENT functionality of the alarm devices, and <...
  • Page 13 The warranty consists in free replacing or repairing of parts unusable or inefficient because of factory’s fault verified by Patrolline. Any delay in carrying out works do not entitle to damages or extension of warranty. The warranty lapses if the devices are used not in conformity with the present conditions, if they are modified, repaired or tampered, if the defects derive from accidents, from negligence or from using parts not original.

  • Page 14: Installation Certificate

    ________________________________________________________ of the installer MALFUNCTION (minutely describe the problem): _______________________________________________________________ _______________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ PATROLLINE GROUP Società Cooperativa Via C. Cantù 15/C 22031 Albavilla (CO) ITALY Tel: +39.031.0352088 Fax: +39.031.0352089 E-mail: info@patrolline.it Web: www.patrolline.it 14 - R .0 -...
