SPECIAL T Structure Assembly Instructions

TOOLS
#3 Phillips Bit
#2 Phillips Bit
Impact 13 mm
3/8" Socket
Drill Wrench
with adapter
PARTS & HARDWARE LIST
A
Tabletop
(1)
B
Structure-T
Base Set
(Left Leg & Right Leg)
C D
Structure Flipping Beam Casters
(1) (4)
E
Release Rod
(1)
F G
Flanged Phillips Flat Phillips Head
Head Base Screws Table Screws
(8) (16)
H
Gusset Set
(2-Left & 2-Right)
I
Self Tapping Hex Head
Gusset Screws
(12)
FOR MISSING PARTS OR QUESTIONS, PLEASE CALL CUSTOMER SERVICE AT 888-705-0777.
888.705.0777
G
B
C
A
F
F
NOTCHED GUSSET
PLACED OVER
RELEASE ROD (E)
I
1
Structure Flip Top - Round
A S S E M B LY I N S T R U C T I O N S

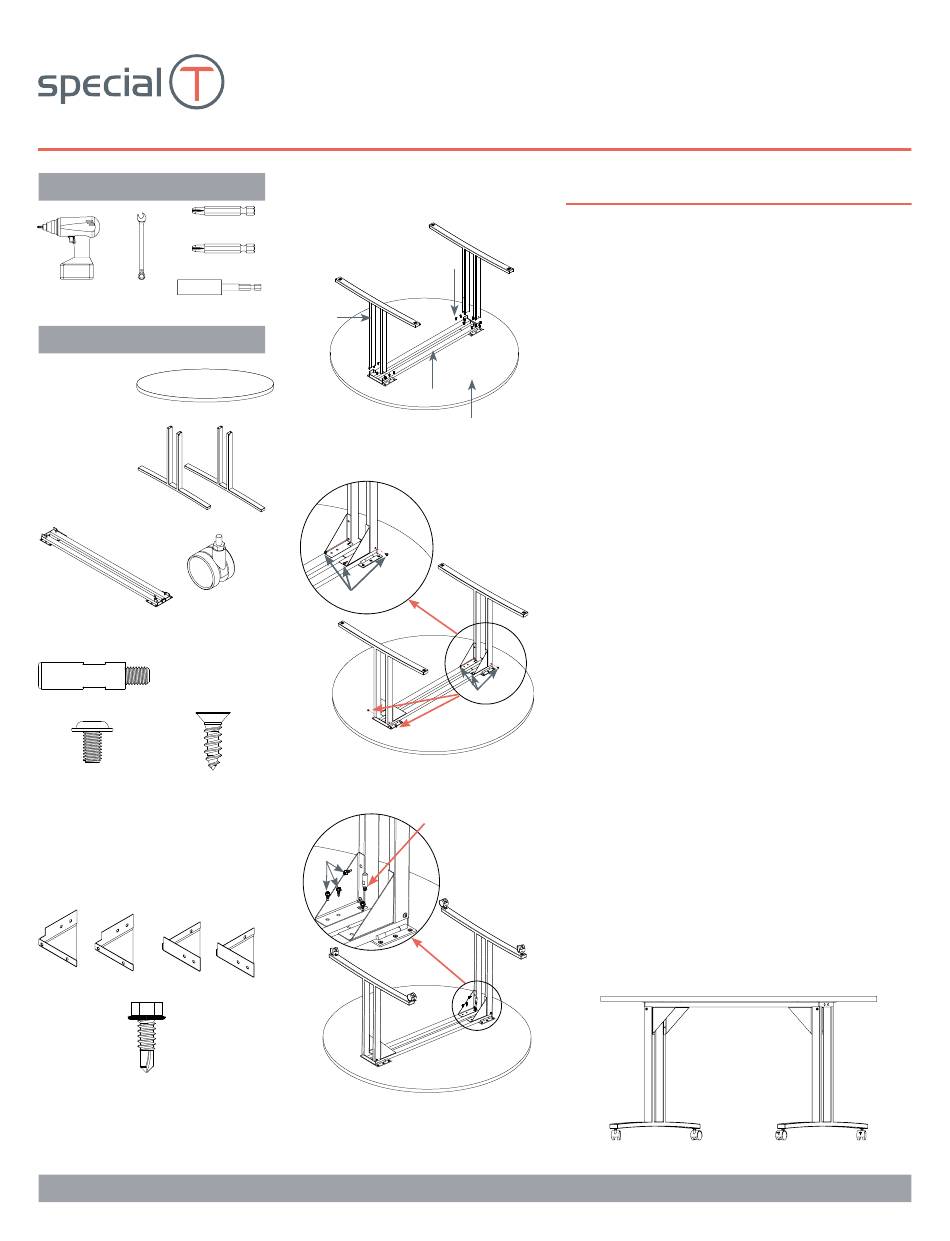

ASSEMBLY STEPS
1. Position the Structure Flipping Beam (C) on the
bottom of the tabletop (A), aligning pre-drilled holes
if applicable.
CRITICAL NOTE:
Ensure beam is oriented correctly.
2. Mount Structure Flipping Beam (C) to the table
using (16) Flat Head Table Screws (G).
3. Position the Left & Right Structure Bases (B)
onto vertical tabs on the Flipping Beam (C) (Ensure
that holes in the Structure Bases are facing inward).
4. Install (4) Flanged Phillips Head Base Screws (F)
through Left & Right base outer holes into Flipping
Beam (C).
5. Position Left & Right Gussets (H) onto the flipping
beam (C) (Notched Gusset placed over the Release
Rod).
6. Install (4) Flanged Phillips Head Base Screws (F)
through the Left & Right Base (B) inner holes into
the Flipping Beam (C).
7. Install (12) Self Tapping Hex Head Gusset Screws
(I) through Gussets into the Base (B) and Flipping
Beam (C).
8. Remove the Release Rod (E) from the hardware
pack and install it on the Flipping Beam (C).
9. Install (4) Casters (D) onto the Base (B) using a
13mm wrench.
10. Have two people hold onto the edges of the top
and carefully turn the table over into the upright
position.

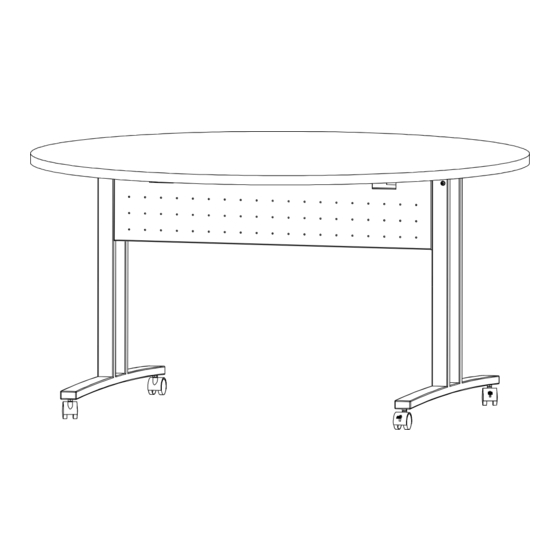

STRUCTURE FLIP TOP ROUND TABLE WITH GUSSETS
With Gussets
