Montage Beckengurt

Assembly of the pelvis belt

®
Aquatec
Orca
Stand: 09/07
Status: 09/07
Revision 00
All manuals and user guides at all-guides.com

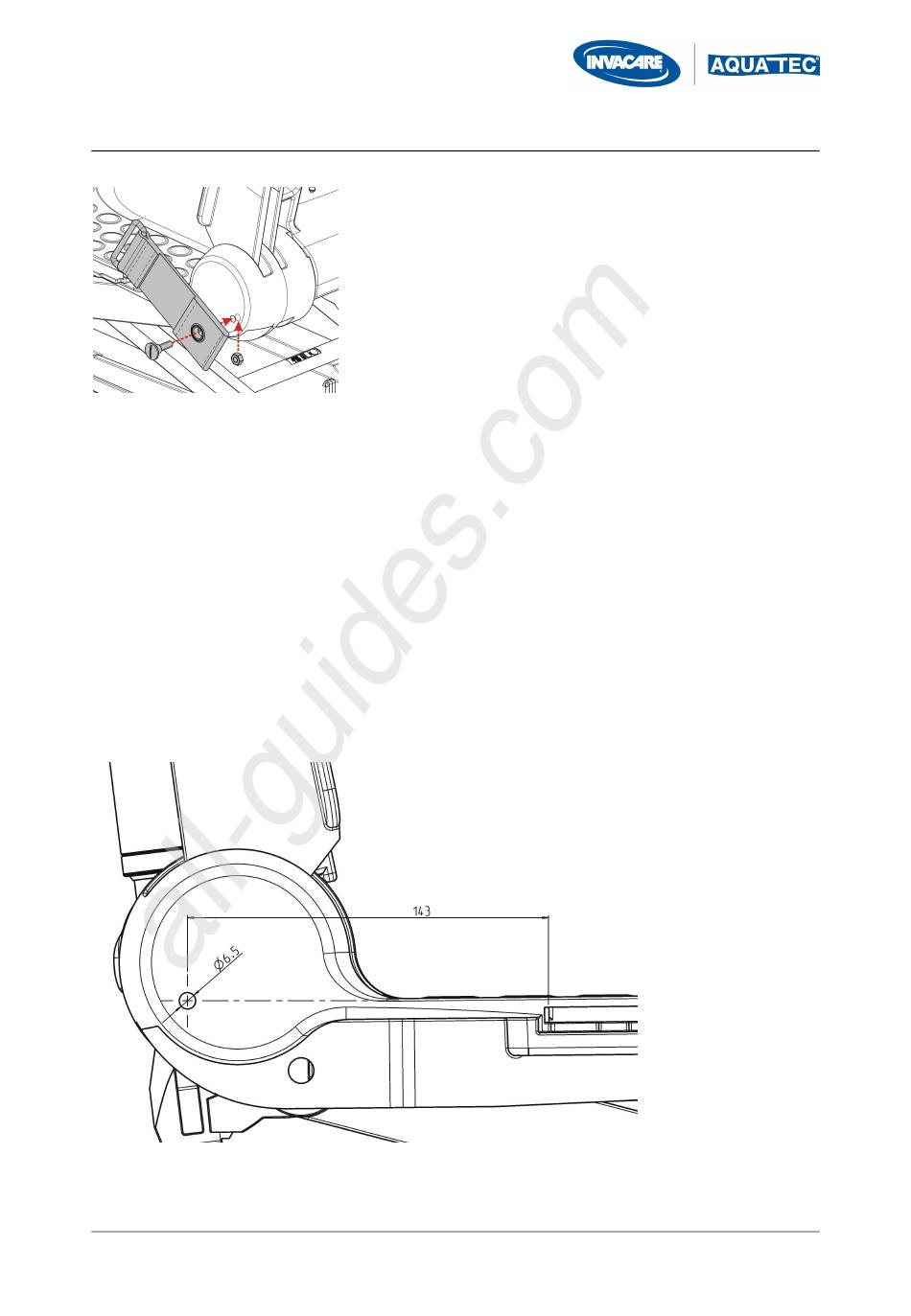

1. Mit Hilfe der Bohrschablone auf der Rückseite
eine Bohrung Ø 6,5 mm durch die äußere
Wandung herstellen.
Please use the drilling jig to scribe a mark for
the drill hole. Use a drill (Ø 6,5 mm/ Ø 2.56 in)
to drill a hole through the outside wall only.
2. Schraube durch die Gurtöse in die Bohrung
führen und von der Innenseite die Mutter M6
gegenhalten und befestigen.
Please assemble the belt by using the thread
eye as shown on the drawing. Please hold the
nut (M6) on the inside to fasten assembly.
3. Schritt 1 und 2 auf der anderen Seite wieder-
holen.
Please repeat Step 1 and 2 of the assembling
on the opposite side as well.
Seite 1 von 2
Page 1 of 2
Artikel-Nr.: 1471551
Order No.: 1471551
