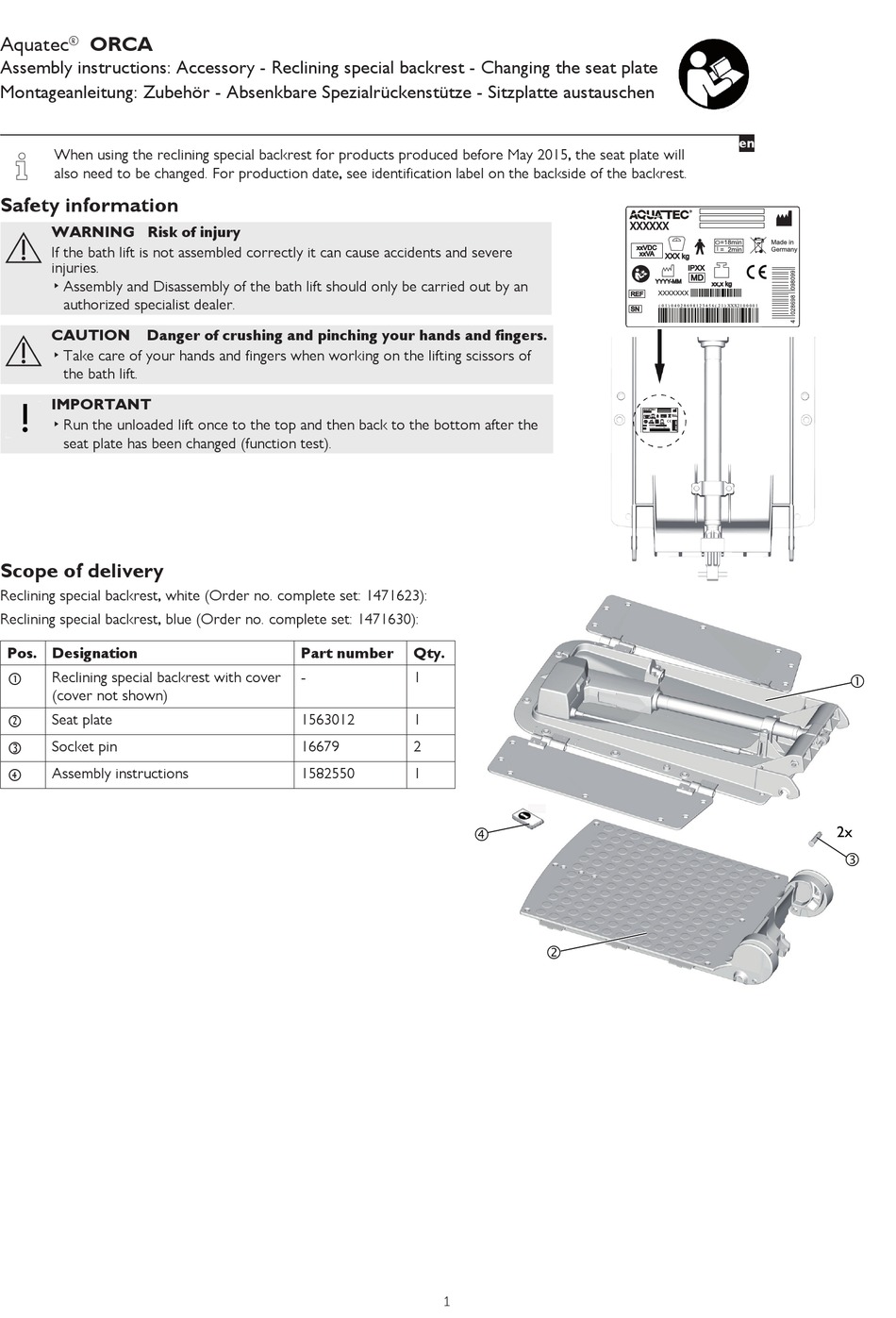

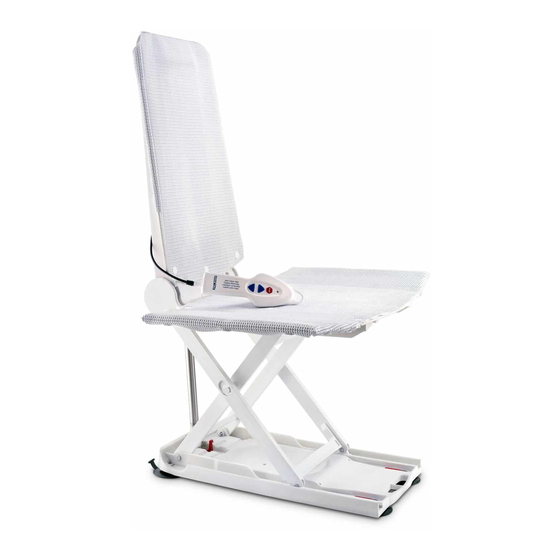

Aquatec® ORCA
Assembly instructions: Accessory - Reclining special backrest - Changing the seat plate
Montageanleitung: Zubehör - Absenkbare Spezialrückenstütze - Sitzplatte austauschen
When using the reclining special backrest for products produced before May 2015, the seat plate will
i
also need to be changed. For production date, see identification label on the backside of the backrest.
Safety information
WARNING Risk of injury
If the bath lift is not assembled correctly it can cause accidents and severe
injuries.
▸ Assembly and Disassembly of the bath lift should only be carried out by an
authorized specialist dealer.
CAUTION
Danger of crushing and pinching your hands and fingers.
▸ Take care of your hands and fingers when working on the lifting scissors of
the bath lift.
IMPORTANT
▸ Run the unloaded lift once to the top and then back to the bottom after the
seat plate has been changed (function test).
Scope of delivery
Reclining special backrest, white (Order no. complete set: 1471623):
Reclining special backrest, blue (Order no. complete set: 1471630):
Pos. Designation
Reclining special backrest with cover
(cover not shown)
Seat plate
Socket pin
Assembly instructions
Part number
Qty.
-
1
1563012
1
16679
2
1582550
1
1
en
XXXXXX
=1
8m
n
i
M
a
d
e
in
xxVD
C
=
2
m
n
i
G
e
r
m
ny
a
xxV A
XXX kg
IPXX
MD
YYYY -MM
xx,x kg
XXXXXXX
( 0 1 ) 0 4 0 2 8 6 9 8 1 2 3 4 5 6 ( 2 1 ) X X X 2 1 0 0 0 0 1
S N
2x
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Invacare Aquatec ORCA
Summary of Contents for Invacare Aquatec ORCA
- Page 1 Aquatec® ORCA Assembly instructions: Accessory - Reclining special backrest - Changing the seat plate Montageanleitung: Zubehör - Absenkbare Spezialrückenstütze - Sitzplatte austauschen When using the reclining special backrest for products produced before May 2015, the seat plate will also need to be changed. For production date, see identification label on the backside of the backrest. Safety information WARNING Risk of injury If the bath lift is not assembled correctly it can cause accidents and severe...
- Page 2 Changing the seat plate 1. Starting from one side press in clips A and simutanoeusly pull out the side flap slowly. 2. Repeat step 1 for the opposite side flap. 3. Lift up the lifting scissors. 4. Using a flat head screwdriver, remove the outer socket pins C, which connect the front part of the lifting scissors with the seat plate, push them through to the inside and remove.
- Page 3 Wenn bei Produkten mit einem Herstellungsdatum vor Mai 2015 die absenkbare Spezialrückenstütze verwendet wird, muss zusätzlich auch die Sitzplatte ausgetauscht werden. Das Herstellungsdatum kann dem Typenschild auf der Rückseite der Rückenlehne entnommen werden. Sicherheitsinformation WARNUNG Gefahr von Unfällen und schweren Verletzungen. Wenn der Badewannenlifter falsch eingestellt ist, kann es zu Unfällen mit schweren Verletzungen kommen.
- Page 4 Hubschere und die Sitzplatte durch die Bohrungen von innen nach außen abstecken. 7. Die Seitenklappen gleichmäßig in die Aussparungen der Sitzplatte einschieben bis die Clips einrasten. ©2021, Invacare GmbH, D-88316 Isny, all rights reserved. Part No. 1582550-B / 2021-10...
