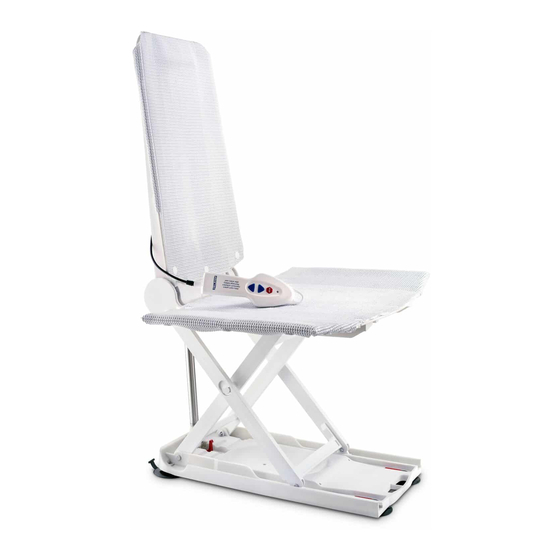

Invacare Aquatec Orca Repair Instructions

Invacare Aquatec Orca Repair Instructions

Hide thumbs Also See for Aquatec Orca:

Advertisement

INSTRUCTION FOR REPAIR
®
Aquatec
Orca, Orca XL
V P&M 04
Revision 01
NOTE!
• Repairs may only be done by authorised dealers.
• Risk is assigned to the executor with repairs.
• Solely use original spare parts for repairs.
• Repairs and serial numbers of replaced parts have to be documented.
• Professional and safe repairs can be done by INVACARE
Before starting the repair please read the referring chapters of the repair
instructions thoroughly!
HAZARD NOTE!
NOTE!
I.

REPAIR INSTRUCTIONS SEAT

The seat – consisting of base plate, lifting scissors and seat plate – is available
as one complete spare part.
NOTE:
• Seat of Orca (1471050) with a straight end at the back side.
• Seat of Orca XL (1471103) with a curved end at the back side and an
additional „XL"-mark on the lifting scissor.
Below the assembly of attachment parts:
Attachment parts in the area of the spindle foot
1. Insert the flat spring (15415) into the base plate in the right positional
arrangement. The opening angle shows to the back edge of the base
plate.
2. Insert latch (16449) into base plate directly above the flat spring.
3. Insert bushing latch (16448) into the base plate coming bottom-up.
NOTE: Bear against the latch while pressing the bushing latch into
the base plate.
4. Slip pressure springs (2x 16794) onto the pins of the base plate.
5. Slip lockings (16791 + 16792) onto the pressure springs and press them
into the base plate. Before pressing first apply the locking inclined.
NOTE: Consider different lockings (left and right).
NOTE: The locking has to engage audible.
6. Function test of lockings: Lockings can be pressed down and are
returned into their home position.
Instruction for Repair – Orca, Orca XL
Revision 01
Increased risk of jamming and squeezing with all works related
to the lifting mechanism within the area of the scissors!
The sequence of work has to follow according to the repair
instructions!
Page 1 of 7
issued: 28.11.2006 UW
changed: 30.01.2007 UW
®
AQUATEC
Pic 1
Pic 2
Pic 3
Pic 4
Pic 5
Pic 6
Pic 7
Pic 8
Issued: 28.11.2006 UW
Changed: 03.07.2007 UW
Part no. 1471121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquatec Orca and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Invacare Aquatec Orca

  • Page 1 • Risk is assigned to the executor with repairs. • Solely use original spare parts for repairs. • Repairs and serial numbers of replaced parts have to be documented. • Professional and safe repairs can be done by INVACARE ® AQUATEC...
  • Page 2 INSTRUCTION FOR REPAIR ® Aquatec Orca, Orca XL V P&M 04 issued: 28.11.2006 UW Revision 01 changed: 30.01.2007 UW Attachment parts in the area of the base plate 1. Screw in the suction cups with thread (2x 15071) into the rear threads of Pic 9 the base plate.
  • Page 3 INSTRUCTION FOR REPAIR ® Aquatec Orca, Orca XL V P&M 04 issued: 28.11.2006 UW Revision 01 changed: 30.01.2007 UW NOTE: Consider the cable to be under the tube and above the Pic 14 upper tube fixation. NOTE: Consider the proper alignment: The bulge of the spindle Pic 15 foot faces to the top.
  • Page 4 INSTRUCTION FOR REPAIR ® Aquatec Orca, Orca XL V P&M 04 issued: 28.11.2006 UW Revision 01 changed: 30.01.2007 UW III. FUNCTION TEST 1. Place the assembled backrest onto the seat plate and erect it. 2. Using a charged hand control all functions of the bathlift have to be checked.
  • Page 5 INSTRUCTION FOR REPAIR ® Aquatec Orca, Orca XL V P&M 04 issued: 28.11.2006 UW Revision 01 changed: 30.01.2007 UW 5: Latch 6: Bushing latch 7: Pressure spring 8: Locking 9: Suction cup with thread 10: Suction cup with toggle Instruction for Repair – Orca, Orca XL Page 5 of 7 Issued: 28.11.2006 UW Revision 01...
  • Page 6 INSTRUCTION FOR REPAIR ® Aquatec Orca, Orca XL V P&M 04 issued: 28.11.2006 UW Revision 01 changed: 30.01.2007 UW 11: Strap in bearing 12: Suction cup lid 13: Thrust washer of lifting scissors 14: Actuator 14a: Slot of spindle is centered with clamp horse Instruction for Repair –...
  • Page 7 INSTRUCTION FOR REPAIR ® Aquatec Orca, Orca XL V P&M 04 issued: 28.11.2006 UW Revision 01 changed: 30.01.2007 UW 15: Bulge of spindle foot Orca and Orca XL 16: Imaginary spindle foot axle 17: Nut 18: Pulley 19: Phone jack 20: Thrust washer of bolt Instruction for Repair –...
