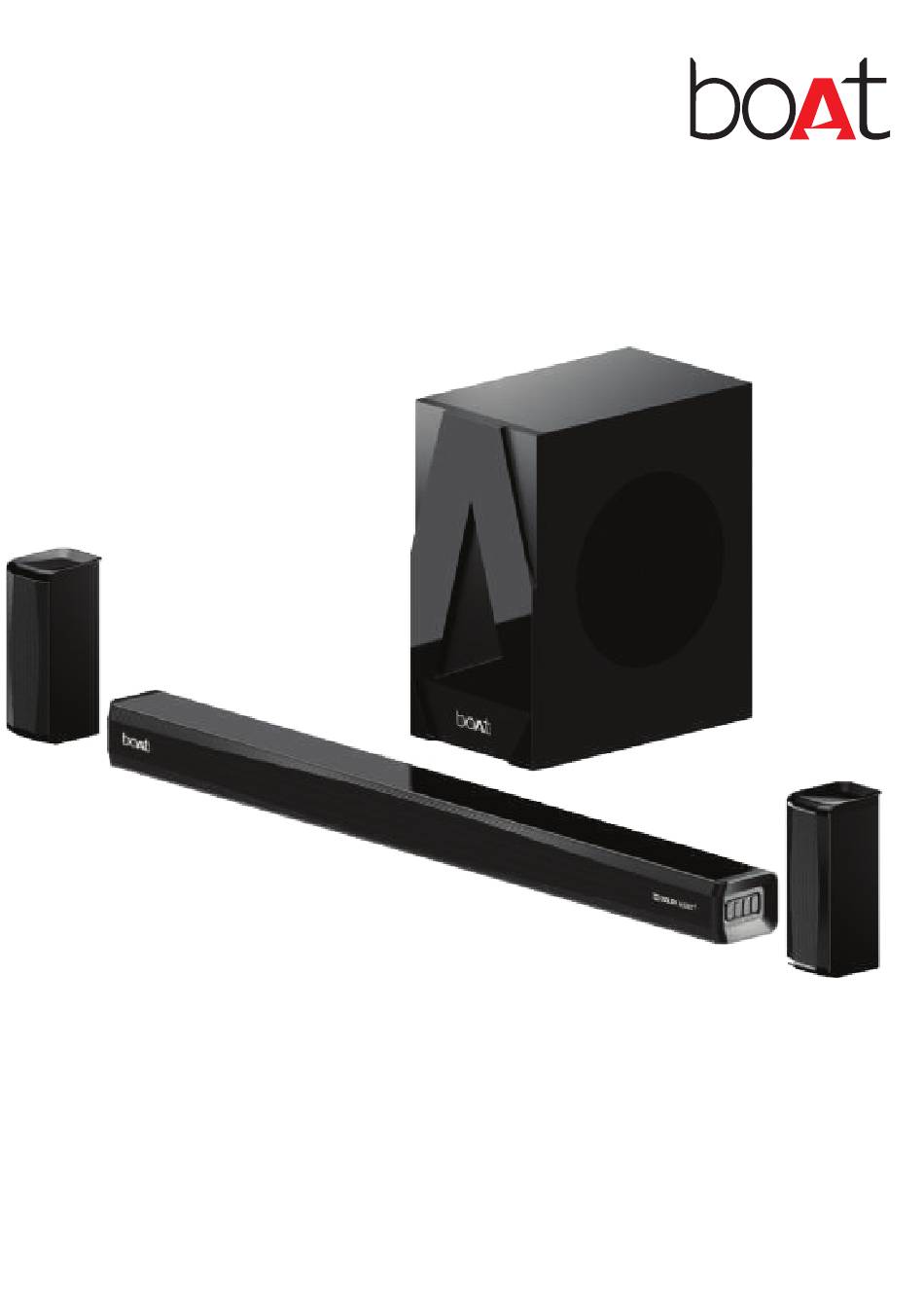

- Page 1 USER MANUAL AAVANTE BAR 5400D 5.1CH Dolby Audio home theater system Soundbar...
-
Page 2: What's In The Box
USER MANUAL Thank you for choosing Aavante Bar 5400D. You are now just a step away from the realm of pure audio bliss. With the Aavante Bar 5400D, experience immersive, cinematic audio on a whole new level at home. Stay plugged into the sound with an array of wired connections, USB, and Bluetooth wireless technology. -
Page 3: Safety And Warnings
SAFETY & WARNINGS Caution To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings. 2. Do not use this apparatus near water. 3. Clean only with dry cloth. 4. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
-
Page 5: Protect Your Furniture
PREPARATION FOR USE UNPACKING AND SET UP: • Remove the Sound bar from the carton and remove all packing material from the Sound bar. Save the packing material, if possible, in case the Sound bar ever needs to be serviced or transported. The original carton and packing material is the only safe way to pack your Sound bar to protect it from damage in transit. -
Page 6: Product Diagram
PRODUCT DIAGRAM Sound bar (1) LED Display (4) Optical (7) Power/Standby (10) Vol+ (2) USB (5) HDMI(arc) (8) Input (3) Line in(aux) (6) AC in (9) Vol- Wired subwoofer (1) LED indicator: It indicates pairing between the soundbar and the subwoofer. (2) PAIR: It automatically pairs the soundbar with subwoofer. - Page 7 Wireless Surround Speakers (1) Wireless Surround SL or SR out (wireless surround Channel is fixed, when end user's power socket position isn't matched, please press switch button from bottom of surround speaker to exchange channel position.) (2) Wireless surround SL channel LED light (3) LED indicator: Indicates the pairing between soundbar and wireless surround speaker (4) For update only (for software upgrade only)
-
Page 8: Remote Control Overview
REMOTE CONTROL OVERVIEW Standby mode for power on/off. 2. PAIR: Connect or discunnect to the pairing device. (Press the button more than 2 seconds). Short press the light effect mode button to switch the light effectiveness 4. TR - : Treble volume down. 5. - Page 9 POSITIONING THE SOUND BAR PLACE ON A FLAT SURFACE Place the sound bar horizontally on a at surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Don’t place inside a cabinet or an a walled shelf.
-
Page 10: Wall Mounting Instructions
WALL MOUNTING INSTRUCTIONS (SURROUND SPEAKERS) 1. Make 2 holes on the wall that are the same distance apart as the wall bracket holes on the soundbar 2. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way, make sure to leave some space 3. - Page 11 FOLLOW BELOW STEPS TO MOUNT THE SURROUND SPEAKER ON THE WALL 1. Make 2 holes on the wall with distance of two surround speakers you needed. 2. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way make sure leave some space 3.
-
Page 12: Powering On/Off
OPERATE INSTRUCTIONS SETTING THE SOUNDBAR 1. Plug in the power cord and the display will light up (Standby mode) 2. Switch on the sound bar by pressing “STANDBY” button on sound bar or on remote controller. After switching on, the default input mode will appear on display. 3. - Page 13 PAIR UP WITH THE SURROUND 1. Plug the soundbar into the main socket and press "POWER/STANDBY" to turn on the soundbar, then press" "INPUT" on the soundbar to switch to the bluetooth (BT) mode. 2. Power on rear surrond speakers. The blue LED indicator on the surround will blink slowly which indicates entering into pairing mode between soundbar and the wireless surround.
-
Page 14: Pair Up With The Subwoofer
4. The units will now be able to pair automatically after this initial successful pair, even if they are switched off and on. 5. If you want to pair your AAVANTE BAR 5400D wireless subwoofer with another AAVANTE BAR 5400D soundbar, please repeat step 1 to step 4 above. - Page 15 2. Activate the pairing function on your phone or other compatible device and select “AAVANTE BAR 5400D ” by BT connection. 3. When successfully paired, you will hear a tone and LED display will turn on “ ”and stop flickering. Then music that you selected can be played on the sound bar.
- Page 16 PLAYING AUDIO VIA USB PORT The sound bar automatically switches to USB input mode with the LED display when a USB flash drive is inserted (this mode isn't selectable on the sound bar or remote control unless a USB flash drive is connected). 1.
- Page 17 AUDIO INPUT(AUX)CONNECTION 1. Firstly connect the soundbar to your PC, laptop, smart-phone, TV, or other audio devices by using an AUX cable provided. Make sure that these devices have both AUX IN and AUX OUT terminals. 2. Then press the INPUT button on remote control or soundbar to switch the soundbar to Aux mode, once the soundbar is connected in Aux mode, the screen will display "...
-
Page 18: Optical Mode
3. When HDMI (ARC) is connected, TV sound setting in “sound output” mode should be set as <external Dolby or Auto mode>, in addition, digital audio output mode should be set as <automatic> or <decoded output as Dolby>. When the HDMI (ARC) cable is connected, the TV digital audio output is set as Dolby or Auto mode. -
Page 19: Troubleshooting
7. You can also change the audio settings by using the relevant buttons on the remote control. Note: 1. When connecting a device such as a TV/Set-top box/ DVD/ game console with optical cable, set the audio output mode of the device to Dolby or Auto mode (digital optical output). - Page 20 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION The sound is distort- volume If you play audio from TV muted. through the sound bar, make ed or echoed. sure that the TV is muted. The volume decreas- The automatic volume Turn up the volume as required. es when the unit is adjustment function is turned...
- Page 21 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Bluetooth function of Restart the sound bar and try pairing again. You have not device activated, not paired enabled the Bluetooth function or connected correct- of the device; see the user manual of the device on how to enable function correctly connected the device.
- Page 22 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Sound quality Bluetooth Move the device closer to the sound bar, or remove any audio play from a reception is poor. connected Bluetooth obstacle between the device device is poor and and the sound bar. connection stable.
- Page 23 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION There is no sound Incorrect HDMI cable 1. Make sure that the user is used causing no connected TV and sound bar from sound bar - HDMI (ARC) signal to be sent to by a 19-core HD ARC cable. Mode soundbar.
-
Page 24: Technical Specifications
2: power off and on for sound- bar and rear active speaker again. TECHNICAL SPECIFICATIONS Model boAt AAVANTE BAR 5400D Technology BT/AUX/HDMI (ARC)/OPT/USB Drivers 50X90'*3+52X75‘*2+ 8' X1 Audio Output Power 50W*5+120W=370W R.M.S. Frequency Response...
