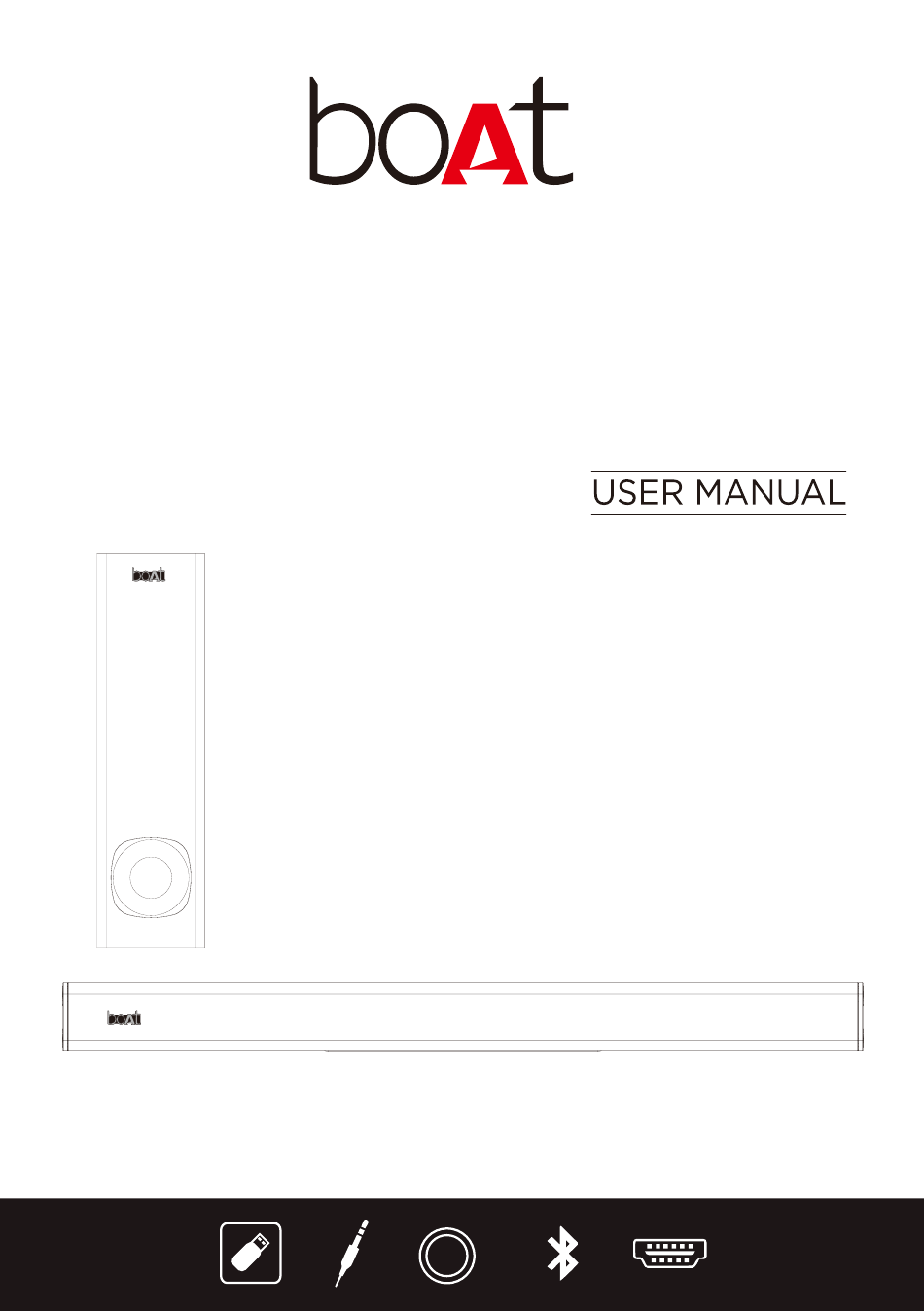

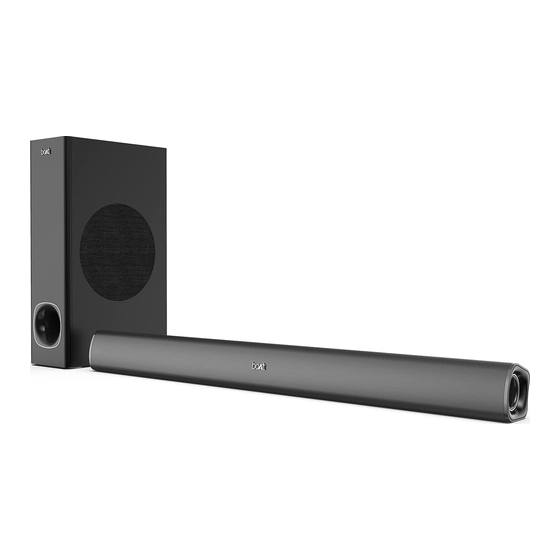

- Page 1 Model No.: Aavante Bar 1200N 2.1CH Wired Subwoofer Soundbar with HDMI...
-
Page 2: Important Safety Instruction
Important Safety Instruction Thank you for purchasing the home theater Aavante Bar 1200N. Please read this user manual carefully and keep for future reference. Warning Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. -
Page 3: Important Safety Instructions
6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit. 7. - Page 4 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damage in any way, for example, when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 5: Important Notes
Important Notes • This soundbar was especially developed for LED/LCD/Plasma TV's: It should not be used in combination with CRTTV's (Cathode Ray Tube TV's) in order to avoid image interference. • Safety and operating instruction manual should be retained for future reference. •... - Page 6 Product Diagram 2 3 4 5 7 8 9 10 1. DISPLAY 2. STANDBY/POWER 3. INPUT 4. VOL- 5. VOL+ 6. SUB OUT 7. USB 8. AUX 9. Optical 10.HDMI(ARC) 11. AC IN 12. SW SPEAKER OUTPUT...
-
Page 7: Remote Control
Remote Control 2. PAIR: Connect or disconnect to the pairing device. (Press the button more than 2 seconds). 3. Volume+: Master volume up : Pre button: Previous program (Only work under USB & BT Mode). 5. Volume - : Master volume down 7. - Page 8 Mount on the wall WARNING: If you don’t feel confident to correctly and securely wall-mount the soundbar, Seek the assistance of an experienced person or professional. Install the speaker on a vertical, secure, reinforced area of wall. For plaster walls, it is recommended to screw into wall studs for greater security.
-
Page 9: Auto Standby
OPERATING INSTRUCTIONS Setting the Soundbar 1: Plug the power cord into the mains, the display should light up. 2: Switch the soundbar on by pressing the power button on the soundbar or the STANDBY button on the remote. The default input mode will appear on the display after being switched on. 3: Select the input mode by pressing the power button again or by pressing the INPUT button on the remote. - Page 10 1. Turn on sound bar and then short-press the multi-function button to switch to BT mode 2. Activate the pairing function on your phone or other compatible device and select“ Aavante Bar 1200N ” 3. When successfully paired, you will hear a tone and the LED Display will stay on 4.
-
Page 11: Optical Mode
Audio input(Aux)Connection 1. Firstly connect the soundbar to your PC, laptop, smart-phone, TV, or other audio devices by using an AUX cable provided. Make sure that these devices have both AUX IN and AUX out terminals. 2. Then press the STANDBY button or INPUT button on remote control to switch the soundbar to Aux mode, once the soundbar is connected in Aux mode, the screen will display "... - Page 12 HDMI (ARC) Mode 1. The soundbar supports HDMI (ARC) with audio return channel (ARC). You can hear the TV audio through your soundbar by using a single HDMI (ARC) cable. But on condition that your TV is ARC compliant. 2. Using a high speed HDMI (ARC) cable, connect the HDMI (ARC) connector on the soundbar to the HDMI (ARC) connector on the TV.
- Page 13 POSSIBLE CAUSE SOLUTION PROBLEM/TROUBLE Another input source is selected. Select an appropriate input source. Cancel the mute function. The mute function is activated. The volume of sound bar or TV/other device Increase the volume level on sound bar or is adjusted too low. by remote control or on TV.
- Page 14 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Sound quality of audio Move the device closer to the sound bar, play from a connected or remove any obstacle between the device and The Bluetooth reception is poor. Bluetooth device is the sound bar. poor and connection is not stable.
-
Page 15: Specifications
Specifications Model Aavante Bar 1200N Technology BT/AUX/HDMI (ARC)/OPTICAL/USB Drivers 55*85*2 SB + 5.25inch SW Audio Output Power 20W*2+60W=100W R.M.S. Frequency Response 55Hz-20KHz Signal-to-Noise Ratio 66dB lmpedance 8Ω*2+4Ω Power lnput AC 110V-240V 50/60Hz bluetooth Version Version: 5.0 Range:up to 10m Sound bar:73H*60D*860L mm...
