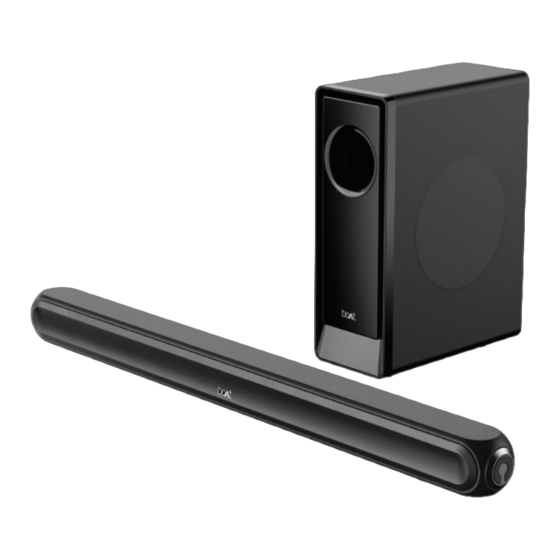

boAt AAVANTE BAR 1650D User Manual

2.1ch dolby sound bar
Hide thumbs

Advertisement

Quick Links

Download this manual

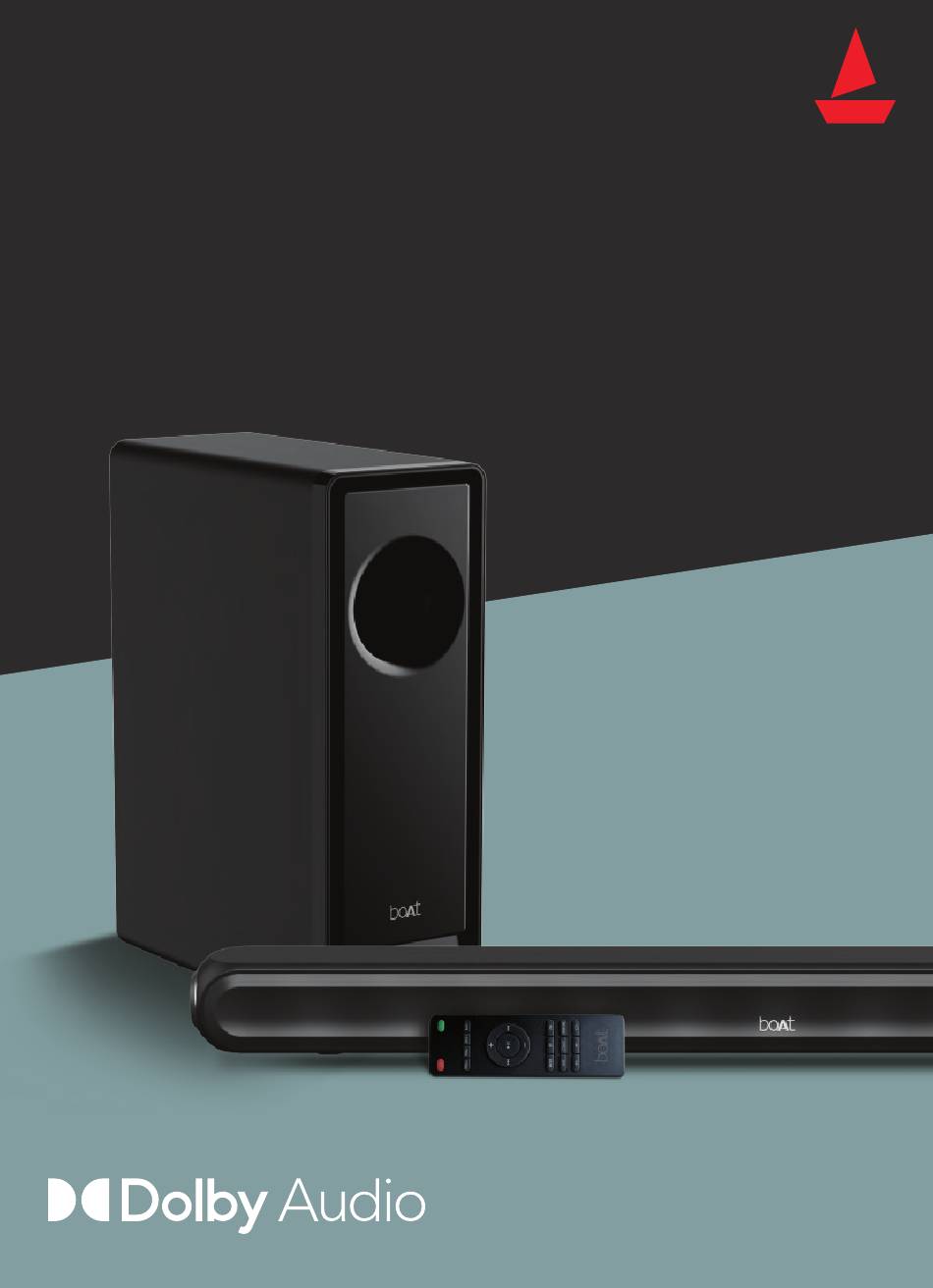

AAVANTE BAR
1650D
RAISE THE BAR
2.1CH Dolby
sound bar
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the AAVANTE BAR 1650D and is the answer not in the manual?

Questions and answers

Bharath.R
February 12, 2025

Remote is not working

0

Subscribe to Our Youtube Channel

Related Manuals for boAt AAVANTE BAR 1650D

Summary of Contents for boAt AAVANTE BAR 1650D

  • Page 1 AAVANTE BAR 1650D RAISE THE BAR 2.1CH Dolby sound bar USER MANUAL...
  • Page 2 AAVANTE BAR 1650D 2.1CH Dolby sound bar A compact yet powerful Bluetooth sound- bar with sleek looks and excellent audio response. 4 inbuilt speakers with 1 wired subwoofer provide clarity across a broad frequency range, with crisp highs and deep bass. An...
  • Page 3 PACKAGE CONTAINS: 1N Aavante Bar 1650D 1N User Manual 1N Aux in Cable 1N Warranty Card 1N Remote 1N Screws for wall mount 1N Power Cable 1N Catalogue • Slender and stylish design • 4 inbuilt speakers for crisp, clear sound with deep bass •...

  • Page 4: Technical Specifications And Features

    TECHNICAL SPECIFICATIONS AND FEATURES Output Power RMS 120W Speaker drivers 4 x 2.25" 15W units + 1 x 6.5" 60W subwoofer units Frequency 45Hz~20KHz >=80dB Bluetooth version 5.0+EDR Bluetooth range Up to 10m Connections HDMI(ARC) ,Optical, Coaxial ,AUX in,USB 2.0 Power supply Soundbar: AC In 110-240V,50/60Hz Subwoofer: AC In 110-240V,50Hz/60Hz...
  • Page 5 CONNECTIONS 1.HDMI(ARC): Use to connect compatible devices using a HDMI cable (not provided). 2. OPTICAL IN: Use to connect compatible devices using an optical cable (not provided). 3.COAXIAL IN: Use to connect compatible devices using a coaxial cable (not provided). 4.
  • Page 6 SOUNDBAR CONTROL 1 (M) ： Press to select your preferred input mode (HDMI(ARC)/BT/OPTICAL/COAXIAL/AUX/USB). 2 (BT) :Press to switch BT Pairing Mode,hold for 3S to disconnect,and go to pairing mode. 3 (-) :Lower volume button 4 (+) :Increase volume button 5 ( ) :Play/Pause. 6 ( ) :Short press to turn on, long press to turn off.

  • Page 7: Remote Control

    REMOTE CONTROL Button Function Power on/off Mute or recover the volume Treble+ Increase the Treble Treble- Decrease the Treble Bass+ Increase the Bass Bass- Decrease the Bass Volume turning up Volume turning down Previous track Pause/Play Next track Mode Shifting between BT/USB/ AUX/OPT/COAX/HDMI(ARC) Shifting into BT Mode Shifting into USB Mode...

  • Page 8: Led Display

    LED DISPLAY 1. Red LED: Standby mode 2. bt: Bluetooth mode 3. USB: USB media mode 4. AUX: Auxiliary input mode 5. OPT:Optical mode 6. COA:Coaxial mode 7. ARC:HDMI(ARC)mode INPUT FUNCTIONS • Power on/off: Press the Power on/off button on the remote control or soundbar control panel to turn the unit on and off.
  • Page 9 Bluetooth pairing mode. Ensure that the device you wish to connect is also in pairing mode and search for Aavante Bar 1650D in its device list. When the two devices are paired, the LED display on the soundbar will stop flashing and remain constant.
  • Page 11 Note: Adjust the TV to PCM audio output format,when your TV is playing non-Dolby video;otherwise ,adjust it back to original audio format,when playing Dolby Digital video. • Equalizer modes: The soundbar has 3 equalizer presets, tailored to complement various styles of music. Press the EQ button on the remote to choose between Music (EQ1), Movie(EQ2), News (EQ3).
  • Page 12 AAVANTE BAR 1650D RAISE THE BAR...
