USER MANUAL
AAVANTE BAR
1150D
2.0 CHANNEL 80W RMS Dolby Sound Bar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AAVANTE BAR 1150D and is the answer not in the manual?

Questions and answers

Related Manuals for boAt AAVANTE BAR 1150D

Summary of Contents for boAt AAVANTE BAR 1150D

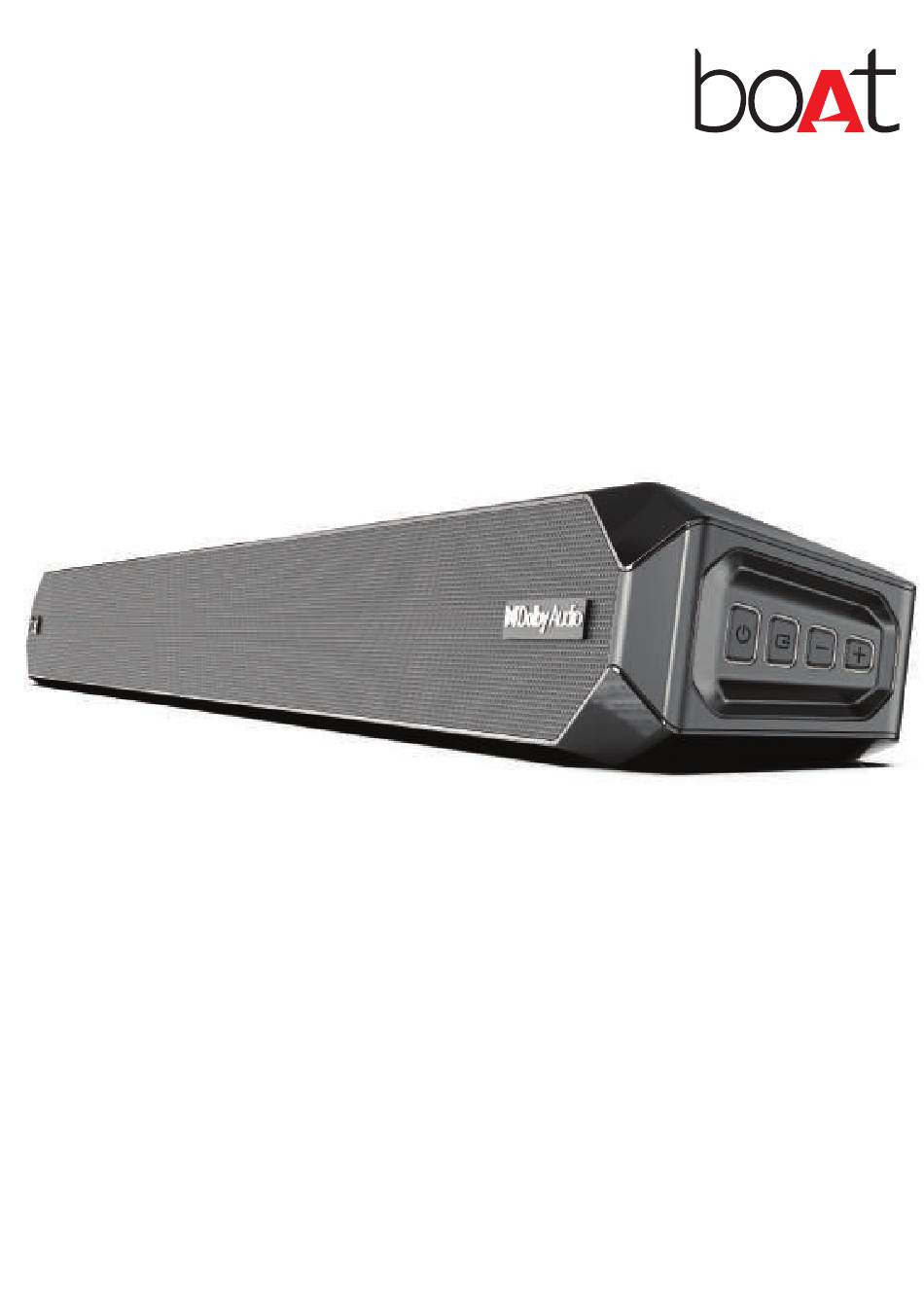

  • Page 1 USER MANUAL AAVANTE BAR 1150D 2.0 CHANNEL 80W RMS Dolby Sound Bar...

  • Page 2: Components List

    Thank you for choosing the boAt Aavante Bar 1150D as the audio source for your home. Discover a new level of immersive, cinematic audio experi- ence at home with the boat Aavante Bar 1150D. With a powerful 80W RMS total output, this sound bar brings every aspect of your entertainment be it a song, show or movie to life.

  • Page 3: Safety And Warnings

    SAFETY & WARNINGS Caution To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. The unit has no user-serviceable parts inside. Refer servicing to qualified personnel only The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

  • Page 4: Important Safety Instructions

    12. Do not place this unit in a damp area as the moisture will affect the life of electric components. 13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth. 14.

  • Page 5: Preparation For Use

    PREPARATION FOR USE Unpacking and Set Up •Remove the Soundbar from the carton and remove all packing material from the Soundbar. Save the packing material, if possible, in case the Soundbar ever needs to be serviced or transported. The original carton and packing material is the only safe way to pack your Soundbar to protect it from damage in transit.

  • Page 6: Product Diagram

    PRODUCT DIAGRAM 2 3 4 1. DISPLAY 6. AC IN 2. USB 7. STANDBY/POWER 3. AUX 8. INPUT 4. OPTICAL 9.VOL- 5. HDMI(ARC) 10. VOL+ 8 9 10 Button Function Standby mode for power on/off. PAIR Connect or disconnect to the pairing device. (Press the button more than 2 secs).

  • Page 7: Positioning The Soundbar

    POSITIONING THE SOUNDBAR Positioning the Soundbar • Place the soundbar horizontally on a solid surface such as a TV unit or shelves and align it centrally with the TV screen. • For best sound output and good airflow around the soundbar, place your soundbar and subwoofer as shown on the right.
  • Page 8 FOLLOW THE STEPS BELOW TO MOUNT THE SOUNDBAR ON THE WALL 1. Make 2 holes on the wall that are the same distance apart as the wall bracket holes on the soundbar 2. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way, make sure to leave some space 3.

  • Page 9: Auto Standby

    1. Turn on sound bar and then short-press the Input button to switch to BT mode. 2. Activate the pairing function on your phone or other compatible device and select “AAVANTE BAR 1150D”. 3. When successfully paired, you will hear a tone and the LED Display will stay on.
  • Page 10 once you re-enter wireless range (10 meters). To connect to other devices, repeat the above pairing steps. • There is no automatic shutdown in pairing mode. The sound bar will remain in pairing mode even if no device is paired, so switch off if not in use. Playing Audio via USB Port - The soundbar automatically switches to USB input mode with the LED display “...
  • Page 11 Optical Mode -Remove the cap of optical cable (keep the cap for the future use); check the direction of the plug. Connect the soundbar and TV with the optical cable. -Use this mode to play music from a TV with optical digital output on the sound bar. In TV sound settings, select the soundbar optical connection (output for audio).

  • Page 12: Troubleshooting

    6. You can also change the audio settings by using the relevant buttons on the remote control. Note: 1. When connecting a device such as a TV/Set-top box/DVD/ game console with HDMI (ARC) cable, set the audio output mode of the device to Dolby or Auto mode <digital HDMI (ARC) output>.
  • Page 13 PROBLEM/ POSSIBLE CAUSE SOLUTION TROUBLE The volume The automatic volume adjustment Turn up the volume as required. decreases when function is activated. To prevent excessive loudness, the unit the unit is turned automatically controlls its volume within a certain level when the unit is turned on.
  • Page 14 PROBLEM/ POSSIBLE CAUSE SOLUTION TROUBLE Sound quality of audio play from a The Bluetooth reception is poor. Move the device closer to the sound bar, or connected remove any obstacle between the device Bluetooth device and the sound bar. is poor and connection is not stable.

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Model boAt AAVANTE BAR 1150D Technology BT/AUX/HDMI (ARC)/OPT/USB Drivers 5.5*8.5cm*2+2.25inch*2 Audio Output Power 40W*2=80W R.M.S Frequency Response 55Hz-20KHz Signal-to-Noise Ratio 60dB Impedance 3Ω*4 Power lnput AC 110V-240V 50/60Hz BT Transmission Range Up to 10m Bluetooth Version Version: 5.0 Dimensions 72H*87.5D*900L mm...
