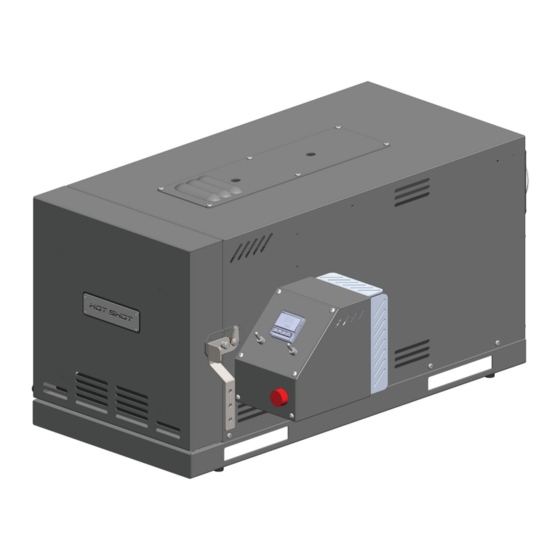

SPECIFICATIONS
Max Temperature
Max Temperature
Input Voltage
Input Voltage
Hz
Hz
Amp Circuit Required
Amp Circuit Required
Power
Power
Controller
Controller
Volume
Volume
Internal Dimensions
Internal Dimensions
Max Ambient Temperature
Max Ambient Temperature
2200°F (1204°C)
240V
60
20 Amp
4000W
Novus N20K48
1344 in³
8" wide x 7" tall x 24" deep
95°F (35°C)
HS-24K-240 USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS-24K-240 and is the answer not in the manual?

Questions and answers

Related Manuals for Hot Shot HS-24K-240

Summary of Contents for Hot Shot HS-24K-240

  • Page 1 HS-24K-240 USER MANUAL SPECIFICATIONS Max Temperature Max Temperature 2200°F (1204°C) Input Voltage Input Voltage 240V Amp Circuit Required Amp Circuit Required 20 Amp Power Power 4000W Controller Controller Novus N20K48 1344 in³ Volume Volume Internal Dimensions Internal Dimensions 8” wide x 7” tall x 24” deep...

  • Page 2: Important Safeguards

    The Hot Shot Oven is a state of the art, table-top, heat treating oven capable of reaching and holding temperatures up 2200°F. Heat Treating Ovens can be used to heat such things as glass, cylinder heads, welded and carbon steel joints, pumps, various mechanical plates, ceramics, etc.
  • Page 3 Hot Shot Oven & Kiln at 2305 Stonebridge Rd, West Bend, WI 53095. If, after factory examination, the original part is found to be defective, a new or repaired part will be shipped prepaid by Hot Shot Oven & Kiln. If the entire oven is to be returned to the factory, all transportation costs will be done by the purchaser.

  • Page 4: Safety Recommendations

    Avoid blocking the thermocouple from the sides, particularly both sides at once. WARNING: WARNING: This product can expose you to chemicals including chromium, which is know to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Hot Shot HS-24K-240 User Manual R1.0 | 4...
  • Page 5 HOT SHOT 24K ELECTRICAL FEATURES HOT SHOT 24K PERFORMANCE FEATURES • Novus N20K48 controller. • The Hot Shot oven is equipped with Cool-Touch Technology (patent pending). This provides • Available Bluetooth with mobile app. a safe external temperature to allow for safer •...
  • Page 6 This is normal. underlying file system. This is normal. Hot Shot HS-24K-240 User Manual R1.0 | 6...
  • Page 7 400°F for 30 minutes 800°F for 45 minutes 1200°F for 60 minutes 1600°F for 60 minutes 1800°F for 60 minutes PSP - Set Point Temp PT - Ramp/Soak Time PE - Event Alarm Hot Shot HS-24K-240 User Manual R1.0 | 7...
  • Page 8 Press the “P” button one time the oven. until “PE1” appears. If an alarm is until “PSP1” appears. This will be desired in this segment, set to “1. ” the second setpoint temp of the program. Hot Shot HS-24K-240 User Manual R1.0 | 8...
  • Page 9 When the sure it is set to “YES. ” Heat Enable switch is turned on the oven will ramp to the setpoint and hold until the oven is shut off. Hot Shot HS-24K-240 User Manual R1.0 | 9...
  • Page 10 “Send to Device. ” “The programming back into the you can create and edit Ramp/ configuration was successful” will controller. Hold programs. See example appear when the data transfer is program on page 7. complete. Hot Shot HS-24K-240 User Manual R1.0 | 10...
