SPECIFICATIONS
Max Temperature
Max Temperature
Input Voltage
Input Voltage
Hz
Hz
Amp Circuit Required
Amp Circuit Required
Power
Power
Controller
Controller
Volume
Volume
Internal Dimensions
Internal Dimensions
Max Ambient Temperature
Max Ambient Temperature
1700°F (927°C)
120V
60
15 Amp
1800W
TAP Programming
1536 in³
16" wide x 6" tall x 16" deep
95°F (35°C)
HS-16G-PRO-120 USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS-16G-PRO-120 and is the answer not in the manual?

Questions and answers

Related Manuals for Hot Shot HS-16G-PRO-120

Summary of Contents for Hot Shot HS-16G-PRO-120

  • Page 1 HS-16G-PRO-120 USER MANUAL SPECIFICATIONS Max Temperature Max Temperature 1700°F (927°C) Input Voltage Input Voltage 120V Amp Circuit Required Amp Circuit Required 15 Amp Power Power 1800W Controller Controller TAP Programming 1536 in³ Volume Volume Internal Dimensions Internal Dimensions 16” wide x 6” tall x 16” deep...

  • Page 2: Important Safeguards

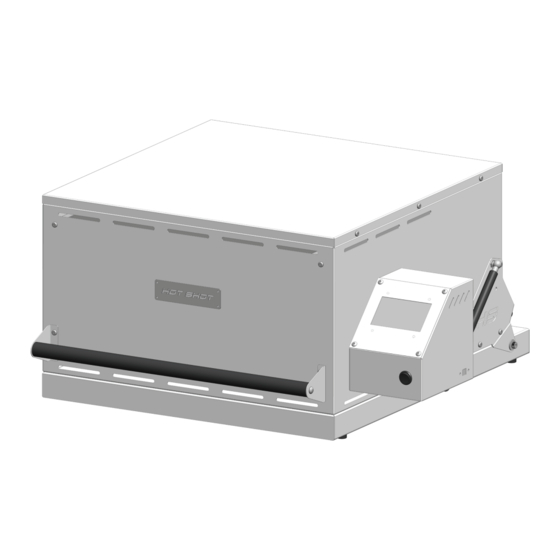

    The Hot Shot Oven is a state of the art, table-top, heat treating oven capable of reaching and holding temperatures up 1700°F. Heat Treating Ovens can be used to heat such things as glass, cylinder heads, welded and carbon steel joints, pumps, various mechanical plates, ceramics, etc.
  • Page 3 Hot Shot Oven & Kiln at 2305 Stonebridge Rd, West Bend, WI 53095. If, after factory examination, the original part is found to be defective, a new or repaired part will be shipped prepaid by Hot Shot Oven & Kiln. If the entire oven is to be returned to the factory, all transportation costs will be done by the purchaser.

  • Page 4: Safety Recommendations

    14. The thermocouple works best if its not crowded against your work. Give it as much room as practically possible. Avoid blocking the thermocouple from the sides, particularly both sides at once. Hot Shot HS-16G-PRO-120 User Manual R1.1 | 4...
  • Page 5 • TAP 4.3” color touch screen controller. Performance Features Performance Features • The Hot Shot oven is equipped with Cool-Touch • Available wifi with mobile app. Technology (patent pending). This provides • 40 amp rated SSR with convection heat sink.
  • Page 6 This is normal. underlying file system. This is normal. Hot Shot HS-16G-PRO-120 User Manual R1.1 | 6...
  • Page 7 “ENTER” Search for TAP Kiln Control TAP Kiln Control networks should appear. Select Mobile Mobile (iOS or Android) for remote the appropriate network and press monitoring or programming “CONNECT TO NETWORK” Hot Shot HS-16G-PRO-120 User Manual R1.1 | 7...
  • Page 8 The oven will start, and the run screen will be displayed Example Schedule: Example Schedule: 400°F for 30 minutes 800°F for 45 minutes 1200°F for 60 minutes 1600°F for 60 minutes 1800°F for 60 minutes Hot Shot HS-16G-PRO-120 User Manual R1.1 | 8...
  • Page 9 • Delete schedules • Change display brightness • Change time format (12h or 24h) • Change date & time • Change Units (°F or °C) • Add Cost per Kwh for firing Hot Shot HS-16G-PRO-120 User Manual R1.1 | 9...
