SPECIFICATIONS
Max Temperature
Input Voltage
Hz
Amp Circuit Required
Power
Controller
Volume
Internal Dimensions
Max Ambient Temperature
HS-24K-PRO 240 USER MANUAL
2200°F (1204°C)
240V
60
20 Amp
4000W
TAP Touch Screen
1536 in³
8" wide x 7" tall x 24" deep
95°F (35°C)
Advertisement
Related Manuals for Hot Shot HS-24K-PRO 240
Summary of Contents for Hot Shot HS-24K-PRO 240
- Page 1 HS-24K-PRO 240 USER MANUAL SPECIFICATIONS Max Temperature 2200°F (1204°C) Input Voltage 240V Amp Circuit Required 20 Amp Power 4000W Controller TAP Touch Screen Volume 1536 in³ Internal Dimensions 8” wide x 7” tall x 24” deep Max Ambient Temperature 95°F (35°C)
-
Page 2: Important Safeguards

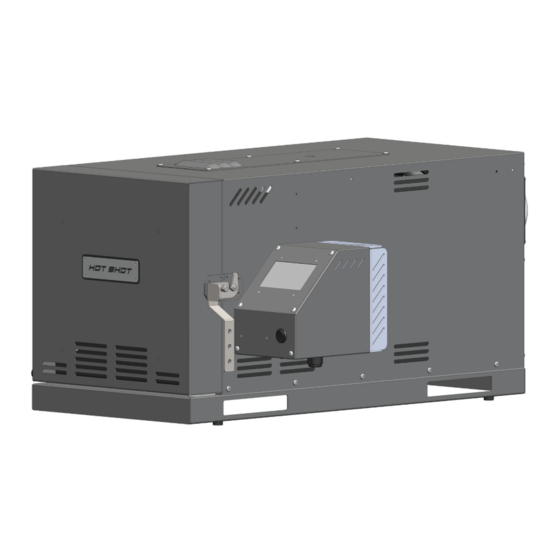

The Hot Shot Oven is a state of the art, table-top, heat treating oven capable of reaching and holding temperatures up 2200°F. Heat Treating Ovens can be used to heat such things as glass, cylinder heads, welded and carbon steel joints, pumps, various mechanical plates, ceramics, etc. - Page 3 Hot Shot Oven & Kiln at 2305 Stonebridge Rd, West Bend, WI 53095. If, after factory examination, the original part is found to be defective, a new or repaired part will be shipped prepaid by Hot Shot Oven & Kiln. If the entire oven is to be returned to the factory, all transportation costs will be done by the purchaser.
-
Page 4: Safety Recommendations
Avoid blocking the thermocouple from the sides, particularly both sides at once. WARNING: WARNING: This product can expose you to chemicals including chromium, which is know to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Hot Shot HS-24K-PRO 240 User Manual R1.0 | 4... - Page 5 • 16 Gauge powder coated core construction. • Powder coated exterior shell. • Two-inch Kaowool insulation in door. • Kanthal A-1 heating element. • 7”H x 8”W x 24”D working chamber/ 1536 cu-in. manual reset programmable controller Hot Shot HS-24K-PRO 240 User Manual R1.0 | 5...
- Page 6 This is normal. underlying file system. This is normal. Hot Shot HS-24K-PRO 240 User Manual R1.0 | 6...
- Page 7 “ENTER” Search for TAP Kiln Control TAP Kiln Control networks should appear. Select Mobile Mobile (iOS or Android) for remote the appropriate network and press monitoring or programming “CONNECT TO NETWORK” Hot Shot HS-24K-PRO 240 User Manual R1.0 | 7...
- Page 8 Do not open the door or unplug the oven during this first heating/cooling cycle. After break-in, the door can be opened while in process to load/unload parts. Hot Shot HS-24K-PRO 240 User Manual R1.0 | 8...
- Page 9 Delete schedules • Change display brightness • Change time format (12h or 24h) • Change date & time • Change Units (°F or °C) • Add Cost per Kwh for firing Hot Shot HS-24K-PRO 240 User Manual R1.0 | 9...
