VIVE Wrist Tracker User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vive and is the answer not in the manual?

Questions and answers

Related Manuals for HTC vive

Summary of Contents for HTC vive

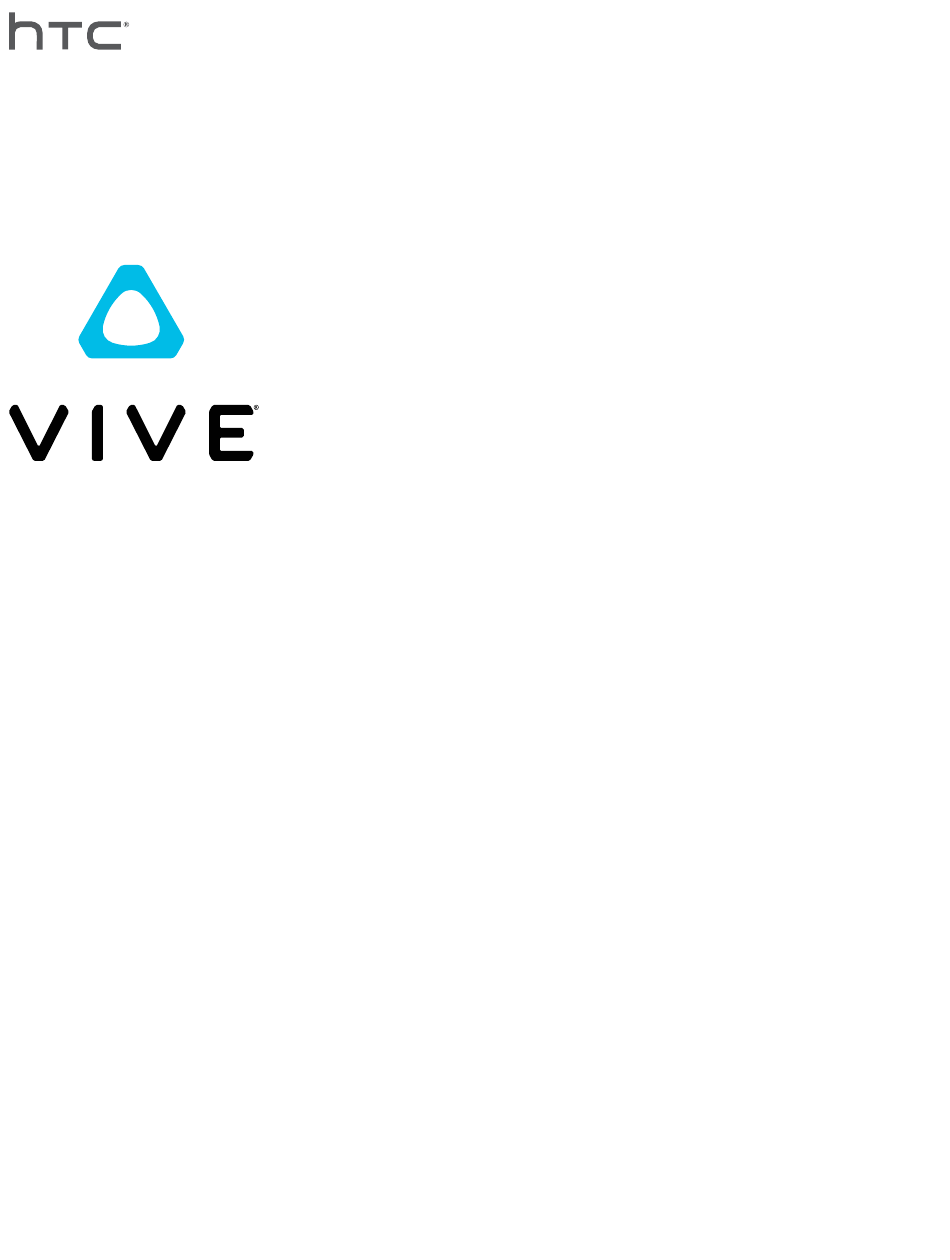

  • Page 1 VIVE Wrist Tracker User Guide...

  • Page 2: Table Of Contents

    Troubleshooting VIVE Wrist Tracker Why does VIVE Wrist Tracker automatically turn off? Why can't I switch to the trackers in my VIVE Focus 3? Can I use more than one tracker at the same time? Can I use a tracker and a controller at the same time?
  • Page 3 About this guide About this guide The following symbols indicate useful and important information. Notes provide details on setup, answers to common questions, and information on what to do in specific situations. Tips provide supplemental information or alternative methods you may find helpful for particular steps or procedures.

  • Page 4: Introduction

    Wrist Tracker can be used for object tracking. When attached to an object, VIVE Wrist Tracker provides VIVE Focus 3 with a 6-DoF object pose estimation of the object in VR. VIVE Wrist Tracker can also upgrade any 3 DoF device (such as a VR controller) to 6 DoF, giving you more freedom to explore and interact with your VR environment.

  • Page 5: Components

    Status LEDs USB Type-C charging port Power button Detachable wrist strap App button Status LEDs The VIVE Wrist Tracker LEDs indicate the status of the tracker and which side it's paired on. Status LED behavior Low battery Blinks red Charging...

  • Page 6: Basics

    Charging VIVE Wrist Tracker Charge VIVE Wrist Tracker using the USB Type-C cable that came in the box. To charge VIVE Wrist Tracker, connect one end of the USB Type-C charging cable to the tracker and the other end to a power source.

  • Page 7: Wearing Vive Wrist Tracker

    Wearing VIVE Wrist Tracker VIVE Wrist Tracker is easy to put on and comfortable to wear. Wrap VIVE Wrist Tracker around your wrist with the App button facing inward. For comfort and wrist mobility, wear the tracker above your wristbone.

  • Page 8: Turning Vive Wrist Tracker On Or Off

    § Power off: Press and hold the Power button for 5 seconds. Pairing and calibrating VIVE Wrist Tracker To get the most out of VIVE Wrist Tracker, it must be calibrated after pairing. Make sure you're wearing your headset and wrist trackers before performing the following steps.
  • Page 9 Basics Press and hold the Power button again for 2 seconds to initiate pairing mode. Both LEDs will first blink blue, and then the status LED corresponding to the tracker you're pairing will turn solid green. 2 sec When both trackers are paired, the Calibrate trackers screen will appear. If you're only pairing one tracker, select Skip after the tracker is paired to continue.

  • Page 10: Updating The Vive Wrist Tracker Firmware

    Basics Updating the VIVE Wrist Tracker firmware The firmware is updated regularly to make sure you get the best out of VIVE Wrist Tracker. Make sure the trackers you want to update are paired with VIVE Focus 3. In VIVE Focus 3, go to Settings Inputs Controllers.

  • Page 11: Replacing The Wrist Straps On Vive Wrist Tracker

    Basics Replacing the wrist straps on VIVE Wrist Tracker You can replace the wrist straps on VIVE Wrist Tracker according to your needs. The wrist straps on VIVE Wrist Tracker can be replaced easily with most wristwatch-style detachable wrist straps. You can replace the original wrist straps if they become damaged, or to improve comfort while wearing the trackers.
  • Page 12 Basics Make sure the metal pins are oriented correctly when inserting them. Reattach the screws.

  • Page 13: Solutions And Faqs

    VIVE Focus 3 can only pair up to two trackers at a time. You can use both as wrist trackers, or you can pair one as a wrist tracker and one as an object tracker. However, you cannot pair more than two trackers at a time, and you cannot pair a controller and a wrist tracker at the same time.

  • Page 14: Trademarks And Copyrights

    © 2022 HTC Corporation. All Rights Reserved. VIVE, the VIVE logo, HTC, the HTC logo, VIVEPORT, and all other HTC product and service names are trademarks and/or registered trademarks of HTC Corporation and its affiliates in the U.S. and other countries.
