PSS 5000 Series with Sentinel 7000
Self-contained breathing apparatus with electronic monitoring system
1
Safety-related information
●
Before using this product, carefully read the instructions for use.
●
Strictly follow the instructions for use. The user must fully understand
and strictly observe the instructions. Use the product only for the
purposes specified in the intended use section of this document.
●
Do not dispose of the instructions for use. Ensure that they are
retained and appropriately used by the product user
●
Only trained and competent users are permitted to use this product.
●
Comply with all local and national rules and regulations associated
with this product.
●
Only trained and competent personnel are permitted to inspect, repair,
and service the product. Dräger recommend a Dräger service contract
for all maintenance activities and that all repairs are carried out by
Dräger.
●
Use only genuine Dräger spare parts and accessories, or the
functional integrity of the product may be impaired.
●
Do not use a faulty or incomplete product, and do not modify the
product.
●
Notify Dräger in the event of any component fault or failure.
●
Use of the breathing apparatus should be consistent with NFPA 1500
– Standard on Fire Department Occupational Safety and Health
Program.
●
All approved respiratory equipment shall be selected, fitted, used, and
maintained in accordance with MSHA (Mine Safety and Health
Administration),
OSHA
(Occupational
Administration), and other applicable regulations.
●
The air supply shall meet the requirements for breathing air according
to CGA G – 7.1, Grade D or higher quality and, where appropriate, be
in accordance with: NFPA 1989 Standard on Breathing Air Quality for
Emergency Services Respiratory Protection.
●
Before occupational use of this respirator a written respiratory
protection program must be implemented meeting all the local
government requirements. In the United States employers must
comply with OSHA 29 CFR 1910.134 which includes medical
evaluation, training, and fit testing.
●
This device has been tested and complies with the FCC (Federal
Communications Commission) and IC (Industrial Commission) rules.
Changes or modifications to the product may render it non-compliant.
2
Conventions used in this document
2.1
Definitions of alert icons
Alert icons are used in this document to provide and highlight text that
requires greater awareness by the user. A definition of the meaning of
each icon is as follows:
WARNING
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could
result in physical injury. It may also be used to alert against unsafe
practices.
NOTICE
Indicates a situation which, if not avoided, could result in damage to the
product or environment.
2.2
Trademarks
®
FPS
is a registered trademark of Dräger in the United States and/or other
countries. Contact Dräger for details.
®
®
Procell
and Duracell
are registered trademarks of Duracell U.S.
Operations, Inc. in the United States and/or other countries.
®
Panasonic
is a registered trademark of Panasonic Corporation, Japan in
the United States and/or other countries.
Dow Corning
®
and Molykote
®
are registered trademarks of Dow Corning
Corporation in the United States and/or other countries.
3
Description

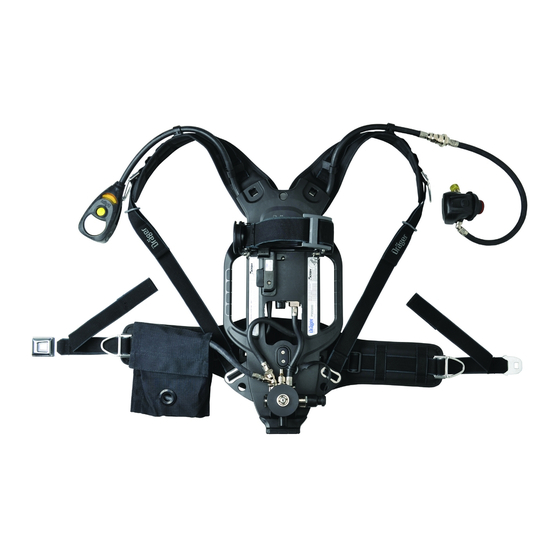

The Dräger PSS 5000 Series is a breathing apparatus that provides the
wearer with respiratory protection using an open-circuit, pressure-demand,
compressed-air system. The apparatus can be used as a self-contained
system, or with an independent air supply for supplied-air respirator (SAR)
operations. The series is compatible with Dräger compressed air cylinders
and the FPS
®
7000 face mask. The product includes the following
electronic monitoring systems:
●
A Dräger Sentinel 7000 electronic monitoring system, with integral
PASS (personal alert safety system).
●
A Dräger FPS
®
7000 wireless HUD (head-up display) unit.
3.1
Feature description
The carrying system has a carbon-composite backplate, with adjustable
shoulder harness and waist belt connected using quick release
connectors. The waist pad is connected at a flexible joint to compensate
for the twisting and bending of the user.
All variants use the same first-stage regulator (Fig A, Item 5) fitted with a
whistle that sounds at the end-of-service time (see Section 10 for the end-
of-service time indicator (EOSTI) activation pressures). The regulator
supplies medium-pressure breathing air through a medium-pressure
hose (Fig A, Item 6) and a quick coupling (Fig A, Item 2) to an attached
lung demand valve (second-stage regulator). Incorporated in the first-
stage regulator is a RIC UAC (rapid intervention crew universal air
connection) (Fig A, Item 4), which is a male coupling that allows
emergency refilling of the compressed air cylinder while wearer is
breathing from the apparatus.
The electronic system is the Sentinel 7000, which is a multi-function
system that continuously monitors the breathing apparatus status,
including cylinder pressure, movement of the wearer, and battery
condition. It provides visual indications of system status and audible and
visual alarms in warning conditions. The user interface has an electronic
LCD (liquid crystal display) screen (Fig B, Item 1), left (L) and right (R)
3367112
© Dräger Safety UK Limited
Edition 06 – January 2020 (Edition 01 – August 2017)
Subject to alteration

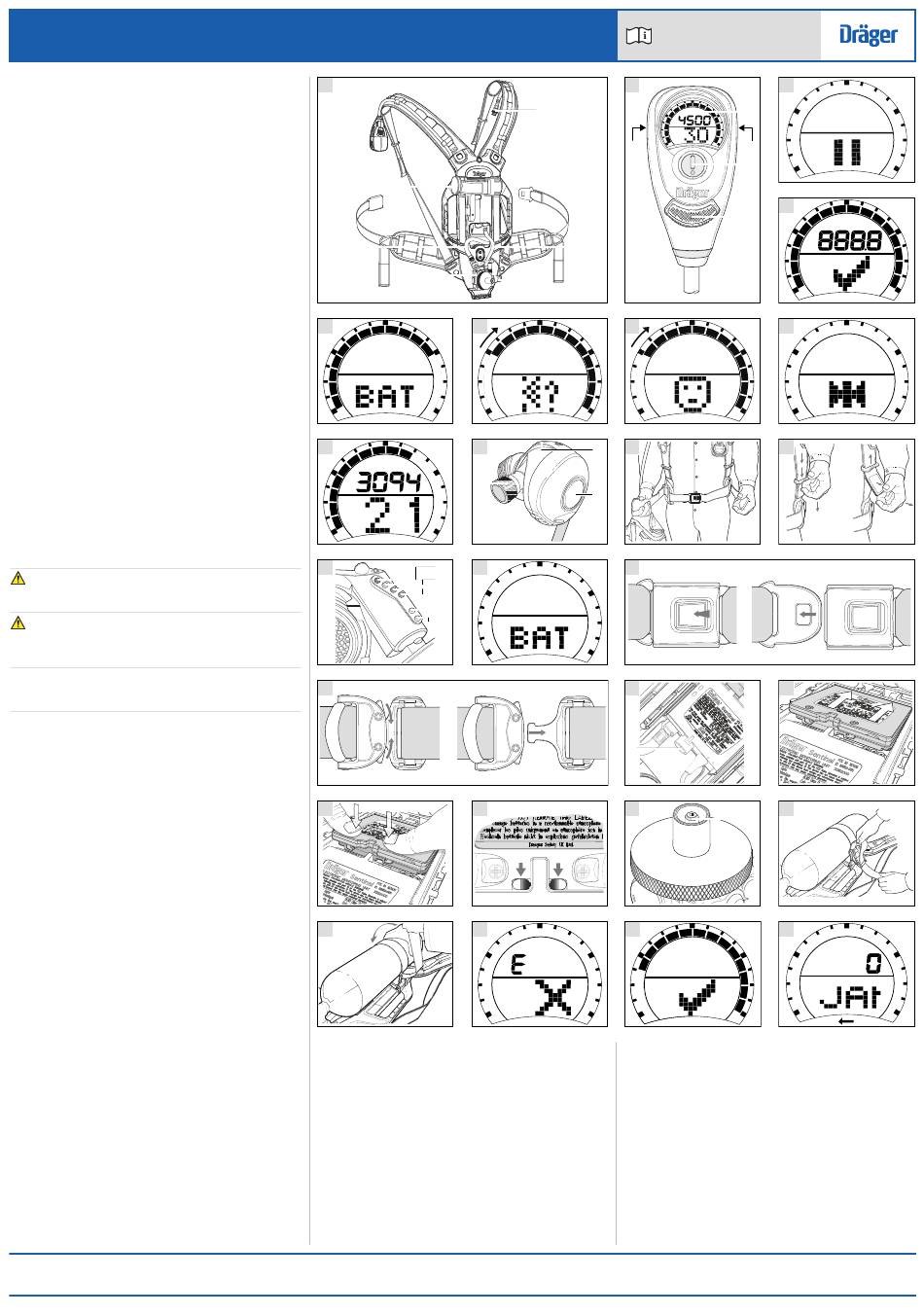

A
1
6
E
Safety
and
Health
I
psi
M
P
S
W
operating buttons, a manual alarm button (Fig B, Item 2), an LED
panel (Fig B, Item 3), and an internal alarm sounder. A backlight
illuminates the user interface display when required. An additional alarm
sounder (Fig A, Item 1), referred to as the "second sounder", is mounted
on the backplate, with warning activation LEDs top and bottom. The
second sounder operates only during PASS alarms.
Personal identity information (e.g. user name, brigade name, station
number) can be stored in the user interface memory of the Sentinel 7000.
Once stored, the information can be scrolled across the screen by pressing
the right button (Fig B) of the user interface during use.
The system is switched on by pressing the left and right buttons on the user
interface (Fig B), or by cylinder pressure detected at a pressure module in
the backplate, with pressure transmitted to the pressure module through a
high-pressure hose (Fig A, Item 3) when the cylinder is opened. At switch-
on, the unit performs a self-test (see Section 3.1.1), and once the self-test
is passed, the system adopts the active mode where the electronic
functions are operational.
2
3
5
4
F
3384
J
3
3383
1
N
2
3
4
5
2189
T
2798
X
3095
Instructions for Use
B
1
psi
L
R
2
3
4547
3381
G
2279
2373
K
1
2
4909
3382
O
2580
Q
1
5001
2804
U
1
2743
3379
Y
psi
2201
3386
The PASS alarm can be activated manually or automatically. The manual
alarm is activated by pressing the manual alarm button on the user
interface (Fig B, Item 2). The automatic alarm uses a motion sensor to
detect movement and activates a pre-alarm and main alarm at timed
intervals when no movement is sensed. The pre-alarm activates after 21-
25 seconds without movement, and the main alarm activates after
approximately a further 10 seconds without movement.
The HUD is fitted in the face mask to provide visual indications of system
conditions (see the HUD instructions for use for full details). Signals from
the Sentinel 7000 are transmitted to the HUD from a pressure transducer/
transmitter incorporated into the pressure module.
System power supplies are the main battery in the backplate, the backup
battery in the pressure module and the HUD battery in the HUD.
Dräger PC Link is an optional accessory that allows reading and
reprogramming of the Sentinel 7000. PC Link can reprogram settings and
parameters, including configuration, firmware and identification, and
download event record (datalog) information. Contact Dräger for full
