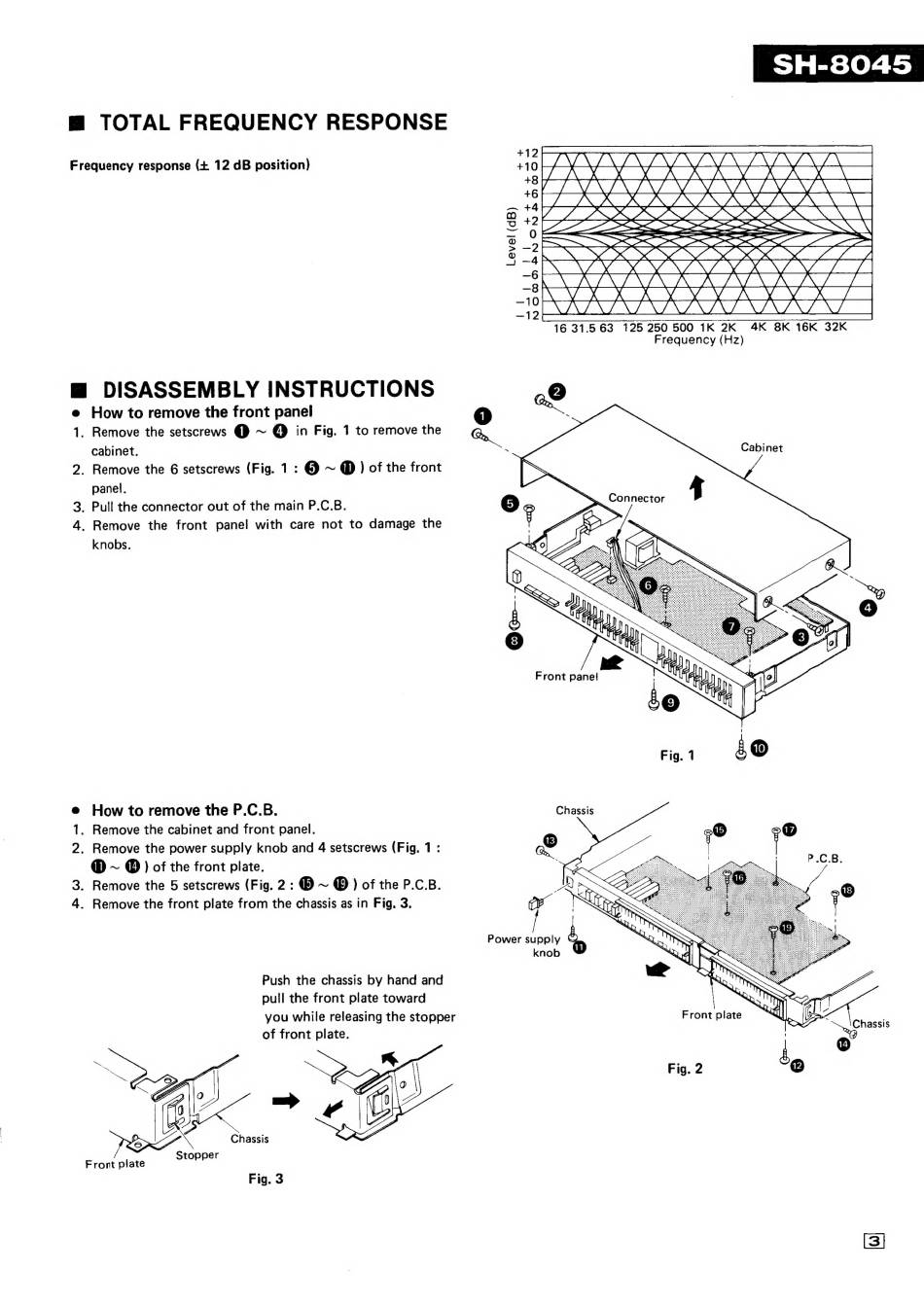

Technics SH-8045 E Service Manual page 5

SH-8045
mM TOTAL FREQUENCY RESPONSE
ee
iti PAA ae at evar avaw ay eae sca
Frequency response (+ 12 dB position) + : a FA. Ga ae Ge. Gy. as.
ps a GY Be A 2 Ga GS AY Ae ee
Pe DAA SS. Daw as LEB EAASO \ \
24542 se SOS CE NN
9 Kea SSN
aati al
; SLE
i: ay , KYL
eV
Ne AE
ee
Sy AVAVACAVATACATAW ET AU LU GT a
16 31.563 125 250 500 1K 2K 4K 8K 16K 32K
Frequency (Hz)
m@ DISASSEMBLY INSTRUCTIONS
e How to remove the front panel 7)
1. Remove the setscrews
@ ~ @ in Fig. 1 to remove the
Cm
cabinet.
~
Cabinet
2. Remove the 6 setscrews (Fig.
1: @ ~ @) of the front
panel.
3. Pull the connector out of the main P.C.B.
4, Remove the front panel with care not to damage the
knobs.
Front panel
e How to remove the P.C.B. Chassis
1. Remove the cabinet and front panel.
2. Remove the power supply knob and 4 setscrews (Fig. 1: &
@ ~ @ ) of the front plate. ys
3. Remove the 5 setscrews (Fig. 2: @ ~ @ ) of the P.C.B. bss
4. Remove the front plate from the chassis as in Fig. 3. ae | tes
Power supply i
knob
Push the chassis by hand and
pull the front plate toward
you while releasing the stopper
of front plate.
Fig. 2
Chassis
| Stopper
Front plate Se
Fig. 3
