SH-8045

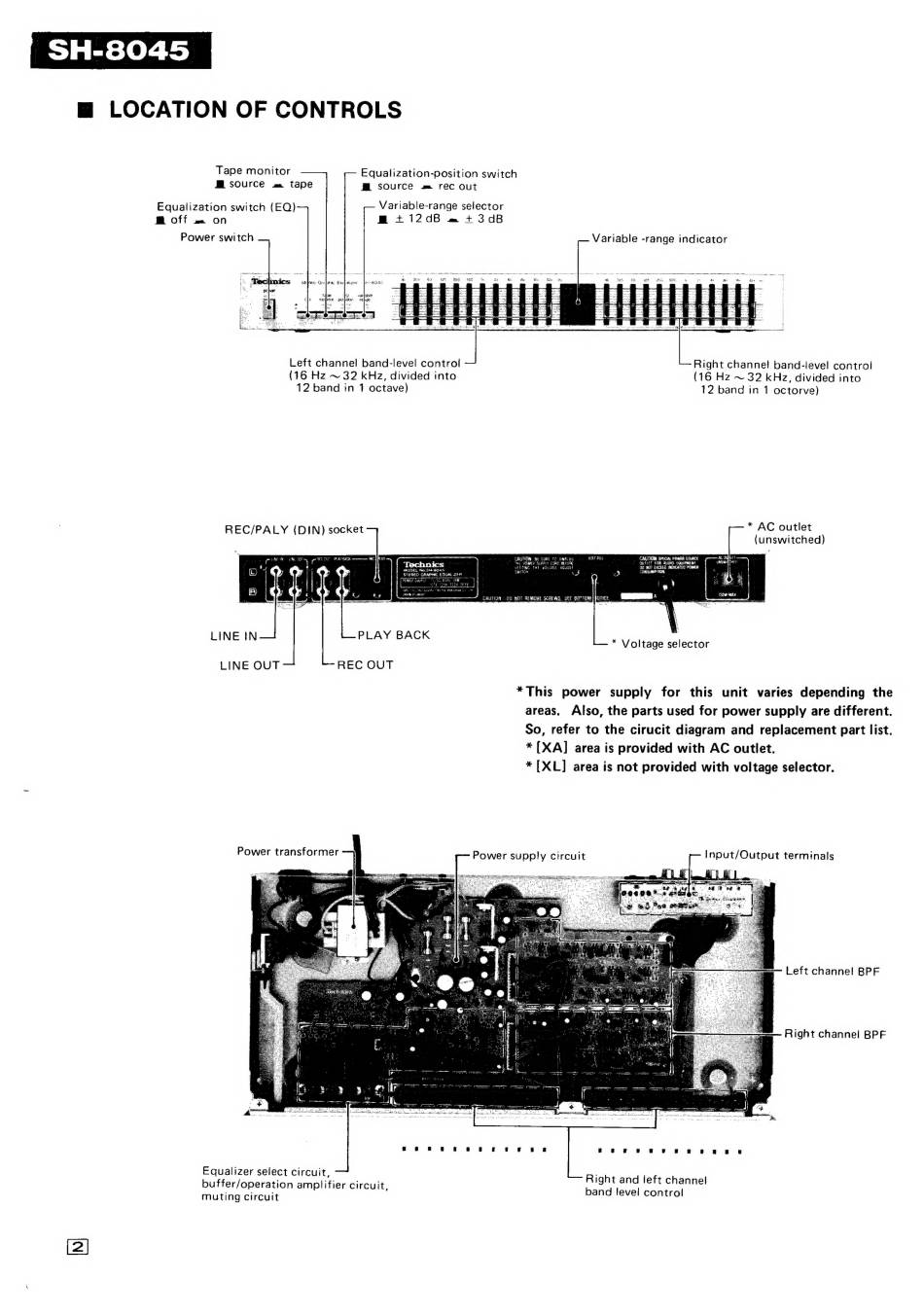

gm LOCATION OF CONTROLS
Equalization-position switch
M source
m
rec out
Tape monitor
Hi source
mm tape
Variable-range selector
Equalization switch {EQ)
B+12dB
m= +3dB
BB off =
on
Power switch
Variable -range indicator
Left channel
band-leve! control
Right channel
band-level control
(16 Hz ~ 32 kHz, divided into
(16 Hz ~ 32 kHz, divided into
12 band in 1 octave)
12 band in 1 octorve)
REC/PALY
(DIN) socket
* AC outlet
(unswitched)
3
4
LINE IN
PLAY BAC
* Voltage selector
LINE OUT
REC
OUT
*This
power
supply
for this unit
varies depending
the
areas.
Also, the parts used for power supply are different.
So, refer to the cirucit diagram and replacement part list.
* [XA] area is provided with AC outlet.
* [XL] area is not provided with voltage selector.
Left channel
BPF
Right channel BPF
muting circuit
