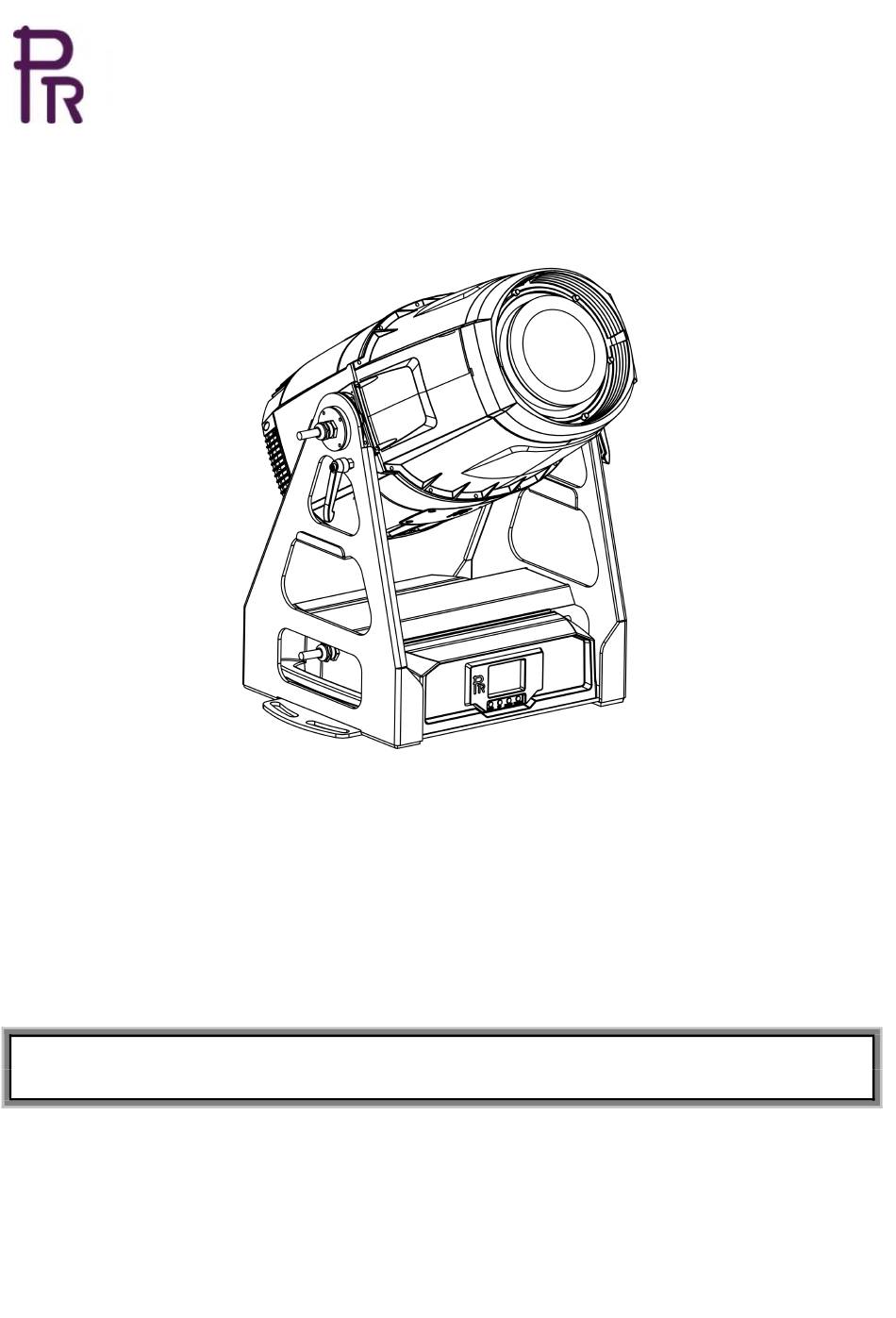

- Page 1 TANGO 680 SPOT DE PR-6629 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
-
Page 2: Table Of Contents
Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. -
Page 3: Safetyand Warnings
1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles User Electrical Protective High Warning Flames Manual shock Gloves Temperature ●... -
Page 4: Instructions
There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord ● supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure a projector is disconnected from power ●... -
Page 5: Installation
TROUBLESHOOTING ● PROBLEM ACTION Check if the fuse is burned Check if the power cord is connected well Check if the switching power supply is bad or not connected well. A Aprojector can’t be switched on professional technician is required for the repair Check if the control board is connected well. - Page 6 POWER CONNECTION ● Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. The earth wire(yellow/green) must be connected to the ground.
- Page 7 ●GOBO REPLACEMENT Rotating gobo wheel Rotating gobo wheel olor wheel Lock the tilt and loosen the 4 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure above. 1→2 , take the gobo out from the rotator To replace a gobo on the rotating gobo wheel: take the rotator from the wheel in the sequence of by removing the tightening spring.
-
Page 8: Setupand Configuration
4. SETUPAND CONFIGURATION ●FRONT PANELOPERATION A projector’s configuration can be set conveniently via push button and LCD display. Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. -
Page 9: Operation Menu
Total Reset Really Reset? Confirm/Cancel Colour System Reset Really Reset? Confirm/Cancel Reset Gobo Reset Really Reset? Confirm/Cancel Zo.Fo. Pr. Reset Really Reset? Confirm/Cancel Other Reset Really Reset? Confirm/Cancel Short Mode 14CH Standard Mode 17CH DMX Channel Mode Extended Mode 19CH... - Page 10 Invert ON InvertAuto English Language Settings Chinese Celsius Degree Temperature Unit Fahrenheit Degree Un-Link Wireless Really Un-Link? Confirm/Cancel Defaults Restore Defaults? Confirm/Cancel Gamma 2.0/2.2/2.4/2.6 Gamma Curve 1200/2400/4800/10000/1200 Dimmer Settings LED Ref. Rate 0/15000/20000/25000Hz Option Settings Dimmer Speed Fast/Medium/Slow Speed Fan Settings Standard/Theatre Defaults Restore Defaults?
-
Page 11: Dmx Protocol
Change Operation Mode? Static Scene Strobe Dimmer Edit User Memory 1 Scene XX ……. /Edit User Memory 2 Delay Time （1~200Scenes） Delay unit (msec/s/m) Edit User Memory Link to Step User Strobe Memories Edit Static Scene Dimmer ….. Reset User Memory 1 Reset User Memory? Input Password123 Reset User Memory 2... - Page 12 Color wheel in 16bit Color wheel continuous positioning ,16bit adjustment Rotating gobo wheel Open Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Gobo7 Gobo8 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shakes from slow to fast Gobo2 shakes from slow to fast Gobo3 shakes from slow to fast Gobo4shakes from slow to fast...
- Page 13 Effect wheel 2 in Effect wheel 2 rotation 1 Clockwise rotation from fast to slow Anti-clockwise rotation from slow to fast Effect wheel 2 rotation 2 Clockwise rotation from fast to slow Anti-clockwise rotation from slow to fast Focus Linear focus Focus in 16 bit Focus 16 bit adjustment Zoom...
-
Page 14: Signs On The Touch Screen
Reserved Reserved Reserved Color wheel reset Gobo wheel reset Reserved Zoom/Focus/Prism reset Other（effect wheel）reset Total reset Reserved Reserved Remarks: Fan errors can result in LED lamp off automatically 7. SIGNS OF THE TOUCH SCREEN Config Settings Option Settings Information Service Error Messages Operation Mode Address... -
Page 15: Technical Data
Driver Board 3 Error Check signal wire Fan Board Error Check signal wire Error Lamp Off[Fan Error] Check if all fans are normal Time IC Error 9. TECHNICAL DATA ELECTRIC PARAMETERS 200V~240VAC ，50/60Hz Input voltage: Input power: 640W @ 220VAC Max. - Page 16 PRISM 1pc of 3 facet circular prism , Bi-directional rotation with variable speeds and indexing function 1pc of 4 facet linear prism , Bi-directional rotation with variable speeds and indexing function EFFECTWHEEL 1 double effect wheel , both rotating in the same direction or opposite one with variable speeds WATER WAVE WHEEL 1pcs, bi-directional rotation with variable speeds FOCUS...
- Page 17 NETWEIGHT 28.5 Kg OPERATION TEMPERATURE Highest ambient temperature 45℃ -20°C, reset a projector before pre-heating it for more than 30 minutes Note: If the ambient temperature is below SIZES (unit: mm) SIZE OF MOUNTING HOLES IN THE BASE (Unit mm) LIGHT OUTPUT...
-
Page 18: Component Order Codes
10. CIRCUIT DIAGRAMAND... - Page 20 11 .COMPONENT ORDER CODES NAME CODE NO. QTY. REMARKS SWITCHING POWER SUPPLY 192010228A LED MODULE 150020337 LED MODULE FAN 030060116 BLOWER FOR GOBO WHEEL 030060106 FAN FOR POWER SUPPLY IN 030060075 THE BASE LED DRIVER FAN 030060084 FAN FOR LENSACCESSORY 030060104 BLOWER LENS...
- Page 22 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N: 320021569...
