PR XRLED 700-W BWSF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

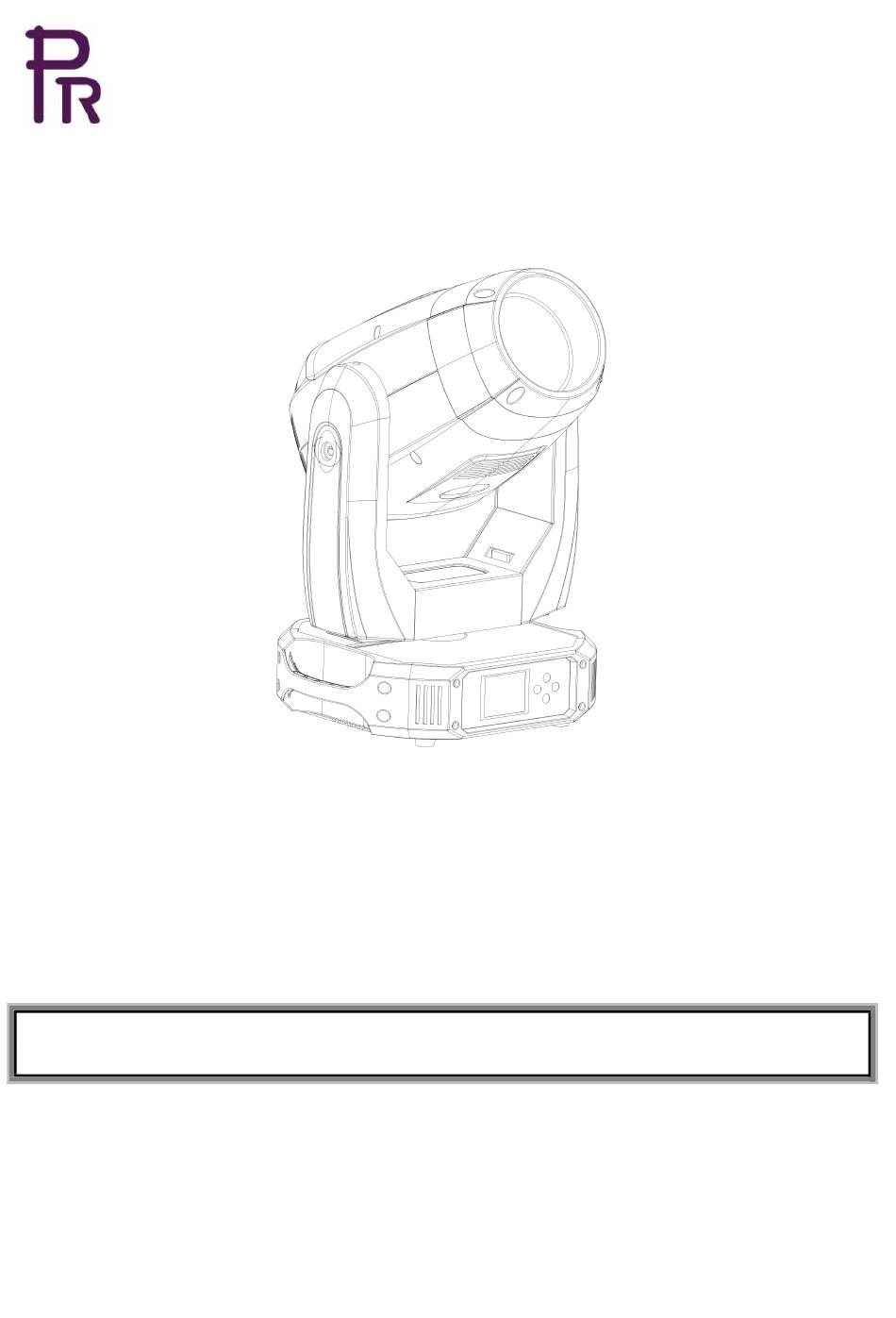

XRLED 700-W BWSF
PR-8174
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XRLED 700-W BWSF and is the answer not in the manual?

Questions and answers

Related Manuals for PR XRLED 700-W BWSF

Summary of Contents for PR XRLED 700-W BWSF

  • Page 1 XRLED 700-W BWSF PR-8174 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    INDEX 1. SAFETYAND WARNINGS ………………………………………………………………………………………… 2. INSTRUCTIONS …………………………………………………………………………………………………… 3. APPEARANCE ………………………………………………………………………………………………… …… 4. INSTALLATION …………………………………………………………………………………………………… 5. SETUPAND CONFIGURATION …………………………………………………………………………………… 6. OPERATION MENU ……………………………………………………………………………………………… 7. DMX PROTOCOL ………………………………………………………………………………………………… 8. ERROR MESSAGES…………………………………………………………………………………………… 9. TECHNICAL DATA ………………………………………………………………………………………………… 10. CIRCUIT DIAGRAM ……………………………………………………………………………………………… 11. COMPONENT ORDER CODES ……………………………………………………………………………………...

  • Page 3: Safetyand Warnings

    Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. 1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual.

  • Page 4: Instructions

    Any electrical connection must be carried out by a qualified person . ● Before installation, please confirm the voltage supplied matches what is required for the projector. ● Each projector must be properly earthed and installed as per related electrical standards. ●...

  • Page 5: Appearance

    To avoid sunlight or other light penetrating into the head via the front lens, resulting in high ● temperature internally causing damages to the projector. Before power-off, please use Tilt channel to move the head and make it facing downward. Do not use alcohol or other organic solvent to clean the housing to avoid damage.
  • Page 6 Warning Please run the safety cord through its 2 holes for safety Note: 1. the distance between the foot of the base and the front lens cover(the head facing downward) 2. the distance between mounting truss and the front lens cover( the head facing downward) 3.
  • Page 7 If any questions about the electrical installation, do not continue but consult a qualified electrician. ● DMX CONTROLCONNECTION: ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.

  • Page 8: Setupand Configuration

    GOBO REPLACEMENT ● Open the head cover after locking the Tilt and loosening 6 fast-fit screws of the cover and the structures as illustrated by the above figures will be seen. For the rotating gobos: Take out the rotators by hand and remove the spring and gobo. Place a new gobo into the rotator and put back the spring.
  • Page 9 FUNC, ENTER,▲,▼ keys or their respective icons to select the functions At the page to set the fixture’s functions, press desired. FUNC key is for ESCAPE, but ENTER key won’t work, and ENTER key is used for While at 2 and 4 level of menus, the ENTER key to save the changes or enter into the sub menus.

  • Page 10: Operation Menu

    Really Reset? Colour System Reset Confirm or Cancel Reset Really Reset? Gobo Reset Confirm or Cancel Really Reset? Fo. Zo. Fr. Pr. Reset Confirm or Cancel Really Reset? Other Reset Confirm or Cancel Short 35CH Standard 40CH DMX Channel Mode Extended 53CH .
  • Page 11 Ch.XX Control Function XLR Only Config Settings XLR First Wireless Only Wireless First Signal Select (Wireless control only Wireless In/XLR Out for the projector with wireless receiver) ArtNet Only ArtNet In/XLR Out sACN Only sACN In /XLR Out Normal time out Loss of DMX Hold Last Value OffAfter Delay...
  • Page 12 Pan Tilt Swap OFF/ ON XYFeedback OFF/ ON "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means both Pan and Pan/Tilt mode Speed/Time Tilt will arrive at designated point at the same time.
  • Page 13 Total Hours Total Hours＝XXX H Display Board= ×××C Pan & Tilt Board ×××C DriverBoard1 ×××C Temperature DriverBoard2 ×××C Blade board=×××C LED Sensor =XXXC Sys Boot Display Board xxx xxx xxx xxx Pan & Tilt board Software Version xxx xxx Driver Board1 xxx xxx Driver Board 2 xxx xxx...
  • Page 14 … Factory Test Change Operation Mode? DMX Mode Confirm or Cancel Change Operation Mode? Preset Memory Confirm or Cancel Change Operation Mode? Master Mode User Memory 1 Confirm or Cancel Change Operation Mode? User Memory 2 Confirm or Cancel Operation Mode Change Operation Mode? Preset Memory...
  • Page 15 Channel Value Strobe Dimmer Dimmer Fine CYM Macro Cyan Cyan Fine Yellow Yellow Fine Magenta Magenta Fine CTO Fine Color Wheel Color Wheel Fine XXX Iris Iris Fine Iris Macro Rot. Gobo Wheel Rot. Gobo Rotation Edit Static Scene Paste? Rot.

  • Page 16: Dmx Protocol

    7. DMX PROTOCOL Shor Standard Extended FUNCTION DESCRIPTION mode Mode Close Strobe 001-127 Pulse strobe speed from slow to fast 128-255 Strobe from slow to fast Dimmer 000-255 Linear dimming （0-100%） Dimmer Fine Dimmer in 16 bit 000-255 000-007 Open 008-009 Color Temperature 2700K 010-011...
  • Page 17 074-075 LEE 026 (Bright Red) 076-077 LEE 058 (Lavender) 078-079 LEE 068 (Sky Blue) 080-081 LEE 071 (Tokyo Blue) 082-083 LEE 079 (Just Blue) 084-085 LEE 088 (Lime Green) 086-087 LEE 090 (Dark Yellow Green) 088-089 LEE 100 (Spring Yellow) 090-091 LEE 101 (Yellow) 092-093...
  • Page 18 162-163 LEE 179 (Chrome Orange) 164-165 LEE 180 (Dark Lavender) 166-167 LEE 181 (Congo Blue) 168-169 LEE 197 (Alice Blue) 170-171 LEE 201 (Full C.T. Blue) 172-173 LEE 202 (Half C.T. Blue) 174-175 LEE 203 (Quarter C.T. Blue) 176-177 LEE 204 (Full C.T. Orange) 178-179 LEE 205 (Half C.T.
  • Page 19 144-147 Orange /Green 148-151 Green 152-155 Green /Dark Blue 156-159 Dark Blue 160-163 Dark Blue /UV 164-167 168-171 UV /Light Yellow Light Yellow 172-175 Light Yellow /Dark Yellow 176-179 Dark Yellow 180-183 Dark Yellow/Open 184-187 188-191 Open 192-223 Rotation ,Clockwise from slow to fast 224-255 Rotation,Anti-clockwise from fast to slow Color Wheel Fine...
  • Page 20 216-225 Shake of Gobo 4 from slow to fast 226-235 Shake of Gobo 5 from slow to fast 236-245 Shake of Gobo 6 from slow to fast 246-255 Shake of Gobo 7 from slow to fast 000-128 Gobo Indexing(0~360 degrees) 129-188 Rotation （Clockwise From slow to Fast）...
  • Page 21 While channels for Iris, Rotating Gobo Wheel and Rotating Gobo Wheel are in use, the projector has automatic focus function at some distance. Use "Autofocus Calibrations" channel (28/33/46) to focus the image. Priority: Rotating Gobo Wheel >Fixed Gobo Wheel > Iris>Framing module Autofocus The following functions will disable the focus...

  • Page 22: Error Messages

    083-089 Reserved 090-094 Pan & Tilt Speed Mode 095-099 Pan & Tilt Time Mode 100-139 Reserved 140-149 Pan & Tilt Reset 150-159 Color System Reset 160-169 Gobo Wheel Reset Reserved 170-179 Zoom/Frost/Focus/Prism Reset 180-189 Other Reset (Blade / Iris) 190-199 Total Reset 200-209 Reserved...

  • Page 23: Technicaldata

    9. TECHNICALDATA ELECTRIC PARAMETERS Input voltages : 100V~240VAC，50/60Hz Input Power : 550W @ 220V Power factor : PF〉0.95 Max. Current: 2.5A @ 220V LIGHT SOURCE SPECIFICATIONS Power consumption : 350W, White LED module Color Temperature : 9000K Manufacturers Rated Lamp Life : 20000hour CRI : Ra≥70 COLORS CMY color mixing system with macros...
  • Page 24 FOCUS DMX linear focus ZOOM DMX linear focus DIMMER dimming 0-100% linear with IRIS 5-100% linear with macros STROBE Electronic strobe 0.2~25 F.P.S, optional pulse, synchronized or non-synchronized strobe at slow, medium and fast speeds HEAD MOVEMENT Pan 540º, Tilt 270º with auto position correction BEAMANGLE Beam/Spot Mode : 4°- 40°...
  • Page 25 NET WEIGHT 22.6Kg AMBIENT TEMPERATURE Temperature at maximum 45°C SIZES LIGHT OUTPUT...

  • Page 26: Circuit Diagram

    10. CIRCUIT DIAGRAM...

  • Page 28: Component Order Codes

    11.COMPONENT ORDER CODES NAME CODE NUMBER REMARK Switching power supply 6190000017 Light source 150020344 Base fan 1 030060118 Base fan 2 030060122 LED fan 1 030060121 LED fan 2 030060122 LED fan 3 030060122 Pan motor 030040276 Tilt motor 030040276 Focus motor 030040213B...
  • Page 30 1582 XingyeAvenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. CounterfeitingWill be Prosecuted! P/N:320021605...
