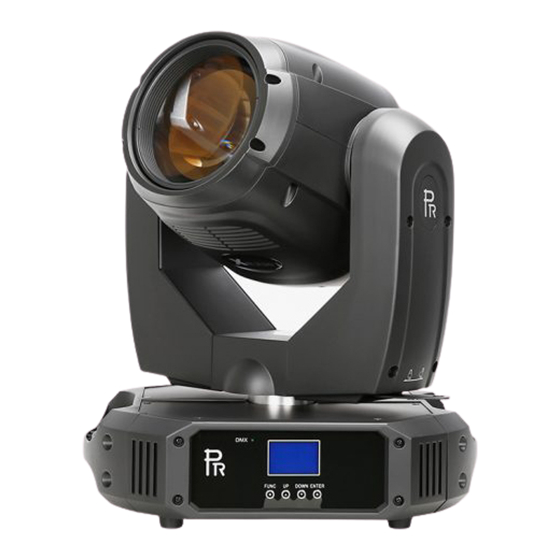

- Page 1 XR 330（BEAM）II PR-2344 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
- Page 2 INDEX SAFETY AND WARNINGS INSTUCTIONS CLEANING AND MAINTENANCE ● LUBRICATION ● TROUBLESHOOTING ● 3. APPEARANCE 4. INSTALLATION RIGGING ● POWER CONNECTIONS ● DMX CONTROL CONNECTIONs ● DMX TERMINATOR ● ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● GOBO/COLOR FILTER REPLACEMENT ● 5. SETUP AND CONFIGURATION FRONT PANEL OPERATION ●...
-
Page 3: Safety And Warnings
1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Goggles Flames Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector. - Page 4 There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...
-
Page 5: Installation
TROUBLESHOOTING ● PROBLEM ACTION Ø Check the fuse on the power socket. The projector doesn’t switch on Ø Check the lamp. Ø The lamp is on but the projector doesn’t respond Make sure that the fixture’s start address is right Ø... -
Page 6: Safety Cord
RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked SAFETY CORD WARNING CLAMP To pass 1 SAFETY CORD through 2 holes for safety CONTROL PANEL HANDLE... - Page 7 Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
-
Page 8: Setup And Configuration
ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● Lock the yoke before fitting/replacingthe lamp. Just as Shown by Figure 1, after Opening the cover at the rear of the projector by loosening 8 fastfit screws, you can open the head. To adjust the lamp as per Figure 2. Take out the lamp as per the figure 3. Before lamp installation, tighten its power wires well. -
Page 9: Master/Slave Mode
Press button ENTER to confirm; after powered on next time, the default will be last value saved Press button FUNC, it will return to the upper menu DMX WIRELESS CONTROL (If the projector has the function) ● The projector has wireless control function with wireless receiver module and antenna for remote control. The setup of it is below: Enter into the projector’s menu. -
Page 10: Operation Menu
6. OPERATION MENU level Menu level menu level menu level menu PortSet 1-494 DMX Address Set Reset Are you Sure Config Set Standard 19 DMX mode Short 15 ByControlChann LampControlSe ByPowerOn （Default：ByControlChannel） ByDMXPresent NormalTimeOut Loss of DMX （Default：NormalTimeOut） HoldLastValue XLR First XLR Only signal Select （Default：... - Page 11 Master OffAfterDelay Display Mode On Always （Default Default：OffAfterDelay） DisplayContrast DisplayContrast 1-31 （ （Default：16） 0-255 Pan Amend 0-255 Tilt Amend UnlinkWireless ResetLampHours ResetUserData ResetOptionSet FactorySettings FactorySettings ParameterTransm ParameterTransm Touch Touch Rgeulate Step ColorPositions （ （Default：Step） Linear Option Set Pan DMX Invert （...
- Page 12 Dimmer Invert （Default：Off） LampHours XXXXX Power On Hours MainBoard XXX Pan & Tilt XXX Software Version Driver 1 XXX TFT Touch XXX Head Sensor XXX Temperature MainBoard XXX Pan & Tilt XXX Info View DMX Vlaue SN=XXXXX Electronic Version XX RDM Device Lable Fan1 OK/Error Fan Error View...
- Page 13 Y Hall OK/Error F-GoboHall OK/Error Prism Hall OK/Error Gobo-RHall OK/Error R-goboHall OK/Error colorHall OK/Error Out_X MEMS Values Ou_Y Out_Z Self Test Open Strobe Strobe1 Strobe2 White Color1- Color13 Colour Wheel Rotation ReverseRotation White F-gobo 1- F-gobo 16 Fixed Gobo Rotation TestMode ReverseRotation Shake1 –Shake 16...
- Page 14 Prism Frost Row Mirror Stop Rotating Effect Rotation Rotation ReverseRotation Prism Have Stop Rotating Prism Rotation Rotation ReverseRotation 0-255 Dimming 0-255 Focus 0-255 Pan Location 0-255 Tilt Location 0-255 Pan &Tilt Speed OperationMode DMX Operation Preset Memory User Memory Static Scene1-Static Scene16 Strobe 0 dimmer ColourWheel 0...
- Page 15 R-Gobo 0 G-Rotating 0 Effect 0 Effect_Rota 0 Prism O Prism_Rota 0 Focus O PanLocation 0 TiltLocation 0 P&T Speed Keeptime 0 LampSet Stae=XX contrl=XX Lamp State Turn Lamp on Turn Lamp on Turn Lamp Off Turn Lamp Off Display Inversion 中文/English 15/26...
- Page 16 The descriptions of other icons： 1. Escape 2. Enter Page Up/ Increase Number 4. Page Down/Decrease Number Remark: 1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode, display setting, operation mode(user memory); 2.
-
Page 17: Dmx Protocol
Fan 1 Error Fan 2 Error Fan3 Error After any error displayed, only can the lamp be turned on after all the 3 errors disappear. 7. DMX PROTOCOL Short Standard FUNCTION DESCRIPTION mode mode Strobe Close 000-010 Open 011-025 Strobe from slow to fast 026-225 Strobe Macro(Strobe at random) 226-246... - Page 18 192-255 Rotation（From slow to Fast） 000-008 White 009-015 Gobo 1 016-022 Gobo 2 023-029 Gobo 3 030-036 Gobo 4 037-043 Gobo 5 044-050 Gobo 6 051-057 Gobo 7 058-064 Gobo 8 Fixed Gobo Wheel 065-071 Gobo 9 072-078 Gobo 10 079-085 Gobo 11 086-092...
- Page 19 048-057 Gobo 5 058-067 Gobo 6 Rotating Gobo Wheel 068-077 Gobo 7 078-087 Gobo 8 088-097 Gobo 9 098-107 Gobo 10 108-117 Gobo 11 118-127 Gobo 12 Rotation （From slow to Fast） 128-143 Reverse Rotation （From slow to 144-159 Fast） 160-167 Shake 1（From Fast to slow）...
-
Page 20: Led Indication
to Fast） Prism Rotation Stop 128-191 clockwise Rotation （From slow to 192-255 Fast） Focus 000-255 Linear Focus Focus Fine 000-255 Focus in 16 bit precision Pan(0°~540°) 000-255 Pan Fine Pan in 16 bit precision 000-255 Tilt Tilt(0°~270°) 000-255 Tilt Fine Tilt in 16 bit precision 000-255 Pan &... -
Page 21: Technical Data
10. TECHNICAL DATA VOLTAGES: 100V/200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 430W@220V LAMP: Osram SIRIUS HRI 330W 8000°K Colour Temperature 1500hrs Manufacturers Rated Lamp Life COLOR S: 1 Color Wheel 13dichroic colour filters plus white variable speed and bi-directional rainbow effect linear colour changing is available GOBOS: 1 Fixed gobo wheel : 16 interchangeable gobos+ white... -
Page 22: Other Functions
DMX512, 3 pin and 5 pin interfaces 15channels in short mode, 19channels in standard mode Adjustable mode OTHER FUNCTIONS: Adjustable Pan & Tilt speed Fixture and lamp usage time display Modular construction for easy maintenance DMX512 wireless receiver (optional) DMX512 wireless transmitter (optional) HOUSING: Composite plastic, IP20 Power driven water proof cover, optional, water proof system control by DMX, IP44... -
Page 23: Light Output
LIGHT OUTPUT: 1470433 365108 160048 98777 59417 41500 射距（m） 0.31 0.62 0.93 1.24 1.55 1.86 23/26... - Page 24 PM10 390V BAT-3.3V...
-
Page 25: Component Order Codes
FIXED GOBO WHEEL MOTOR 030040154A COLOR WHEEL MOTOR PRISM ROTATION MOTOR 030040073 FOCUS MOTOR STROBE MOTOR PAN & TILT DRIVER BOARD 230060538 Pr-2206 10 CHANNEL DRIVER BOARD 230060537 230060683 DISPLAY BOARD 120110366B COLOR WHEEL ACCESSORIES FIXED GOBO WHEEL ACCESSORIES 120110787 PRISM WHEEL ACCESSORIES... - Page 26 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N:320020439 Version: (Preliminary） 20180424 26/26...
