ASSEMBLY INSTRUCTIONS
ZSWY-V1
TLCFLS-0005
Pure & Easy
CONTACT US:
If you have any questions about the installation of YITAHOME® products， just contact us
at +1(888)-717-8084 from Mon-Fri 8:00 AM-16:30 PM PST / Saturday 8:00 AM-12:00 PMPST
or E-mail us at: after-sale.cs@hotmail.com
Alternative method to contact us(amazon.com orders only)
1.Log into your amazon account
2.Go to "Your Orders" and find the purchase

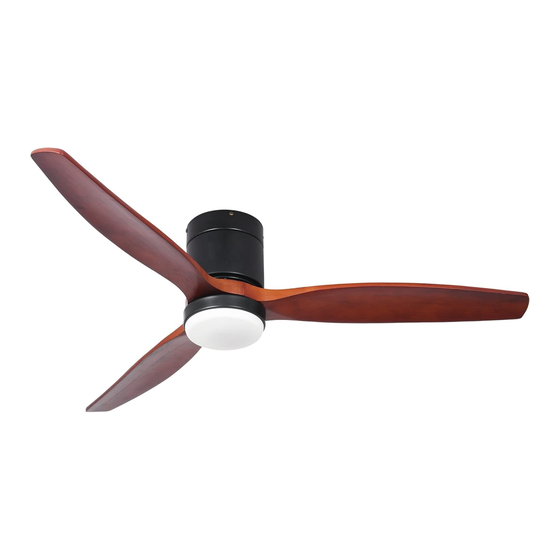

CEILING FAN
3.Click on "Contact Seller"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YitaHome TLCFLS-0005
Summary of Contents for YitaHome TLCFLS-0005
- Page 1 TLCFLS-0005 Pure & Easy CONTACT US: If you have any questions about the installation of YITAHOME® products， just contact us at +1(888)-717-8084 from Mon-Fri 8:00 AM-16:30 PM PST / Saturday 8:00 AM-12:00 PMPST or E-mail us at: after-sale.cs@hotmail.com Alternative method to contact us(amazon.com orders only) 1.Log into your amazon account...
- Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Important Safety Instructions BEFORE YOU START Tools and Materials Required 1.Read all instructions and safety information before installing your new fan. Contact a licensed electrician if Review the accompanying assembly diagrams. you are not good at performing electrical work.
- Page 3 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS SCREWS BAG INSTALLING THE FAN Tools Required: Phillips screwdriver, a pair of pliers, straight slot screwdriver, adjustable wrench, step ladder, and wire cutters. Item Item Qty. Qty. Reference Image Reference Image INSTALLING THE FLUSH MOUNT FAN LIGHT ×4 ×2 1.Securely attach the hanging bracket to...
- Page 4 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 3.Connections 4.Hang the motor assembly onto the two pre-installed hanging bracket’ s screws, then install the other two hanging bracket’ s screws. (Figure 8) To avoid possible electrical shock, make sure the electricity is turned off at the main fuse box before wiring. It is critical that the clevis screw in the downrod support is properly installed and the installed screws are tightened.
- Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS REMOTE CONTROL SETTING AND OPERATION 1). Connect the LED lamp’ s wires to the fan motor's wires. 2). Install the LED lamp on the motor with three screws. (Figure 9) 1.Restore electricity to the outlet box by turning the electricity on at the main fuse box. 2.Remove the battery cover from the remote control transmitter, install the battery, and replace the cover.
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS IMPORTANT:PAIRING BETWEEN REMOTE AND RECEIVER IMPORTANT REMINDERS 1.Within the 30s after turning "ON" the power supply, press the 1.Note: The receiver must be correctly installed in the fan’s hanging bracket. transmitter’s “STOP" button for 5s. Then press the transmitter’s “8H”...
- Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS BALANCING FAN / WOBBLING TROUBLE SHOOTING Tips Please note that all ceiling fans are not the same, even in the same 1.If your fan automatically operates after installing and powering on, it is because your fan has memorized the previous factory setting. model—some may move more or less than others.
