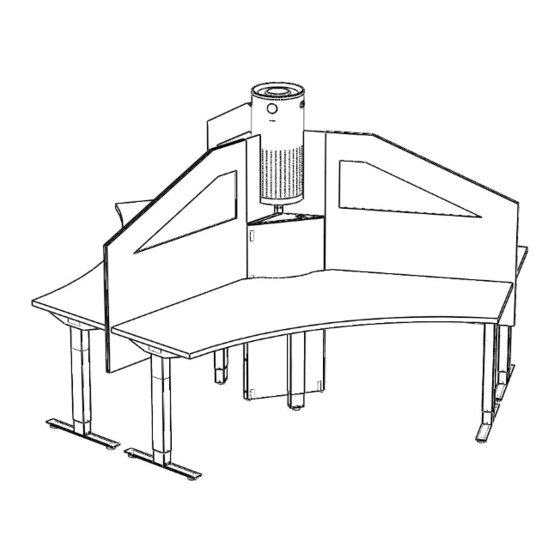

Height Adjustable Desking System

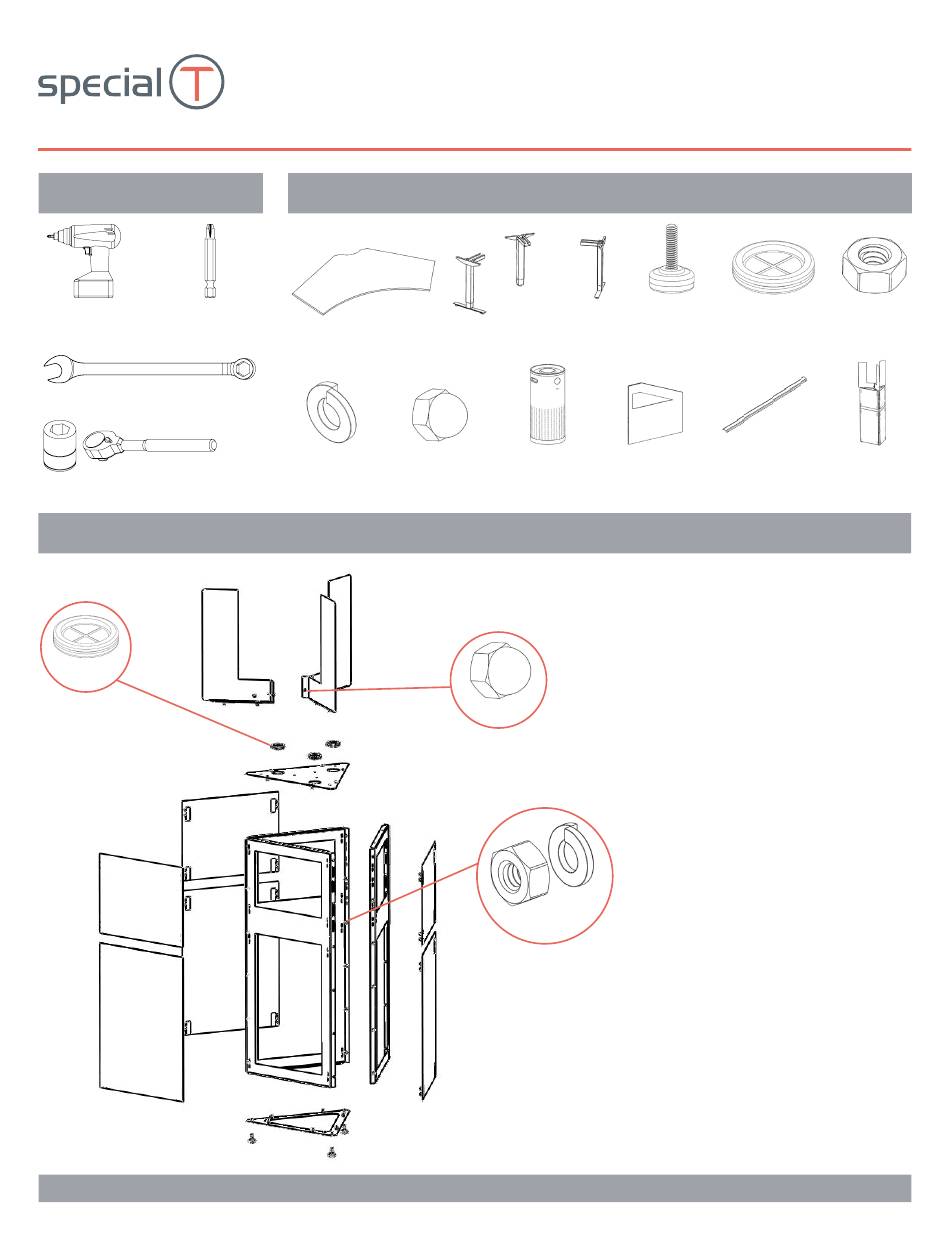

PARTS & HARDWARE LIST
Tabletop
(3)
Acorn Nut
Washer
(36)
(36)
ASSEMBLY STEPS
1
A S S E M B LY I N S T R U C T I O N S
Adjustable
Leveling
Foot Kit
Glide
(3)
(3)
Air Purifier
PET Divider
(1)
(3)
ASSEMBLING THE CORE UNIT
1.
Assemble the three middle panels
with hex nuts and lock washers.
The middle panels all have two large
access windows located on them.
Leave hex nuts loose until all panels
3X
have been assembled.
2.
Install the bottom triangle panel with
cutout and top triangle panel with hex
nuts and lock washers. Install the three
leveling glides into bottom panel. Install
the three rubber grommets into top
triangle panel.
36X
3.
Connect all three top panels
together using painted acorn nuts. Fit
the assembly onto triangle top panel
and secure unit with additional hex
nuts and lock washers. Tighten all 36
hex nuts. Hang the outer sheet metal
panels using lift and drop cleat on
backs of panels. Place the assembly
in desired location and level the
completed unit with he leveling glides.
CORE
Rubber
Hex Nut
Grommet
(36)
(3)
Steel Top
Support
CORE Unit
(3)
(1)
www.specialt.net
Advertisement
Related Manuals for SPECIAL T CORE
Summary of Contents for SPECIAL T CORE
- Page 1 CORE Unit (36) (36) 7/16” Socket & Wrench ASSEMBLY STEPS ASSEMBLING THE CORE UNIT Assemble the three middle panels with hex nuts and lock washers. The middle panels all have two large access windows located on them. Leave hex nuts loose until all panels have been assembled.
- Page 2 Install divider panel utilizing the cleats on the back edge of the divider panel. Set the cleats of the divider panel into the holes of the core unit and lower the panel to set in place. Set the tables into place around the core unit, and level the tables leveling glides located on the feet.
