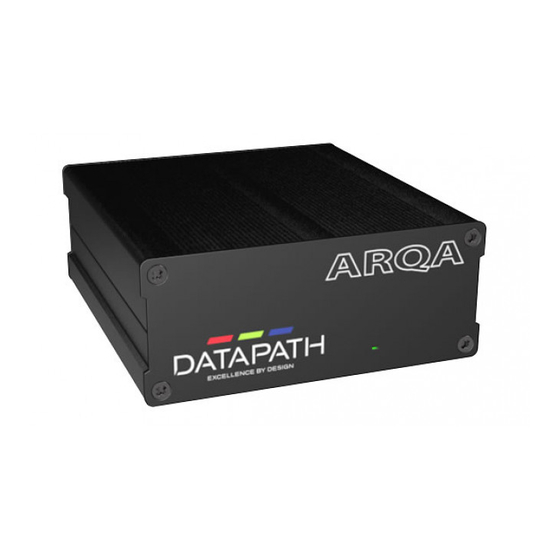

Summary of Contents for Datapath ARQA TX1/C

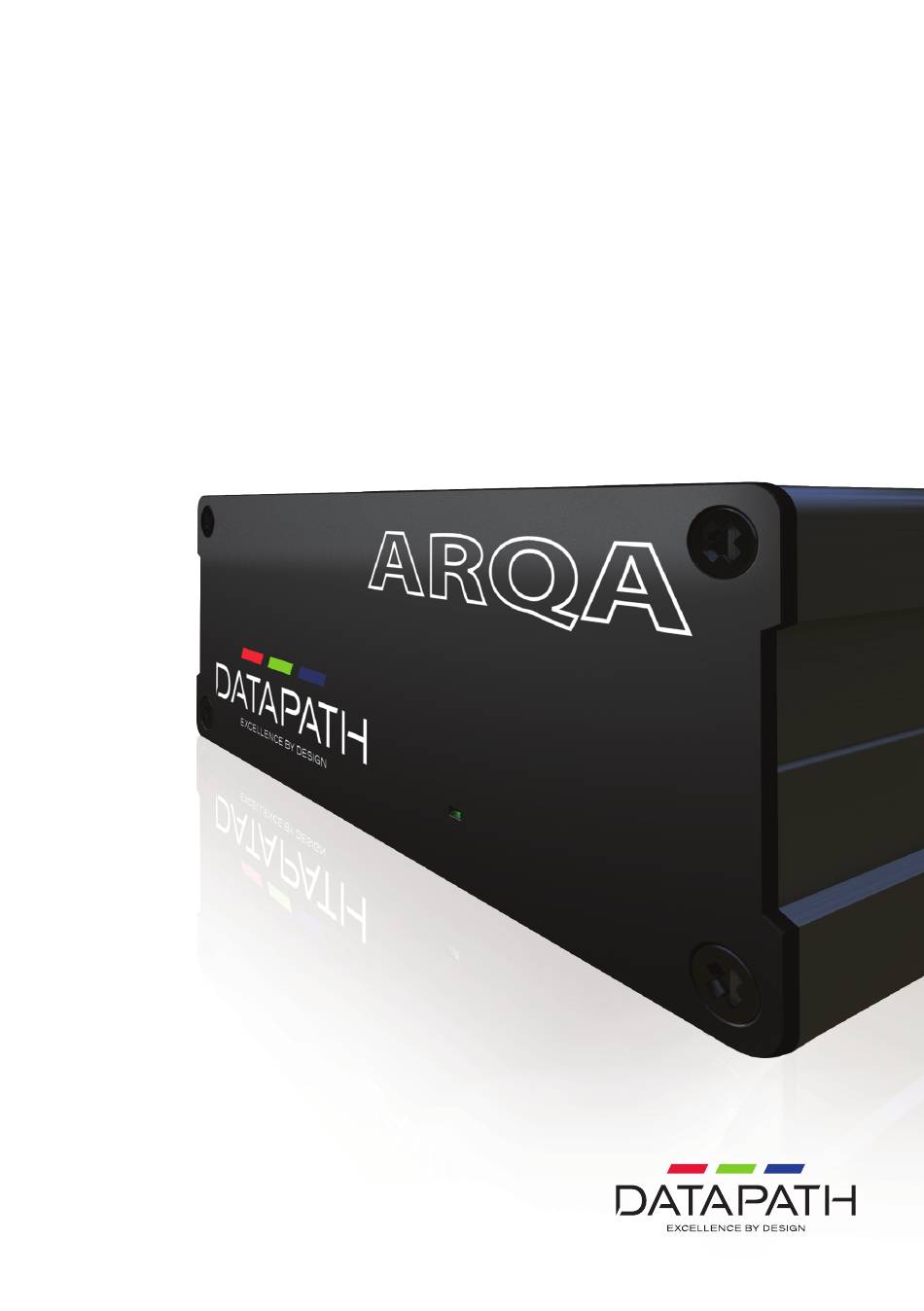

- Page 1 Arqa Quick Start Guide Arqa TX1/C - Arqa TX1/F Arqa RX1/C - Arqa RX1/F Engineering the world’s best visual solutions...
-
Page 2: Table Of Contents
Arqa Quick Start Guide CONTENTS IN THE BOX CONNECTING THE ARQA RX1/C AND TX1/C COPPER UNITS CONNECTING THE ARQA RX1/F AND TX1/F OPTICAL UNITS ATTACHING THE ARQA TX1 UNITS TO THE RMK CONNECTING POWER TO THE ARQA UNITS SETTING UP A POINT TO POINT CONNECTION SETTING UP ARQA DEVICES WITH AETRIA DEVICE CONFIGURATION WITHIN AETRIA COMMAND CENTER USING THE ON SCREEN MENU - ARQA WORKSTATION... -
Page 3: In The Box
Arqa Quick Start Guide IN THE BOX Thank you for purchasing the Datapath Arqa TX1 or RX1 units. The aim 1 x Arqa TX1 unit, or of this document is to quickly guide you 1 x Arqa RX1 unit through the process of initial setup. - Page 4 Arqa Quick Start Guide ARQA RX1 (RECEIVER UNIT) RACK MOUNT KIT (OPTIONAL) 1 x wall power supply unit 12V 1A 1 x rack shelf with RPSU (European or International plug) 2 x mains power cables 1 x rubber feet (incl 4 pcs) 1 x faceplate 1 x mounting pad (incl 4 pcs) Redundant Power Supply Unit (RPSU)
-
Page 5: Connecting The Arqa Rx1/C And Tx1/C Copper Units
Arqa Quick Start Guide CONNECTING THE ARQA RX1/C AND TX1/C COPPER UNITS Audio to PC USB to PC DVI in Audio from PC from PC TX1/C Local DVI - In RS232 Local DVI - Out Network cable CAT5e/6. Up to 150m/492ft KVM - Link DVI out to Monitor Power Socket... -
Page 6: Connecting The Arqa Rx1/F And Tx1/F Optical Units
Arqa Quick Start Guide CONNECTING THE ARQA RX1/F AND TX1/F OPTICAL UNITS Audio to PC USB to PC DVI in Audio from PC from PC TX1/F Local DVI - In RS232 Local DVI - Out Network cable Multi-mode Fiber. Up to 500m/1640ft KVM - Link Power Socket DVI out to Monitor... - Page 7 Arqa Quick Start Guide Connect the Arqa RX1 and the TX1 as follows using the connection illustrations as a guide: Connect both the Arqa RX1 and the TX1 to the 12V 1A power supply provided. Connect the USB cable (provided) to a USB port on the PC and to the USB port on the Arqa TX1. Connect a keyboard and mouse to the USB ports on the Arqa RX1.
-
Page 8: Attaching The Arqa Tx1 Units To The Rmk
Arqa Quick Start Guide ATTACHING THE ARQA TX1 UNITS TO THE RMK Attach the Arqa TX1 to the faceplate by removing the top left and bottom right screws (1). Align the blank screw holes on the faceplate (2), then insert the screws to lock the Arqa TX1 units in place. -
Page 9: Connecting Power To The Arqa Units
Arqa Quick Start Guide CONNECTING POWER TO THE RMK Once the Arqa units have been secured inside the rack mount, remove the protective caps on the power connector pins and connect the power cables from the Power Supply Unit (PSU) to the rear of the Arqa units (1). -
Page 10: Setting Up A Point To Point Connection
Start up a point-to-point connection (without a network switch) The start up for a point-to-point connection is the same whether you are using the Copper or Fiber version of the Datapath Arqa. Ensure all connections between the PC, Arqa TX1 and the RX1 are sound. -
Page 11: Setting Up Arqa Devices With Aetria
Arqa Quick Start Guide SETTING UP ARQA DEVICES WITH AETRIA Basic Installation of Devices Connecting Arqa devices: Connect the Arqa devices as detailed on pages 5 to 7. If the intention is to create a OneControl configuration later for single keyboard and mouse workstations, it may be useful to note which receiver you choose to connect the single keyboard and mouse USB to. - Page 12 Arqa Quick Start Guide Remote Source Aggregation Example Configuring for control of remote systems in this way allows the integration of multiple remote servers into one unified workspace for control of remote systems, as well as visualization on a video wall. The following example shows how network switching can increase the number of inputs available for visualization on the video wall.
-
Page 13: Device Configuration Within Aetria Command Center
Also ensure that all Arqa devices are on the same physical and logical local area network (LAN) as the Aetria Network Manager server. This will have been pre-configured by Datapath and should be connected, powered up and running before going any further. Recommended network configuration settings found in the Aetria Network Configuration Guidelines document. - Page 14 Arqa Quick Start Guide USING THE ON SCREEN MENU - ARQA WORKSTATION The aim of this section is to quickly guide users through the basic process of using the Arqa On-Screen Menu (OSM) for the first time within an Aetria® environment. At this stage the Aetria OneControl group will have been configured within the Aetria Command Center by the system administrator along with any shortcuts that will be used to control the Arqa Workstation.
-
Page 15: Using The On Screen Menu - Arqa Workstation
If the receiver name displays a (W) in front this means that this receiver is a Datapath video wall controller destination, and requires the appropriate video capture window to be open on the wall controller as part of a wall layout. -
Page 16: Troubleshooting
Plug stereo-jack to the microphone input of the PC (pink) and connect to the ‘Out’ socket on the Arqa TX1. Connect the Arqa RX1 ‘In’ to the microphone. LED displays The screen flickers, has Download and install the latest firmware from the Datapath Green. an abnormal display. website. - Page 17 To open the On Screen Display press the ‘Scroll Lock Key’ a lighting may have different minimum of five times in quick succession. The firmware differently. firmware installed. version is displayed below the menu. Should a firmware update not work, contact the Datapath Support Team.
-
Page 18: Copyright Statement
Whilst every effort is made to ensure that the information contained in this Quick Start Guide is correct, Datapath Limited make no representations or warranties with respect to the contents thereof, and do not accept liability for any errors or omissions. -
Page 19: Fcc
Arqa Quick Start Guide These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) These devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 20 Datapath UK and Corporate Headquarters Bemrose House, Bemrose Park, Wayzgoose Drive, Derby, DE21 6XQ, United Kingdom +44 (0) 1332 294 441 sales-uk@datapath.co.uk Datapath North America 2490 General Armistead Avenue, Suite 102, Norristown, PA 19403, USA +1 484 679 1553 sales-us@datapath.co.uk...
