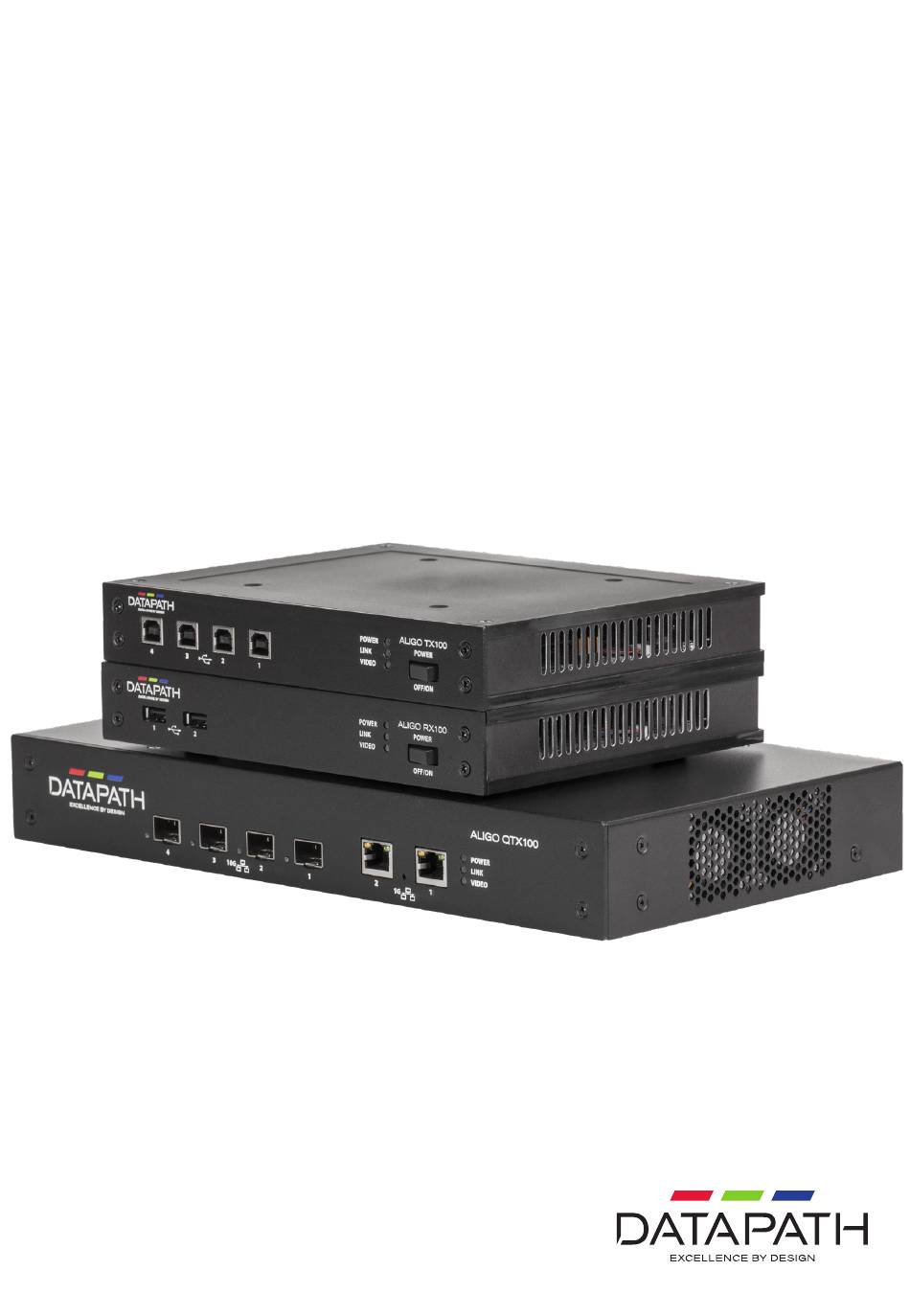

- Page 1 Aligo Quick Start Guide Aligo QTX100 Aligo TX100 Aligo RX100 Engineering the world’s best visual solutions...
-
Page 2: Optional Accessories
Aligo Quick Start Guide OPTIONAL ACCESSORIES Thank you for purchasing the Datapath Aligo QTX100, Aligo TX100 or RX100 units. (PURCHASED SEPARATELY) The aim of this document is to quickly guide you through the process of initial 10GB 850NM + Modules (Order Code - SFPPLUS10) setup. - Page 3 Aligo Quick Start Guide STEP 1 CONNECTING THE ALIGO DEVICES Source Source Source Source Aligo QTX100 or Aligo TX100* LAN/VLAN Aligo RX100 Display Display Display Display * Please note the Aligo TX100 only requires a single 10G connection and has only 1 port.
- Page 4 Connect up to four graphic outputs from your video sources to the HDMI input connectors on the rear of the Aligo QTX100 or Aligo TX100. Note: Where only one input is required, then input 1 must be used first before using inputs 2-4. Input 1 must always be connected to a valid HDMI source in order to function correctly, and you can only use inputs 2, 3 or 4 when using input 1.
- Page 5 1A MAX 50/60Hz 1A FUSE USB Type B connectors - KVM port for connecting to a USB host PC HDMI input connectors - Connect up to four video sources to the Aligo QTX100 Power On/Off Mains power connector ALIGO QTX100 FRONT PANEL ALIGO QT100 10Gb SFP+ Networked Video Transmit Ports.
- Page 6 Aligo Quick Start Guide ALIGO TX100 REAR PANEL Power Made in the 12V DC TX100 HDMI HDMI 1 (4K) Media Utility LOOP OUT HDMI Outputs 10Gb SFP+ and 1Gb RJ45 Networked Video Transmit Ports Loop through for local monitoring of a 4K workstation HDMI input connectors - Connect up to four video sources to the Aligo TX100 Mains power connector ALIGO TX100 FRONT PANEL...
- Page 7 Aligo Quick Start Guide ALIGO RX100 REAR PANEL Audio Out Power Made in the 12V DC RX100 1 (4K) Media Utility HDMI Outputs 10Gb SFP+ Networked Video Receive Port 1Gb RJ45 LAN extension port for connecting to peripheral devices i.e. displays HDMI 2.0 Primary video output port (4K) HDMI 1.2 Secondary video output ports (HD) Audio Out...
- Page 8 (TX) / received from the network and output to HDMI sink (RX). The Aligo QTX100 and Aligo RX100 have LEDs on the 10G ports to indicate that each 10G Ports...
- Page 9 Also ensure that all Aligo devices are on the same Local Area Network (LAN/VLAN) as the Aetria Network Manager server. This will have been pre-configured by Datapath and should be connected, powered up and running before going any further.
- Page 10 Aligo Quick Start Guide Selected device properties Detected devices From within Aetria you can check all devices are communicating properly by checking the serial numbers against the discovered devices. You have now successfully added your new devices to the Aetria system.
-
Page 11: Copyright Statement
COPYRIGHT STATEMENT © Datapath Ltd., England, 2023 Datapath Limited claims copyright on this documentation. No part of this documentation may be reproduced, released, disclosed, stored in any electronic format, or used in whole or in part for any purpose other than stated herein without the express permission of Datapath Limited. - Page 12 Datapath UK and Corporate Headquarters Bemrose House, Bemrose Park, Wayzgoose Drive, Derby, DE21 6XQ, United Kingdom +44 (0) 1332 294 441 sales-uk@datapath.co.uk Datapath North America 2490 General Armistead Avenue, Suite 102, Norristown, PA 19403, USA +1 484 679 1553 sales-us@datapath.co.uk...
