G902 User Guide
----------------------------------------------------------------------------------------------------------------------------- ----------------

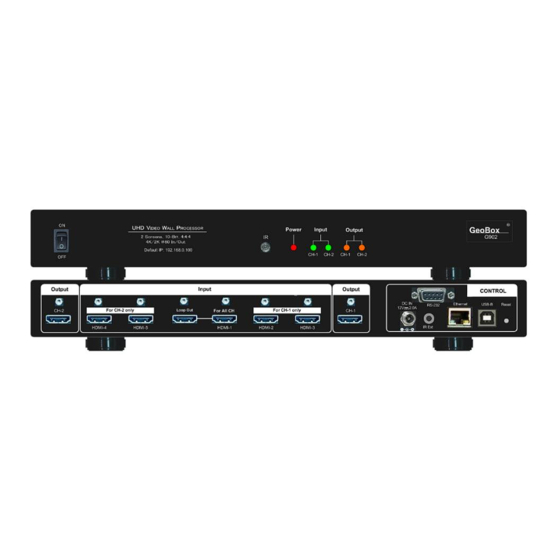

G902 Dual Channel UHD Video Wall Controller
7680*1200 @60Hz in HDMI2.0b, 4:4:4 chroma sampling
Programmable Output resolution: up to 4096*2267/60Hz
Selectable output refresh rate: 24/30/50/60/100/120Hz
(Important Note: If the output resolution can't be supported by the monitor, user will
Tel: +886-2-2792-2819
The absolute opposite of ordinary
User Guide
Input: up to 4096*2160 @60Hz, 7680*2160 @30Hz,
or 7680*1234/60Hz, HDMI2.0, RGB 4:4:4
Support HDR 10, BT 2020 signal processing
PIP/POP & 3/4 split view MultiViewer
3D format conversion
not see any image on the screen)
with matrix SW function
Technical support:
E-mail: sales@vnstw.com
Skype: vns-inc
Website:
www.vnstw.com
Cell: +886-935-678-033
Version: 1.05
0
Document: G902-2
