VNS GeoBox G-405 Quick User Manual

G-405 Quick User Manual
------------------------------------------------------------------------------------------------------------------------------------------------
Please see below instructions if you are new user for G-405
1. GeoBox installation:

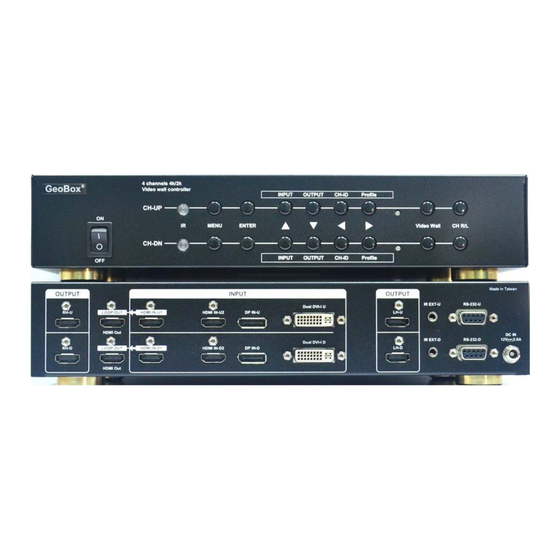

a、 Unpacked and connect G-405 with 12V DC power supply unit and HDMI cables to any LCD. No specific
connection order is required.
b、 No limitation in the LCD size, resolution or aspect ratio, once the color is uniform enough with required
viewing angle.
c、 Please turn off Overscan function in TV set if you use TV as display device.
d、 If GeoBox is installed at a location that is not easy of access by remote controller, please extend IR
extender (with audio cable up to 20 meters) to a place for easy IR access.
2. Signal connection:
a、 Each G-405 consists of two processing modules with the capability to display dual contents in 4x LCD
(two LCDs in one processing module as one display unit). Please connect the same signal to both
processing modules through loop out port daisy chain connection by HDMI-A input port (Please see User
Manual Sect. 4.2).
b、 Signal source is required while installation. If no signal is applied, it will terminate output after 60 seconds.
User can go to [Options]
c、 If two video sources are required, user can display one or two contents on the video wall based on
different input port selection & settings and save the setting in [Profile] that can be recalled at any time.
d、 Loop out port signal comes from HDMI-A input port. If second video source is required for video wall
display across 4 LCDs, 1x2 video distributor is required to provide the same signal to both processing
modules. The first signal source can be connected through loop out port without video distributor.
e、 If HDMI splitter is used, please select a splitter with [EDID] setting function so that it can pass correct
EDID information from GeoBox to signal source.
f、 During setup stage, if user applied 4k/2k image to G-405, the operation menu in signal source (PC) will
become very small. We propose to apply 1080p signal source for easy setup.
3. Familiar with OSD operation:
a、 Power on GeoBox, video source and LCD.
b、 After finishing boot up process, please press [Menu] key and [CH R/L] to switch between different
channels. OSD function will only apply to the channel that shows OSD.
c、 One Video Wall setting hotkey on the remote controller for user to quick access to Video Wall menu.
d、 Please be familiar with all the hotkeys in remote controller. It will save setup time.
e、 When two OSD appears on the screen at the same time, user can disable one OSD by press Menu key
on front panel. Then user can easily control only in one channel. Another way is to set Box ID described
as below in section 5.
4. GeoBox setup:
a、 To reset GeoBox via [Options]
b、 Press [INPUT] hotkey to select input port on both processing modules. User can see input port message
on the screen. Default is [HDMI A] input port.
G-405 Quick user guide
[Accessibility] [Standby Time Out] to disable auto shut off function.
[Reset] [Reset all] to avoid any undesired settings inside Box.
0
Document: G-40501
