Summary of Contents for Ronix 8608

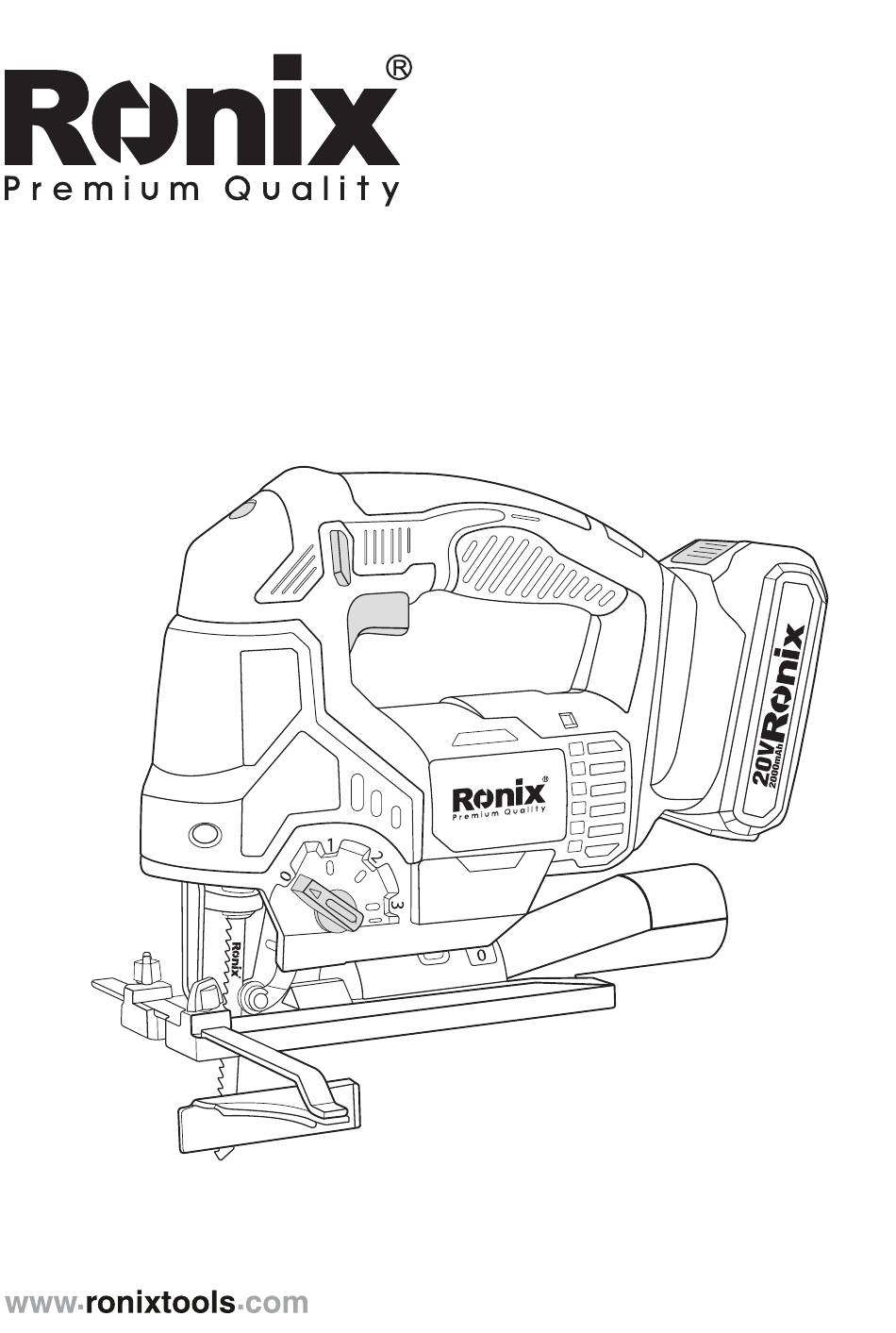

- Page 1 CORDLESS JIG SAW 8608...
-
Page 2: Specifications
Max. Saw capacity in plastic 12 mm Continuous Working Time 20 min (All Diodes) Charging time 60 min Weight 2.45 Kg Supplied in Ronix BMC bag guide ruler, dust tube wood sawblade, metal Includes sawblade, 2pcs 2.0Ah battery, 1pc 2A Charger USER MANUAL... -
Page 3: Parts List
PARTS LIST On/off Trigger Laser Guide Battery Button Carriage Safely Switch Blade Guard Keyless Chuk 2.0 Ah 20V Fence Knob Max Battery Baseplate Blade Guide LED Battery Charge Indicator Orbital Cut Selector 4 x Jigsaw Blade (3 x wood,1x Metal) 2A Battery Charger CORDLESS JIG SAW... -
Page 4: Work Area
GENERAL SAFETY RULES FOR ALL BATTERY-OPERATED TOOLS WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. For your personal safety, read and understand before using. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. WORK AREA 1.Keep your work area clean and well lit. -
Page 5: Personal Safety
PERSONAL SAFETY 7.Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. 8.Dress properly. -
Page 6: Important Charging Notes
17.Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. 18.When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. -
Page 7: Blade Assembly
Do not allow liquid to enter charger. Electric shock could result. To cool the battery pack after use, avoid placing the charger in a warm environment such as in a metal shed or non-insulated trailer. Ronix service Authorized Service Center. BLADE ASSEMBLY Ensure the Battery is Disconnected throughout assembly 1.Firstly, open the Keyless Chuck (I). -
Page 8: Battery Assembly
BATTERY ASSEMBLY Ensure the Battery is fully charged before assembly 1.Slide the Battery into the Battery Carriage at the bottom on the Handle. An audible *click* will be heard when ifs correctly located. BATTERY CHARGER OPERATION Ensure the power source switch is OFF when plugging in Battery Charger 1.You MUST understand the whole Instruction Manual before any o p e r a tion. -
Page 9: Starting And Stopping
2.Plug in the Battery Charger, then turn on the power source. 3.The Charge State Lights will indicate the following: Solid Red: Charging Solid Green: Fully charged STARTING AND STOPPING WARNING! You MUST read and fully understand the whole user manual before operation To start the machine, firstly press the Safety Switch (B). -
Page 10: Fence Adjustment
ORBITAL CUTTING Adjust the Orbital Cut Selector (F) to add elliptical motion to the cutting blade. This adds Forward and Backward movement to the Jigsaw blade, for a more aggressive cut. ONLY SUITABLE FOR WOOD. BEVEL ADJUSTMENT WARNING! Remove the battery when adjust the machine, this will prevent accidental starting. -
Page 11: General Maintenance
GENERAL MAINTENANCE WARNING! Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. Keep all nuts, bolts and screws tight to be sure the machine is in a safe working condition. - Page 12 - Make sure the machine is stored away from direct sunlight. Store indoors or in a safe, frost-free area during severe weather and winter months. 0° USER MANUAL...
