Ronix 8801 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CORDLESS JIG SAW
8801

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8801 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 8801

Summary of Contents for Ronix 8801

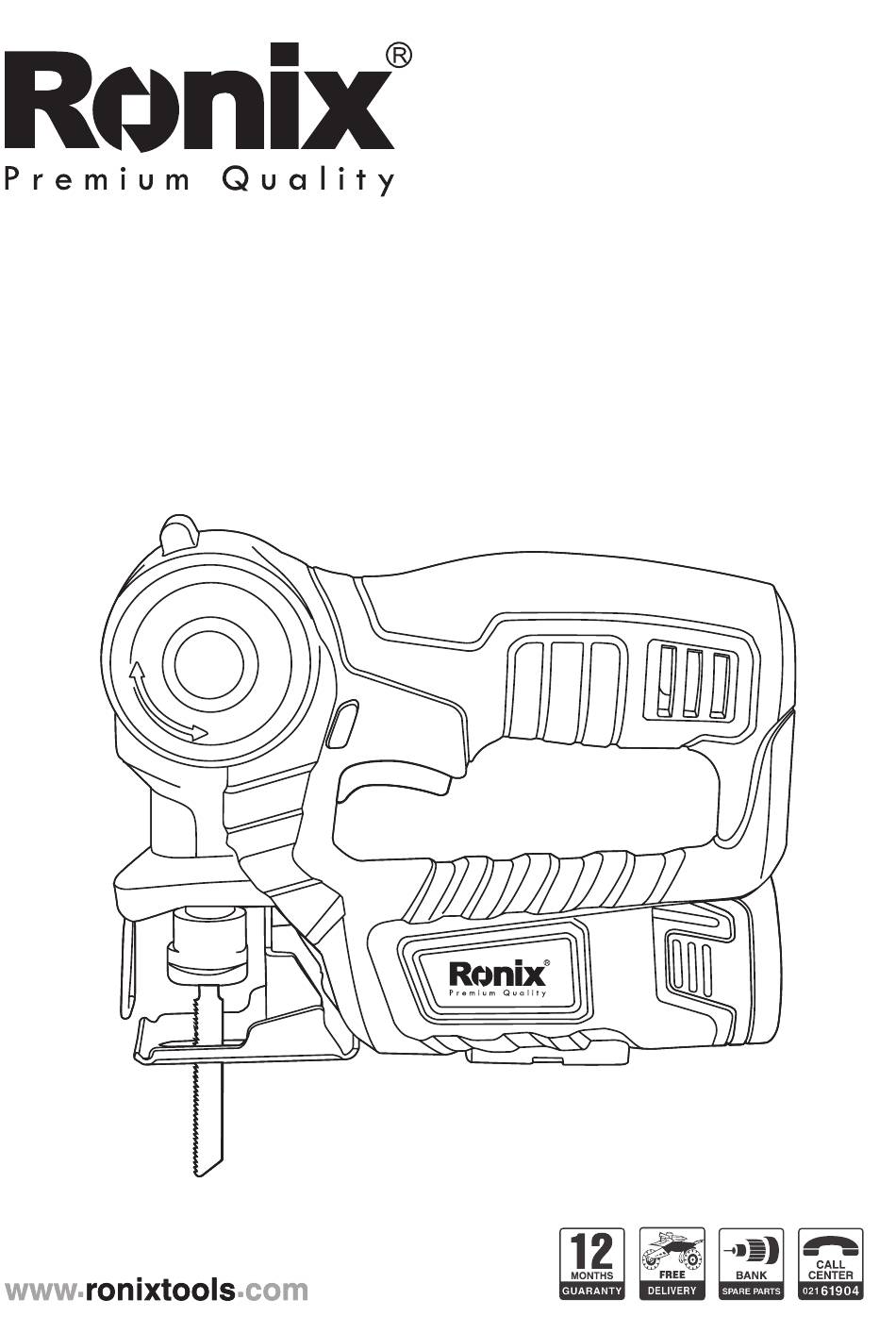

  • Page 1 CORDLESS JIG SAW 8801...

  • Page 2: Specifications

    SPECIFICATIONS Model 8801 Voltage 12V DC No Load Speed 600~2500 RPM Stroke Length 14mm Battery 1.5 Ah Li-ion Change Time 1 Hour Timber 30mm PVC Tube : 16mm Max Cutting Capacity Steel : 3mm Weight 1.4 KG PARTS LIST Lock-OFF Button...

  • Page 3: General Safety Rules For All Battery Operated Tools

    NOTE: Please keep this instruction manual for future reference. WARNING! For your personal safety, read and understand before using. GENERAL SAFETY RULES FOR ALL BATTERY OPERATED TOOLS WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

  • Page 4: Personal Safety

    A charger that may be suitable for one type of battery may create a risk of fire when used with another battery. - Use battery operated tool only with specifically designated battery pack. Use of any other batteries may create a risk of fire. PERSONAL SAFETY - Stay alert, watch what you are doing, and use common sense when operating a power tool.
  • Page 5 tool will do the job better and safer at the rate for which it is designed. - Do not use tool if switch does not turn it on or off. A tool that cannot be controlled with the switch is dangerous and must be repaired. - Disconnect battery pack from tool or place the switch in the locked or off position before making any adjustments, changing accessories, or storing the tool.

  • Page 6: Important Charging Notes

    IMPORTANT CHARGING NOTES 1. Do not store in locations where the temperature may exceed 40. 2. Charge only at ambient temperatures between 4 and 40. 3. Charge only using the charger provided with the tool as other chargers might use different amperages and can damage or destroy your battery and /or screwdriver 4.

  • Page 7: Charging The Battery

    CHARGING THE BATTERY 1. The green light will flash when connected with 230V power. 2. Insert the battery into charging cradle, the red light will be light up when properly connected and charging. 3. The green lights only will illuminate when the battery reaches the full charges.

  • Page 8: Installing Blades

    - Remove the battery from the charge after about 1 hour. Always disconnect the charger from the mains before you remove the battery from the charger. - Replacements for the rechargeable battery are available from RONIX SERVICE. WARNING! - Both the battery pack and the charger may become warm to touch.
  • Page 9 2. Blade can be installed with the teeth facing forward or backward to suit the application. Insert the T-shank into the blade holder. 3. Release the quick release blade clamp. 4.Pull on the blade to ensure it is properly secured. CORDLESS JIG SAW...
  • Page 10 CAUTION: Do not handle blades without gloves as they are sharp and can become hot after use, this can cause personal injury. EXTENDING THE SAW ARM 1. Depress the swivel button with one hand. 2. With the other hand, pull the arm up to extend or push down to tuck. ON/OFF TRIGGER To start the combi saw, depress and hold the lock off button then squeeze the on/off trigger.

  • Page 11: Variable Speed

    To turn off, release the on/ off trigger. VARIABLE SPEED 1. Scroll through the variable speed dial to select the appropriate speed for the task at hand. CUTTING JIG SAW MODE 1. Mark the cutting line with a pencil. 2. Secure the work piece if necessary. CORDLESS JIG SAW...
  • Page 12 3. Start the combi saw. Allow it to reach maximum speed. 4. Place the base on to the work piece and move forward with light pressure. RECIP MODE 1. Press the base firmly against the work piece. 2. Turn the combi saw on. USER MANUAL...

  • Page 13: Maintenance

    When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician at an RONIX PLUS Authorized Service Center. CORDLESS JIG SAW...
