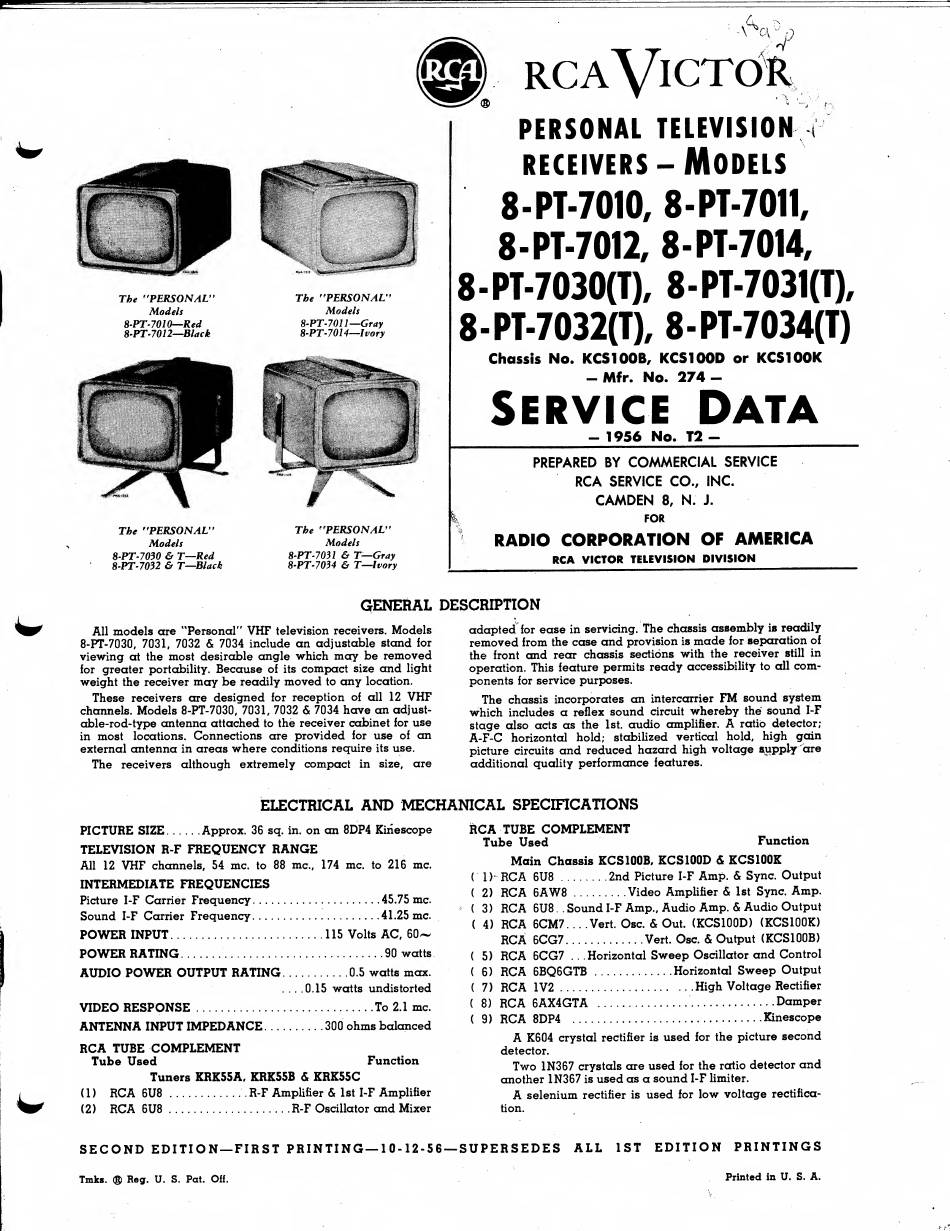

RCA VICTOR 8-PT-7010 Service Data

The "PERSONAL"
Models
8-PT-7010—Red
8-PT-7 012—-Black
The "PERSONAL"
Models
8-PT-7030 & T—Red
8-PT-7032 & T—Black
PERSONAL TELEVISION .
The "PERSONAL"
Models
8-PT-7011 —Gray
8-PT-7014—Ivory
receivers-Models
8-PT-7010, 8-PT-7011,
8-PT-7012, 8-PT-7014,
8-PT-7030(T), 8-PT-7031(T),
8 - PT-7032(T), 8 - PT-7034(T)
The "PERSONAL"
Models
8-PT-7031 & T—Gray
8-PT-7034 & T—Ivory
Chassis No. KCS100B, KCS100D or KCS100K
— Mfr. No. 274-
Service Data
_- 1956 No. T2 -_
PREPARED BY COMMERCIAL SERVICE
RCA SERVICE CO., INC.
CAMDEN 8, N. J.
k
FOR
RADIO CORPORATION OF AMERICA
RCA VICTOR TELEVISION DIVISION
GENERAL DESCRIPTION

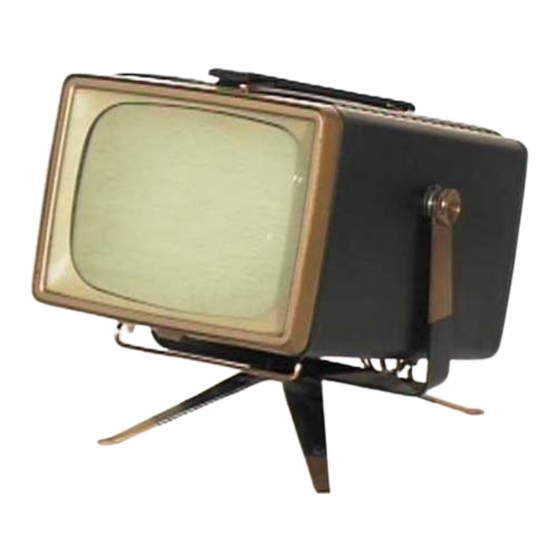

All models are "Personal" VHF television receivers. Models
8-PT-7030, 7031, 7032 & 7034 include an adjustable stand lor
viewing at the most desirable angle which may be removed
for greater portability. Because of its compact size and light
weight the receiver may be readily moved to any location.
These receivers are designed for reception of all 12 VHF
channels. Models 8-PT-7030, 7031, 7032 & 7034 have an adjust¬
able-rod-type antenna attached to the receiver cabinet for use
in most locations. Connections are provided for use of an
external antenna in areas where conditions require its use.
The receivers although extremely compact in size, are
adapted! for ease in servicing. The chassis assembly is readily
removed from the case and provision is made for separation of
the front and rear chassis sections with the receiver still in
operation. This feature permits ready accessibility to all com¬
ponents for service purposes.
The chassis incorporates an intercarrier FM sound system
which includes a reflex sound circuit whereby the sound I-F
stage also acts as the 1st. audio amplifier. A ratio detector;
A-F-C horizontal hold; stabilized vertical hold, high gain
picture circuits and reduced hazard high voltage supply are
additional quality performance features.
ELECTRICAL AND MECHANICAL SPECIFICATIONS
PICTURE SIZE.Approx. 36 sq. in. on an 8DP4 Kinescope
TELEVISION R-F FREQUENCY RANGE
All 12 VHF channels, 54 me. to 88 me., 174 me. to 216 me.
INTERMEDIATE FREQUENCIES
Picture I-F Carrier Frequency.45.75 me.
Sound I-F Carrier Frequency.41.25 me.
POWER INPUT..115 Volts AC, 60-
POWER RATING..90 watts
AUDIO POWER OUTPUT RATING.0.5 watts max.
. .. .0.15 watts undistorted
VIDEO RESPONSE.To 2.1 me.
ANTENNA INPUT IMPEDANCE.300 ohms balanced
RCA TUBE COMPLEMENT
Tube Used Function
Tuners KRK55A, KRK55B & KRK55C
(1) RCA 6U8. R-F Amplifier & 1st I-F Amplifier
(2) RCA 6U8.R-F Oscillator and Mixer
SECOND EDITION —FIRST PRINTING—1 0-12-56
RCA TUBE COMPLEMENT
Tube Used Function
Main Chassis KCS100B, KCS100D <S KCS100K
( 1>- RCA 6U8.2nd Picture I-F Amp. & Sync. Output
( 2) RCA 6AW8.Video Amplifier & 1st Sync. Amp.
( 3) RCA 6U8. . Sound I-F Amp., Audio Amp. & Audio Output
( 4) RCA 6CM7... Vert. Osc. & Out. (KCS100D) (KCS100K)
RCA 6CG7.Vert. Osc. & Output (KCS100B)
( 5) RCA 6CG7 . . .Horizontal Sweep Oscillator and Control
( 6) RCA 6BQ6GTB..Horizontal Sweep Output
( 7) RCA 1V2.High Voltage Rectifier
( 8) RCA 6AX4GTA . Damper
( 9) RCA 8DP4 .Kinescope
A K604 crystal rectifier is used for the picture second
detector.
Two 1N367 crystals are used for the ratio detector and
another 1N367 is used as a sound I-F limiter.
A selenium rectifier is used for low voltage rectifica¬
tion.
SUPERSEDES ALL 1ST EDITION PRINTINGS
Tmks. ® Reg. U. S. Pat. Off.
Printed in U. S. A.
