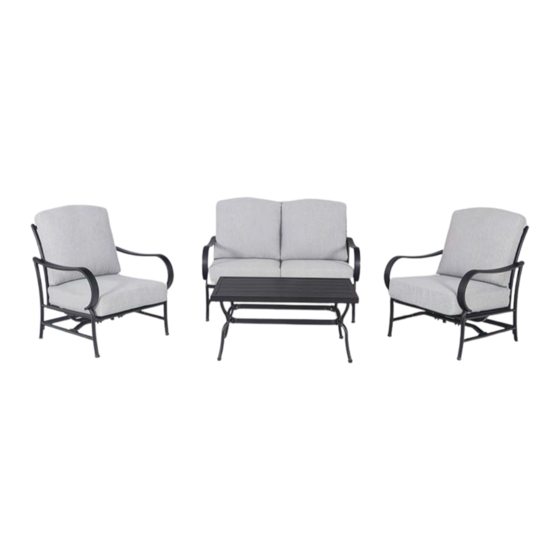

- Page 1 Model #211-321-4DS USE AND CARE GUIDE Alegre 4pc Deep Seating Set Questions, problems, missing parts? Before returning to the store, call Our Customer Service 7.30 a.m. - 4.30 p.m. PST, Monday - Friday, 888-445-6690 CustomerService@PacificCasual.com Ver: 10-08-2021...
- Page 2 Table of Contents Pre-Assembly..............3 Table of Contents ............2 Planning Assembly ..............3 Important Safety Instructions ..........2 Hardware Included..............3 ..............2 Care & Cleaning Package Contents ..............4 Assembly.................5 Important Safety Instructions SAVE THESE INSTRUCTIONS IMPORTANT: Please check the tightness of the bolts CAUTION: Use the table and chairs on flat surface only.
- Page 3 Pre-Assembly PLANNING ASSEMBLY It will take two people about 30 minutes to complete the assembly process. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Hardware Quantity Part Description 2 Rockers 1 Love Seat Total 1 Table Bolt (M6x12) Bolt (M6x18) Bolt (M6x20) Bolt (M6x40) Washer (D6*Φ11)
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Rocking Lounge Chairs Description Quantity Part Right armrest Left armrest Seat and back U-bar Cross bar Seat cushion Back cushion Loveseat P art Description Quantity Right armrest Left armrest Seat and back Back cushion Seat cushion Coffee Table Part Description...
- Page 5 Assembly (Rocking Lounges) □ Place the armrest (B) on its side on a flat, smooth surface. □ Attach U-bar (D) to the armrest with lock washers (JJ), washers (II) and bolts (GG) using wrench (PP). □ Attach the cross bar (E) to the armrest with washers (EE) and bolts (BB) using hex wrench (OO). □...
- Page 6 A A s s s s e e m m b b l l y y (Rocking Lounges) □ Turn the chair upright. □ Place cushions (1) and (2) on the chair. □ Repeat Step 1 through 3 for the other chair. A A s s s s e e m m b b l l y y (Love Seat) □...
- Page 7 A A s s s s e e m m b b l l y y (Loveseat) □ Turn the loveseat upright. Place cushions (1) and (2) on it. A A s s s s e e m m b b l l y y (Coffee table) □...
- Page 8 Assembly Assembly □ Align leg connector bracket (G) to the four table legs (H) . □ Attach the leg connector bracket (G) to table legs (H) with washers (EE) and bolts (CC) . □ Once all bolts (AA) and (CC) are in place. Fully tighten all the bolts using hex wrench (OO).
