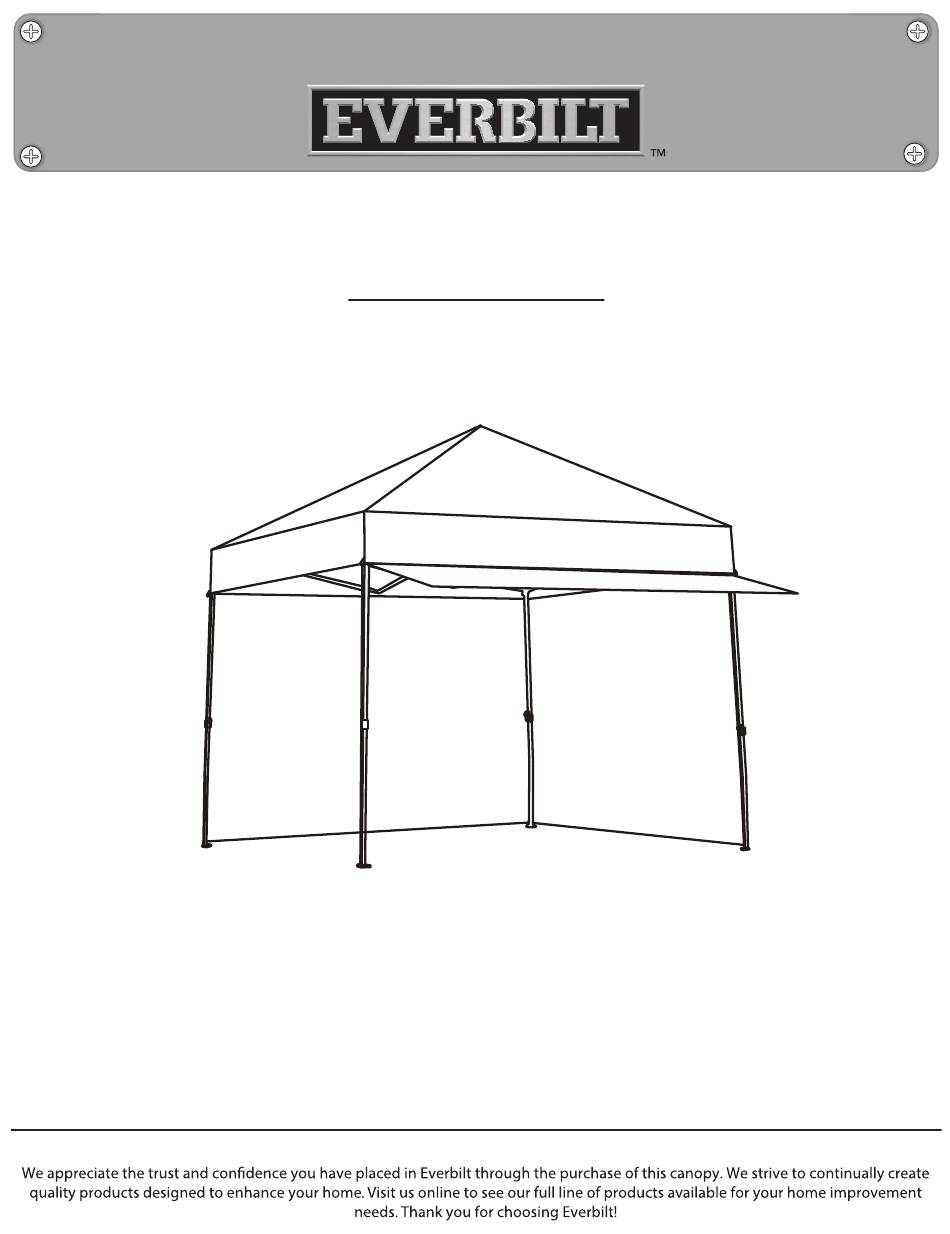

Item #1007 950 796
Model # HY100G
USE AND CARE GUIDE
10 ft. x 10 ft. Pro Canopy with Single Awning Panel and Double Sidewall
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-800-305-1726
HOMEDEPOT.COM
THANK YOU

Advertisement

loading
Need help?

Need help?

Do you have a question about the HY100G and is the answer not in the manual?

Questions and answers

Related Manuals for Everbilt HY100G

Summary of Contents for Everbilt HY100G

  • Page 1 Item #1007 950 796 Model # HY100G USE AND CARE GUIDE 10 ft. x 10 ft. Pro Canopy with Single Awning Panel and Double Sidewall Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m. - 6 p.m., EST, Monday - Friday 1-800-305-1726 HOMEDEPOT.COM...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 Setting Up the Canopy .

  • Page 3: Pre-Installation

    Pre-Installation PACKAGE CONTENTS F /2pcs C /2pcs B /1pcs A /1pcs D /4pcs E /1pcs J /1pcs G /4pcs H /1pcs I /2pcs Part Description Quantity Frame Canpoy Side Wall Weight Bag Cover bag Awning pole Stake Hex wrench (for maintenance only) 4”...

  • Page 4: Setting Up The Canopy

    Setting Up the Canopy OPENING THE CANOPY FRAME With a partner, stand across from each other. Grasp a truss at the top of the frame(A) and the other truss at the bottom, as shown. Lift slightly off ground and step backwards while squeezing trusses together.
  • Page 5 Setting Up the Canopy ATTACHING THE CANOPY Unfold the canopy (A) and place on top of the frame (B). Slide the EZ clip tab over the knob to secure the top tigntly. Secure the canopy (A) to the corners of the frame (B) using the Velcro connections. IMPORTANT: Find the corners of the canopy before draping over frame.
  • Page 6 Setting Up the Canopy LOCKING THE FRAME Lift up one side of the frame (B) and walk under it. Place one hand on the upper frame and use the other hand to push the central hub straight up until it clicks into the central pole.
  • Page 7 Setting Up the Canopy ATTACHING THE EXTENDED AWNING TOP AND AWNING POLES Insert the two awning poles into holes. Put awning pole into extended awning top sleeve until in place.Repeat on the other side. Attach the extended awning top to the canopy top with Velcro. IMPORTANT: Canopy top on each side has Velcro, so don't need to search for where the Velcro is beforehand.
  • Page 8 Setting Up the Canopy ATTACHING THE SIDEWALL Insert the two hooks of the sidewall upper corners into the holes on the canopy legs. Hang the integrated plastic wall-hooks on the outer truss bars. Secure the sidewall with hooks and loops. On grass or dirt setup insert the in the stakes the wall bottom loops to reduce wind flapping.
  • Page 9 Setting Up the Canopy ALWAYS BE SURE TO ANCHOR THE FRAME Lift up one side. Grasp the outer or upper leg with one hand and pull out the inner leg with the other. Extend until the button engages. Set legs to desired height. Insert a stake (G) into the foot of each canopy leg.
  • Page 10 Setting Up the Canopy STO-N-Go Wheel Installation Insert each wheel axel into the hole provided on two of the footplates. Lock the wheel tight with the provided hex wrench. unlock lock HOMEDEPOT.COM Please contact 1-800-305-1726 for further assistance.

  • Page 11: Taking Down The Canopy

    Taking Down the Canopy REMOVING THE SIDEWALL Remove all weight pockets and stakes from the ground. Untie the hooks to take down it. Unfasten the Velcro from the weight bag. HOMEDEPOT.COM Please contact 1-800-305-1726 for further assistance.
  • Page 12 Taking Down the Canopy REMOVING THE STAKES AND RETRACTING THE LEGS Press the push button to lower all legs. REMOVING THE EXTENDED AWNING TOP AND AWNING POLES Pull down the extended awning top hook and loop. Remove extended awning top. Take down the awning poles.
  • Page 13 Taking Down the Canopy UNLOCKING THE CANOPY From underneath the canopy, press in the red lock button.press in the red lock button.Pull down on the central hub until it is separated from the central pole. FOLDING THE FRAME Lift the canopy off the ground 2-3 inches and walk it in from both sides until the frame is fully closed. HOMEDEPOT.COM Please contact 1-800-305-1726 for further assistance.

  • Page 14: Care And Maintenance

    Taking Down the Canopy PACKING THE CANOPY IN THE STORAGE BAG Position the cover bag strap to align with the 2 wheeled legs. Slide down the bag over the closed frame. Zip the cover closed. Secure the frame with the buckle and tighten the strap. Insert red plug as shown.Tighten the strap by pulling down the strap loop.

  • Page 15: Service Parts

    Service Parts To access spare parts, please call toll free 1-888-502-9589, Monday - Friday, 9:00 AM - 4:00 PM PST; or visit www.crown-shades.com; or email to care@OutdoorDesignz.com Reference No. UNCP98BK08 HCCHOOBK00 UNLC12BKHY Leg Cap-31.6Aluminum UNLS12BKHY Slider-31.6 Aluminum UNLS12BKLE Slider-LE31.6 Aluminum UNLS12BKRI Slider-Ri31.6 Aluminum UNLE12BKHY...
  • Page 16 Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-800-305-1726 HOMEDEPOT.COM Retain this manual for future use.
