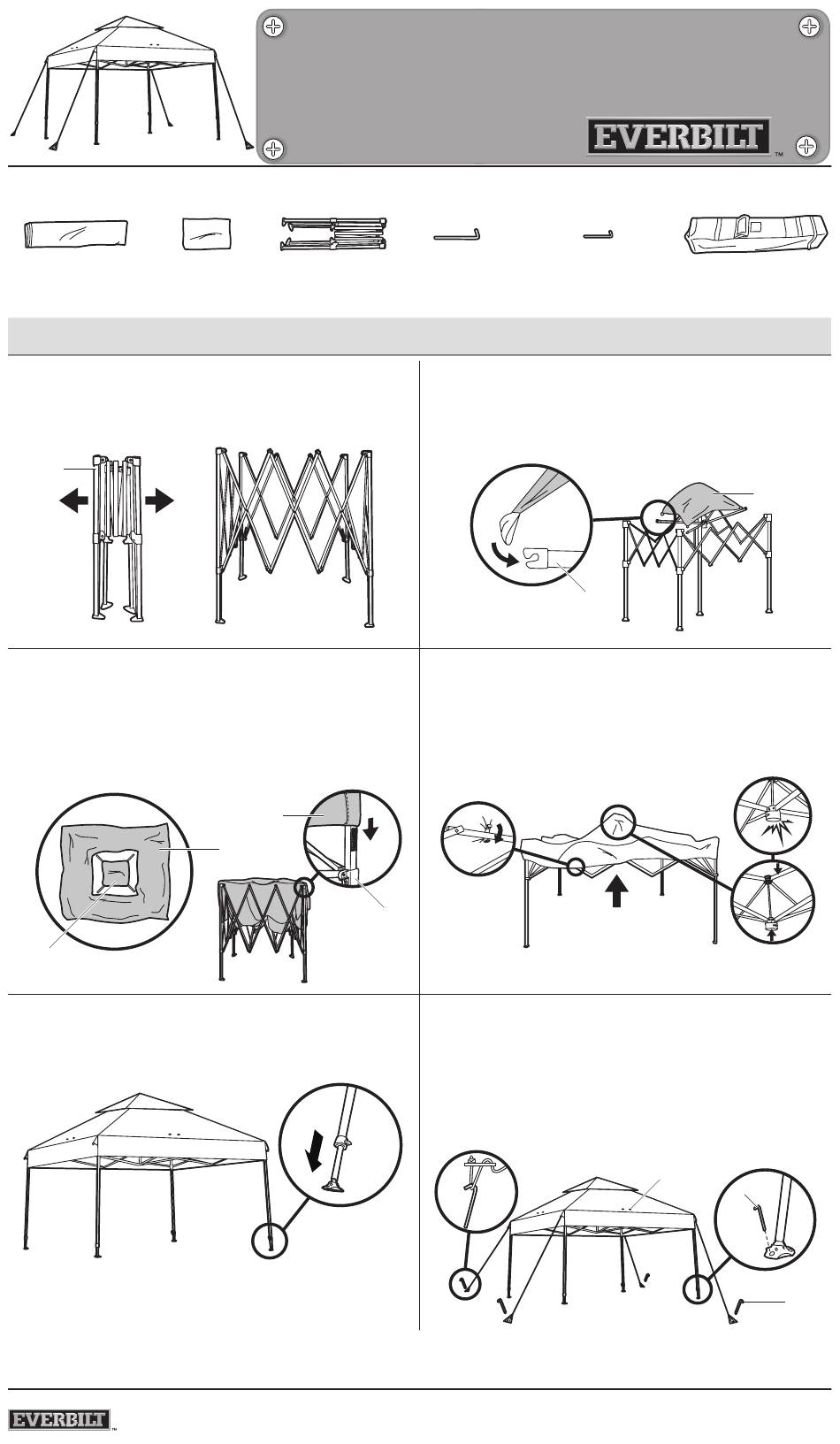

PACKAGE CONTENTS
A - Large canopy x1
B - Small canopy x1
Setting Up the Canopy
1
OPENING THE CANOPY FRAME
□ With a person on each end, lift and partially pull the canopy
frame (C) apart.
C
3
ATTACHING THE LARGE CANOPY
□ Unfold the large canopy (A) and place on top of the canopy
frame (C). Ensure that you separate the large canopy (A)
from the small canopy (B).
□ Secure the large canopy (A) to the corners of the canopy
frame (C) using the Velcro connections.
B
5
ADJUSTING THE CANOPY HEIGHT
□ Press the red button on each leg and raise or lower to adjust
the canopy height.
Use and Care Guide
10 ft. x 10 ft. Clia Canopy
C - Canopy frame x1
A
A
D - Stake x8
(for maintenantce only) x1
2
ATTACHING THE SMALL CANOPY
□ Position the small canopy (B) on the center of the frame (C)
and hook the four corners of the small canopy (B) to the four
hooks on the center structure of the frame (C).
4
LOCKING THE FRAME
□ From under the canopy, place one hand on the upper frame
and use the other hand to push the central hub straight up
until it clicks into the central pole. Finish attaching the large
canopy (A) inside the canopy frame using the Velcro loops.
C
6
SECURING THE CANOPY IN PLACE
□ Insert a stake (D) into the foot of each canopy leg.
□ Measure out from the each leg to a proper distance and
secure four stakes (D) to the ground. Tie the pre-attached
ropes to the stakes (D) in the ground. Ensure the rope has
the proper tension by adjusting the plastic adjusters on
the ropes. Do not attach the ropes to the drain holes.
Item #1002658108
1002658109
1002658106
Model #NS CLIA 100-G
NS CLIA 100-R
NS CLIA 100-B
E - Allen key
F - Wheeled storage bag
C
Drain Holes
Please contact 1-800-305-1726 for further assistance.
x1
B
D
D
HOMEDEPOT.com
