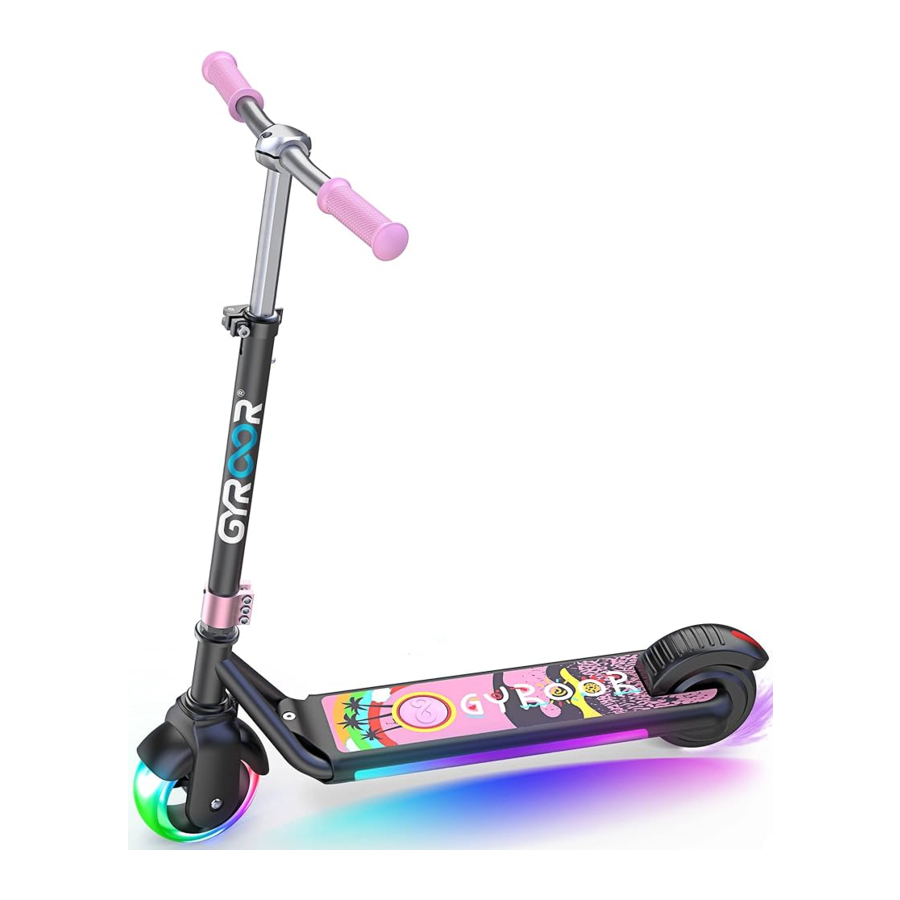

Gyroor H30 Pro - Electric Scooter Manual

Table of Contents

Contents

1 Product Accessories
2 Product Installation And Expansion Display
3 Introduction To Riding Operations
4 Battery And Charger
5 Package Attachment
6 Parameters
7 Safety Instructions
8 Contact
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

Product Accessories

Please read the operating instructions before riding. Beginner need to be accompanied by parents or adults to practise cycling in open spaces. The operator can ride independently only after mastering the kinetic energy and riding skills of the scooter.

Product Accessories

Product Installation And Expansion Display

Product Installation Diagram

Attach the horizontal rod to the handlebar fixed block
Use a screw to tighten the handlebar fixed block toward the arrow
Attach the vertical rod to the bottom plate and align it to the screw hole
Use a screw to tighten the cap in the direction of the arrow

Product expansion Diagram

UNSCREW IT in the direction of the Arrow
Press the vertical lever to load the marble, then grab the handle and pull it up and down
Tighten after adjusting the height

Introduction To Riding Operations

Starting method: hold the handle with both hands and gently push it forward. When you hear a "drop" from the buzzer, it means that the current speed is 4 KM/H. When the buzz remits three "drops", it means the current speed is 8 KM/H.

Gear change mode: After sliding the motor, press the pedal switch 5 times continuously to change gears with different speeds. When the speed setting is successful: when the current speed is 4 KM/H, the buzzer will sound 1 time. If the buzzer will sound 2 time means 6KM/H. If the buzzer will sound 3 time means 8KM/H.

Automatically turn off: The scooter will automatically turn off after 15 seconds of inactivity. If you need to use it, please slide the motor again.

Bluetooth music: Please connect your electric scooter to the Bluetooth of your mobile phone, Bluetooth name will shows " Wheel Music". Then open music, you will enjoy the music when riding.

Lights: After the motor is started, the lights cycle from cyan to seven colors, then turn off, and turn on again when the induction contact is pressed. When the scooter is started, press and release the foot switch, and the buzzer will emit a"drop". If it is not started, press and release the foot switch, the buzzer will not sound.

Riding method: Hold the handle with both hands, put one foot on the foot switch, and the other foot pedal back to accelerate. When the gliding speed reaches about 3KM / H,it will start slowly increasing the speed to the current gear. Set the speed, and keep driving at a uniform speed.

Stop method:

please use one foot to step on the rear wheel brake plate
the foot leaves the foot switch on the pedal to complete the stop.

Low battery indication: If the scooter emits a continuous sound of "drops, drops, drops", indicating that the battery is low, please charge the scooter in time.

Battery And Charger

Lithium Battery
When you get the electric assist scooter for the first time, please fully charge the battery before using it.

Please charge immediately after the car emits a low battery warning tone to avoid damage to the battery and affect your use.
When the battery is not used for a long time, please charge it at least once a month (when the battery is fully charged).
If the battery is not used for a long time, the battery level is lower than the battery protection status and cannot be used. Please contact the dealer quickly.

Note: The battery is damaged due to water, collision and other abnormal factors, and is not covered by the warranty.

Charger
The dedicated charger provided by the company has a charging protection function, and when the battery is 100% fully charged, it will automatically stop charging. Damage caused by other abnormal factors such as water ingress, collision, etc., is not covered by the warranty.

Open the charging rubber cover on the pedal and insert the charger output connector into the charging hole.
Plug the charger input power into the power socket (AC100V-240V)
The charger indicator is red, indicating that it is charging; when the charger indicator turns green, the battery is fully charged.
When charging the battery, please place it in a dry and ventilated environment.

Package Attachment

Attachment	Quantity
H30 Pro Electric Scooter	1
Charger	1
Instruction manual	1
Spare tool	1

Note: Actual shipment product performance and parameters are subject to change without notice.

Parameters

Bluetooth music	Wheel Music
Wheel size	front: 5",rear: 5.5"
Battery capacity	36V-2500mAH 90WH
Speed Range	6-12KM/h (4-8mph)
Charging time:	2 hours
Max speed:	12KM/h(8mph)
Max load capacity:	70kg(154lb)
Max climbing angle:	5º-15º
Lightning:	Front tire & Side board
Steering height:	87-97cm
Brakes	Footbrake
Dimensions	76.51634cm
Motor* 1	150W
color	Black/Blue/Pink

Safety Instructions

This product is a mini electric power-assisted scooter for children. It is restricted to one child. It should not be used by adults or two people at the same time. Children must be accompanied by parents or adults when using electric-assisted scooters.
When riding this product, please wear a safety helmet and other protective equipment.
Do not ride this product in places where it is unsafe or illegal such as motor vehicle lanes.
Please practice first in an open place and master the operation before driving.
Do not make dangerous moves or one-handed rides while the scooter is running. Keep your feet on the pedal.
Do not try to directly pass the step of 3 cm or more in the gap, which may cause the scooter to subvert, causing the rider to be injured or the car to be damaged; the steps below 3 cm should be avoided as much as possible.
When encountering rough or uneven road conditions, please slow down or get off.
Users must adjust the height of the product to the proper position to ensure safe driving.
Do not ride this product on slippery surfaces such as oil or ice on the surface.
Do not use this product below -5ºC
Do not use it in a sloping section over 15 degrees. For use over 15 degrees uphill, you need a pedal assist.
Do not immerse the product in water depths above 5 cm to avoid damage to the electrical parts of the vehicle due to water ingress.
In bad weather such as rain, snow and wind, please avoid riding as much as possible to avoid unnecessary damage caused by unnecessary factors.
If the product is fully charged, it will not be used for at least one month, and it must be charged at least once a month. If it is riding to no electricity (the electricity is exhausted), it must be charged once every 7 days.

Contact

Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with scooter.
Messenger: Gyroor (scan the QR code)
Email: Service@gyroor.com
Support@gyroorboard.com
Have your order number on hand when contacting Gyroor.
