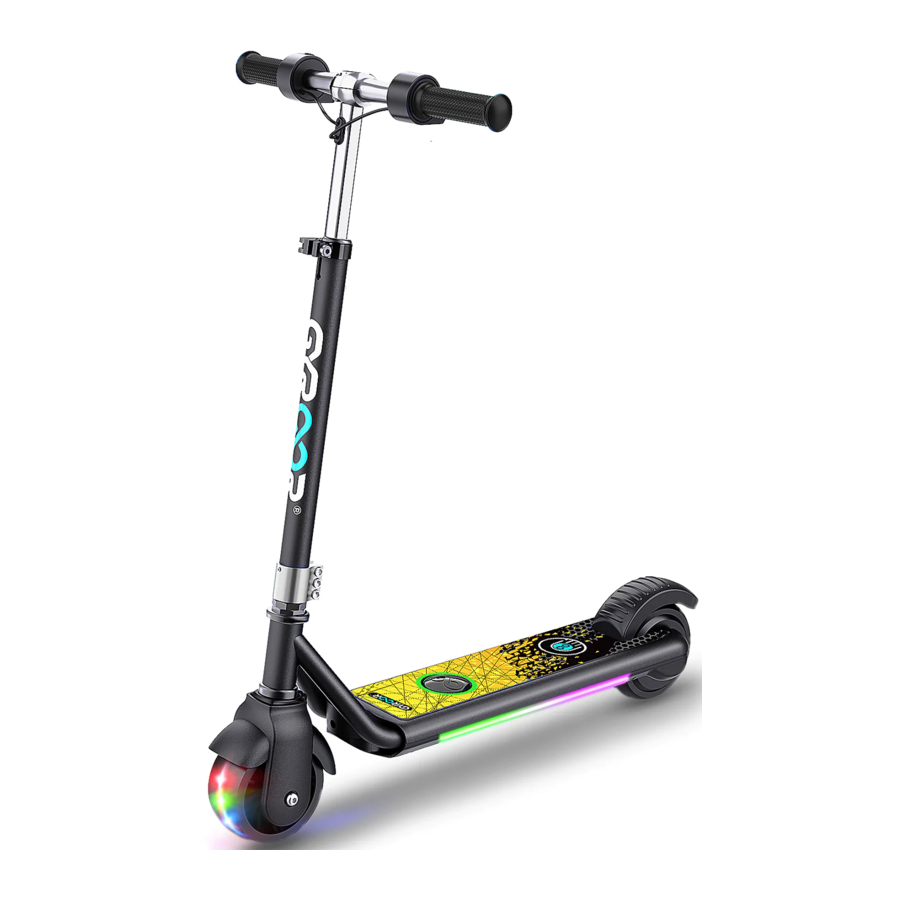

Gyroor H30 Max - Electric Scooter Manual

Product Installation Diagram

1. Attach the horizontal rod to the handlebar fixed block

2. Use a screw to tighten the handlebar fixed block toward the arrow

3. Attach the vertical rod to the bottom plate and align it to the screw hole

4. Use a screw to tighten the cap in the direction of the arrow


Product expansion Diagram

1. UNSCREW IT in the direction of the Arrow

2. Press the vertical lever to load the marble, then grab the handle and pull it up and down

3. Tighten after adjusting the height


Riding Operation

Starting scooter: Hold the handle with both hands and push it forward gently. When you hear a beep from the buzzer, it means the scooter is on.
Speed setting: While the scooter is on, press the acceleration s witch on the right handle to change speed. First gear's max speed can reach 6.5MPH, second gear's max speed is IOMPH.
Gear change mode: While the scooter is on, press and hold the black acceleration switch on the right handle and the red brake button on the left handle at the same time for 5 seconds to switch gears, and when you hear the scooter beeping twice, it is the 2nd gear, and one beep is the 1st gear.
Automatically turn Off: The scooter w ill automatically turn off after 10 minutes of standby; if you need to use it, simply restart.
Bluetooth music: Connect the electric scooter to the Bluetooth of your mobile phone by looking into 'Wheel Music'.
Foot pedal contour light: When the scooter is tuned on, the foot pedal contour light gradually changes colors until the scooter turns off.
Riding scooter: Hold the handle with both hands, step on the pedal with one foot, and push the other foot down onto the ground. When the sliding speed reaches about 3MPH, press the acceleration switch to slowly change gear.
Parking method: Step on the rear brake fender with one foot and press the left handbrake button at the same time until the speed drops.
LOW battery indicator: If the outline light of the scooter is flashing yellow, it means the battery is low; please charge the scooter in time.

Battery And Charger

Lithium Battery
On the scooters first use, the battery should be fully charged.

1. Please charge immediately after the scooter emits a low-battery warning tone to avoid damage to the battery.
2. When the battery is fully-charged but has not been used for a long time, recharge it at least once a month.
3. If the battery is unused for an extended period of time, the battery level will drop below its protection status and may be unusable. Please contact your dealer immediately.
   Note: If the battery has been damaged due to water, a collision, or other factors not caused by normal use and care, the warranty will not cover the cost of repair or replacement.

Charger
The charger included in the package has a charging protection function, so once the battery is fully charged, it will stop charging. Damage caused by other factors such as water ingress, collision, etc is not covered by the warranty.

1. To charge your battery, open the cover on the pedal and insert the chargers output connector into the charging hole.
2. Plug the power cord into a power outlet that supplies AC100V-240V.
3. When the charger indicator is red, it means the battery is charging. When the charge indicator turns green, the battery is fully charged
4. Place the battery in a dry, well-ventilated space when charging it.

Packing List

Parameters

Note : Actual parameters are subject to change without further notice Please contact us if you have any concerns about the product.

Learn more about the Gyroor Electric Scooter
Scan this OR code now.
