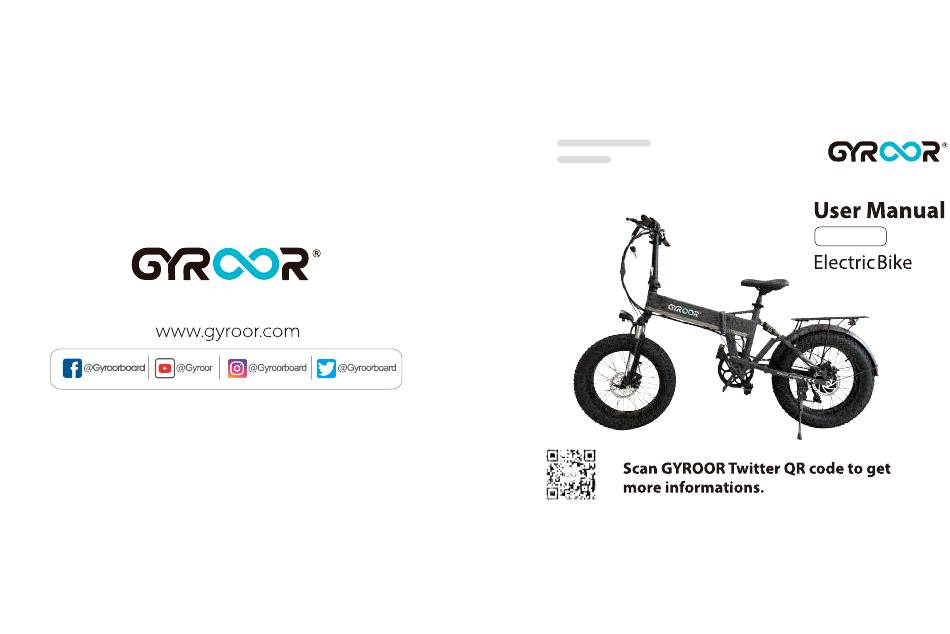

- Page 1 C5Max...
- Page 2 3. Please keep the original package one month at least. Shifter 4. Please charge once a month when not in use. 5. Please contact us directly if you need any help or experience any problems. headlight handlebar 6. Our after-sales support email help@gyroor.com. Speaker button Throttle LCD display...
- Page 3 Stem quick release Stem clamp Seat Tube quick release Charge port Frame quick Absorber release Backseat Head light Suspension fork lock Forks Pedal Battery keyhole Disc Gear brake Kickstand Disc brake...
-
Page 4: Packing List
PACKING LIST E-bike Charger Manual Seat Folding pedal Front fender Tool 1 set... - Page 7 shifter and brake are attached to the handlebar 12. Quick release and locking mechanisms Eusure all the quick release and locking mechanisms are adjusted properly.
- Page 8 The rear derailleur is operated by the right shifter.To operate you must be pedaling forward.You...
- Page 9 Operate Shifter Control the two button to adjust the gears from 1 to 7 or from 7 to 1.
-
Page 10: Charging The Battery
charging frame quick CHARGING THE BATTERY port release lock catch Builted in removeable battery. Please use manufacturer's original charger. Charge Through the Charging Port The charge port is on one side of the frame,please remove the dustproof plug then plug in the charger. keyhole When full charged,the indicator of charger turn green. - Page 11 For video guide,please search on detail page on amazon.
- Page 12 Stem and Handlebar Handlebar Installation Stem Installation Open the handlebar quick release and loosen it then adjust the handllebar to a suitable position, then tighten and close the As picture 1,insert the upper part of the stem into the lower part. quick release.
- Page 13 Seat Loosen the seat post quick release then insert the seat tube and adjust it to suitable height then tighten the quick release and close it.
- Page 17 Cruise Function Keep the same speed about 7 seconds enter into cruise mode, turn the throttle and brake will cancel the cruise mode. WARNING: Can not cancel the cruise mode until you turn the throttle and brake! Suspension Fork Lock Open the suspension fork lock to enable shock absorption, close the suspension fork lock to disable shock absorption.
- Page 21 down...
- Page 22 State meaning note Status code (decimal) mode The normal state mode highest mode keep The brake （Riding logo） Not implemented here 3mph to promote function 6 km/H cruise Real-time cruise Battery under voltage throttle 3mph hold down again ODO-TRIP-VOL-TIME-AVG-MAX-ODO...
