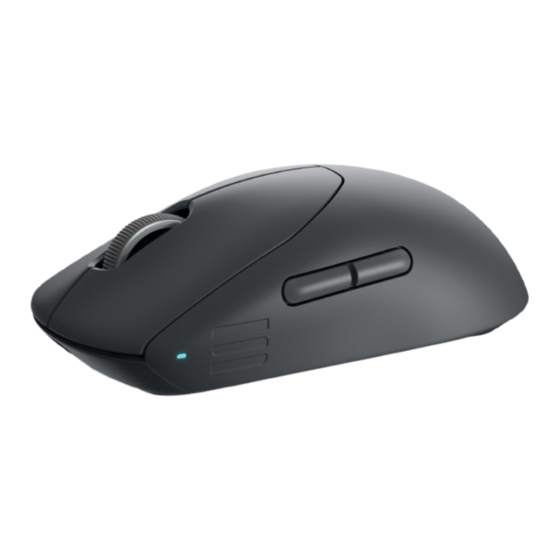

- Page 1 Alienware Pro Wireless Gaming Mouse User’s Guide Regulatory Model: PRO-MS/PRO-M-D...
- Page 2 NOTE: A NOTE indicates important information that helps you make better use of your computer peripheral. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Low battery ......12 Alienware Command Center (AWCC) ... .13 Installing AWCC through Windows Update . -
Page 4: What's In The Box
What’s in the box 1. Alienware Pro Wireless Gaming Mouse 2. Regulatory document 3. Quick Start Guide 4. Alienware sticker 5. USB-A to USB-C charging cable 6. Extender 7. Type-C dongle What’s in the box │... -
Page 5: Product Overview
Product overview 1. Left button 6. Preset button 2. Scroll wheel 7. USB-C Port 3. Forward button 8. Power Slider 4. Backward button 9. Dongle Storage 5. Right button Product overview │... -
Page 6: Features
Red (Default 2400) NOTE: The default DPI is 800. Setting DPI to zero will remove the DPI level. You can change the DPI setting and customize the DPI level using Alienware Command Center (AWCC). NOTE: 1. The default polling rate is 1000 Hz. -
Page 7: Setting Up The Mouse
Setting up the mouse Turning on your Alienware Pro Wireless Gaming Mouse. 1. Remove the protective sheet from the mouse. 2. Slide the power slider down to turn on the mouse. Setting up the mouse │... -
Page 8: 2.4G Wireless Connection Mode Using The Type-C Dongle
Setting up the mouse 2.4G Wireless connection mode using the Type-C dongle Connect the USB-C dongle to your computer. Setting up the mouse │... -
Page 9: Wireless Connection Mode Using The Extender
Setting up the mouse Wireless connection mode using the extender 1. Connect the USB-C side of the cable to the extender. 2. Connect the Type-C dongle to the extender. 3. Connect the USB-A side of the cable to your computer. NOTE: It is recommended to use dongle extender to enhance wireless connection stability. -
Page 10: Wired Connection Mode
Setting up the mouse Wired connection mode Connect the USB-C side of the cable to your mouse and connect the USB-A side of the cable to the USB port on your computer. NOTE: The battery starts charging automatically in wired mode. Setting up the mouse │... -
Page 11: Charging The Mouse
Charging the mouse 1. Connect the USB-C end of the charging cable to the USB-C port on the mouse. 2. Connect the other end of the USB charging cable to an available USB port on your desktop or laptop. 3. Charge the mouse for three hours during the first charge. NOTE: 1. -
Page 12: Low Battery
Charging your mouse Low battery When the battery is lower than 10%, the LED on the side of the mouse blinks in amber color. NOTE: Battery Saver is off by default when out of the box. Charging your mouse │... -
Page 13: Alienware Command Center (Awcc)
Download the appropriate software type for your computer. NOTE: • If you have a non-Alienware or a non-Dell computer, click the Download button o of the Alienware Command Center Application for third-party computer. • If your computer already has AWCC preinstalled, and you want to reinstall the software, click on the Download button of the Alienware Command Center Application. -
Page 14: Using Alienware Command Center 6.1 Or Later
Alienware Command Center (AWCC) Using Alienware Command Center 6.1 or later Alienware Command Center is an application to configure supported Dell gaming devices. Dashboard screen Dashboard screen on non-Alienware and non-Dell computers Alienware Command Center (AWCC) │... - Page 15 Alienware Command Center (AWCC) Key features 1. Click the Alienware Pro Wireless Gaming Mouse image on the DASHBOARD to go to ALIENFX. 2. In the SYSTEM tab, select ALIENFX PRESET. You can perform the following functions: a. KEY BINDS: Reassign the function of the buttons and scroll wheel.
-
Page 16: Assign And Create Keybind
Alienware Command Center (AWCC) Assign and create Keybind Keybind is a feature for the user to reassign the original function of the buttons, the scroll wheel and the DPI button to another function. Keybind creation 1. Click the ALIENFX icon. - Page 17 Alienware Command Center (AWCC) Keybind assignment 1. Click the ALIENFX icon. 2. In the SYSTEM tab, select ALIENFX PRESET. Select KEY BINDS from the top-right panel. 3. Drag an existing Keybind from the All Keybinds or My Keybinds folder and drop it on any of the six buttons or the scroll wheel. There are a number of predefined keybinds that can be customized: a.
-
Page 18: Controls
Alienware Command Center (AWCC) Controls Device settings 1. Click ALIENFX icon. 2. In the SYSTEM tab, select ALIENFX PRESET. Select SETTING from the right panel, and then click Controls. 3. In the SETTING tab, you can configure the following settings: a. -
Page 19: Configuring Dpi Level And Polling Rate
Alienware Command Center (AWCC) Configuring DPI level and Polling rate Alienware Pro Wireless Gaming Mouse can be configured and preset with five different accuracy levels in the Dots Per Inch (DPI) unit and five different polling rates. 1. Click the ALIENFX icon. - Page 20 Alienware Command Center (AWCC) 5. Switch the DPI and polling rate by pressing the Preset button. 6. Configure the polling rate. To configure up to 8KHz in wired mode. a. Connect the cable to the mouse. b. Change the polling rate of every DPI stage from the Polling Rate drop-down list at the bottom of each DPI level slider.
-
Page 21: Calibration Of Lift-Off Distance (Lod)
Calibration of Lift-Off Distance (LOD) Alienware Pro Wireless Gaming Mouse enables you to calibrate the Lift-Off Distance (LOD). The LOD of the Alienware Pro Wireless Gaming Mouse can be tracked when the mouse is lifted from the tracking surface at or below the LOD setting. -
Page 22: Battery
Alienware Command Center (AWCC) Battery Alienware Pro Wireless Gaming Mouse enables you to adjust the Battery Saver mode to reduce its battery consumption. Battery saver 1. Click ALIENFX icon. 2. In the SYSTEM tab, select ALIENFX PRESET. Click SETTING from the right panel, and then click Battery. -
Page 23: Sleep Mode
Alienware Command Center (AWCC) Sleep mode Alienware Pro Wireless Gaming Mouse enables you to adjust the Battery Saver mode to reduce its battery consumption. 1. Click ALIENFX icon. 2. In the SYSTEM tab, select ALIENFX PRESET. Click SETTING from the right panel, and then click Battery. -
Page 24: Update Firmware And Restore Factory Defaults
Alienware Command Center (AWCC) Update firmware and restore factory defaults You can update the firmware of the dongle and the mouse when a new version is available. In addition, you can also reset the mouse setting to its factory settings with a single click. -
Page 25: Firmware Update
Alienware Pro Wireless Gaming Mouse. NOTE: You cannot update until you have connected both the dongle to a USB port and the Alienware Pro Wireless Gaming Mouse by the cable to another USB port. -
Page 26: Usb Dongle Pairing
USB dongle pairing You can pair the Type-C dongle or re-pair the dongle with your Alienware Pro Wireless Gaming Mouse. 1. Go to www.dell.com/drivers. 2. Type Alienware Pro Wireless Gaming Mouse in Identify your product or search support text box, and then click Search. -
Page 27: Specifications
Specifications General Model number Alienware Pro Wireless Gaming Mouse Connection type Wired and Wireless 2.4 GHz Supported operating systems Microsoft Windows 10 – RS3 or later (2.4 GHz) Electrical Operating voltage Charging current Maximum up to 0.37 A Physical characteristics Mouse weight <60 g (0.13 lb) -
Page 28: Troubleshooting
5. Restart the computer. Mouse is not running 1. 1. Open the Alienware Command Center (AWCC) application and ensure that the based on the configuration selected in the Alienware selected configuration is set up and saved. - Page 29 Troubleshooting Problems Possible solution Resolving cursor issue • Turn ON the power switch on the bottom of the mouse and try again. 1. In wired mode, connect the USB charging cable to another USB port. Wait until a notification appears indicating that the driver installation is complete before you use the mouse.
-
Page 30: Statutory Information
For European, Middle Eastern, and African customers: Alienware-branded products that are sold and used are subject to applicable national consumer legal rights, the terms of any retailer sale agreement that you have entered into (which will apply between you and the retailer) and Dell’s end user contract terms.
