MODEL # MSC-2858

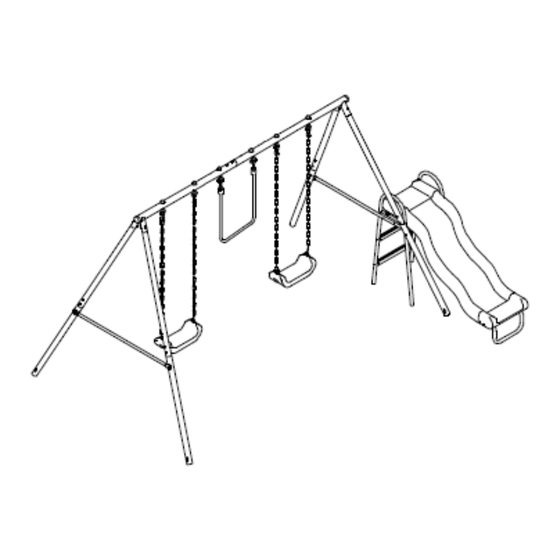

4 STATION SWING SET
ASSEMBLY INSTRUCTION, CARE, MAINTENANCE AND USER'S GUIDE
This product is designed to be used simultaneously by up to 4 children between the ages 3 to 8.
Maximum weight of each user is 100lbs(45kg). Combined weight of all users must not exceed 400lbs
(182kg).
Carefully read this entire instruction manual before you start to assemble or use this swing set.
You must follow all instructions and warnings while using this equipment.
Do not use this swing set on hard packed soil, concrete, or any kind of hard surface.
This equipment must be anchored (anchors not included). You should consult your local contractor
regarding the best way to anchor the product in your location of installation.
Assembly requires at least two adults.
For customer service, please call 1-866-632-1718 Monday-Friday 9:00am-5:00pm Eastern Time
SPORTSPOWER LTD, FLAT M, 3/FLOOR, KAISER ESTATE PHASE 3, 11 HOK YUEN STREET, HUNGHOM, KOWLOON, HK.
OWNER'S MANUAL
FOR RESIDENTIAL USE ONLY
Save this instruction manual for future reference
DO NOT RETURN TO THE STORE.
or visit our website at
SPORTSPOWER LTD
WARNING
-
www.sportspowerltd.net
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPORTSPOWER MSC-2858
Summary of Contents for SPORTSPOWER MSC-2858
- Page 1 DO NOT RETURN TO THE STORE. For customer service, please call 1-866-632-1718 Monday-Friday 9:00am-5:00pm Eastern Time or visit our website at www.sportspowerltd.net SPORTSPOWER LTD SPORTSPOWER LTD, FLAT M, 3/FLOOR, KAISER ESTATE PHASE 3, 11 HOK YUEN STREET, HUNGHOM, KOWLOON, HK.
- Page 2 INTRODUCTION Dear Valued Customer, Congratulations on your Sportspower play set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions and warnings that must be followed to prevent injuries. This play set is for residential use only. This play set is NOT intended for public or commercial use.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLYING OR USING THIS EQUIPMENT AGE LIMIT This product is designed to be used safely by up to four (4) children between the ages of 3 to 8. Maximum user weight is 100 pounds (45.4kg) each with a combined maximum weight of 400 pounds (182kg). ... - Page 4 Some consumers want an anchoring system that allows the product to be moved to different locations. Other consumers want to keep their swing set in a permanent location. There are different types and different methods of anchoring this product. Sportspower does not make a specific anchoring recommendation as each consumers need and conditions can vary.
- Page 5 PLAY SUPERVISION DO NOT allow more than one child to play on the individual swing, trapeze or slide component at any one time. The maximum user limit for the flying saucer and glide ride is two persons. DO NOT allow children to stand on any of the seats or rides. ...
- Page 6 When conducting inspections, it is recommended that you use the Suggested General Maintenance Checklist and Routine Inspection and Maintenance Issues checklists provided by the US Consumer Product Safety Commission, copies of which are contained in the user manual. CARE & MAINTENANCE INSTRUCTIONS ...
- Page 7 IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are more than 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall.
- Page 8 ANCHORING (NOTE:ANCHORS ARE NOT INCLUDED-MUST BE PURCHASED SEPARATELY) There are different ways of anchoring the equipment, depending on the type of ground on which the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping. You should consult your local contractor to decide the most appropriate way to anchor the equipment in your location.
- Page 9 FRAME LEG CONCERETE 12-5/8” 5” 2” BRICK OR GRAVEL BED Note: The maximum fall height for this product is 6 feet. The minimum ground clearance between the bottom of the suspended plays and the playing or ground surface must be 8 inches. You must maintain a minimum of 8 inches of ground clearance.
-
Page 10: Disposal Instructions
CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON: Tighten all hardware. Lubricate all metallic moving parts per manufacturer’s instructions. Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. -
Page 11: Tools Needed
TOOLS NEEDED Please prepare the following tools prior to assembling this equipment. Special Socket Wrench (included) Tape Measure ( Not included) Hammer Wrench (included) ( If you intend to install anchor,this is needed) (Not included) Wrench (included) Small allen wrench( included ) Flat head and Philips head screwdriver Big allen wrench (Included) (Not included) - Page 12 Hardware (actual size but for reference only)
- Page 16 ASSEMBLY INSTRUCTIONS Place the playground equipment on level ground and not less than 6ft (1.8m) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry line, or electrical wires. Do not install the playground equipment over concrete, asphalt, packed earth, or any other hard ...
- Page 17 NOTE: 1.Do not over-tighten the nuts and bolts initially. 2.Do not snap in the cover of the plastic cap until you have finished assembling the entire frame and have gone back to fully tighten all nuts and bolts. Step 1: Insert small end of A1 into A2 ,Secure with B1,B5,B4,B3 .
- Page 18 Step 2 Insert small end of A4 into the socket at the end of A1 .Align holes and secure withB1,B5,B4 and B3.Repeat in the same manner on the other side by attaching A4 to A2.
- Page 19 Step 3 Insert A5 into A4. Align holes and secure with B1, B5, B4 and B3. Attach A6 to A5. Align holes and secure with B1，B6,B4 and B3. Repeat in the same manner on the other side by attaching A7 to A5.
- Page 20 Step 4 Screw J3 (pre-assembled with J1 and J3) into the holes located on A2 and secure with J8 and J6. Repeat in the same manner for the other swing by attaching J3 to A1. Step 5 Attach swing seats K1 to J3. Secure with J7, J9 and J6...
-
Page 21: Trapeze Assembly
Trapeze Assembly Step 6 Attach S1 (which is pre-assembled with P1 and S1) to A1 and A2. Secure using S3 and S2. -
Page 22: Slide Assembly
Slide Assembly Step 7 Attach X5-N to Y2.Secure using Z9,Z6 and Z4. Attach X4-N to Y2. Note:Make sure that the bolt holes face up. - Page 23 Step 8 Attach X6 to X1-N and X2-N. Secure each side using Z8,Z6 and Z4. Attach X3-N to X1-N and X2-N. Align holes and hold in position.
- Page 24 Step 9 Insert the end of X4-N into X1-N,secure using Z1,Z6,Z3 and Z5; in the same way,fix the other end of X4-N with X2-N. Insert Z2 into Z6 and insert it into X1-N,X3-N and Y2 as shown. Repeat for the other side. Secure with Z6 and Z4.
- Page 25 Step 10 Attach Y1 to X1-N and A7, secure using Z7,Z6 and Z3,Z5.
- Page 26 Congratulations! You have now completed installing the equipment. Please make sure to go back and check all hardware and ensure all bolts and nuts are securely tightened before using the playground equipment. ! Warning: Do not let children use the playground equipment until it is properly assembled and anchored.
-
Page 27: Manufacturer's Limited Warranty
MANUFACTURER’S LIMITED WARRANTY Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for ninety (90) days after the date of purchase. Extended warranty from 90 to 180 days will be offered to those customers registering their products at www.sportspowerltd.net...
