ASSEMBLY INSTRUCTIONS AND USER'S MANUAL

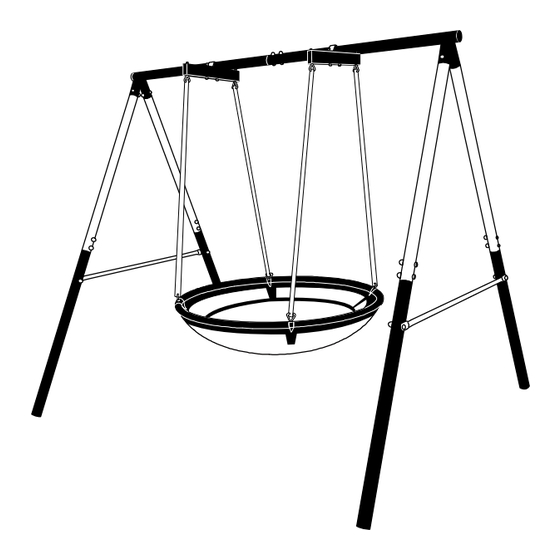

DELUXE SAUCER SWING
MODEL# MSC- 4132
FOR RESIDENTIAL USE ONLY
Save this instruction manual for future reference
For Customer Service, please call 1-866-370-2131 or visit
www.sportspowerltd.net
Monday – Friday 9:00 AM – 5:00 PM Eastern Time
SPORTSPOWER LTD.
LEVEL 20, PARKVIEW CENTRE,7 LAU LI STREET, CAUSEWAY BAY,HONG KONG
US Toll Free Number 1-800-497-6106
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPORTSPOWER MSC- 4132
Summary of Contents for SPORTSPOWER MSC- 4132

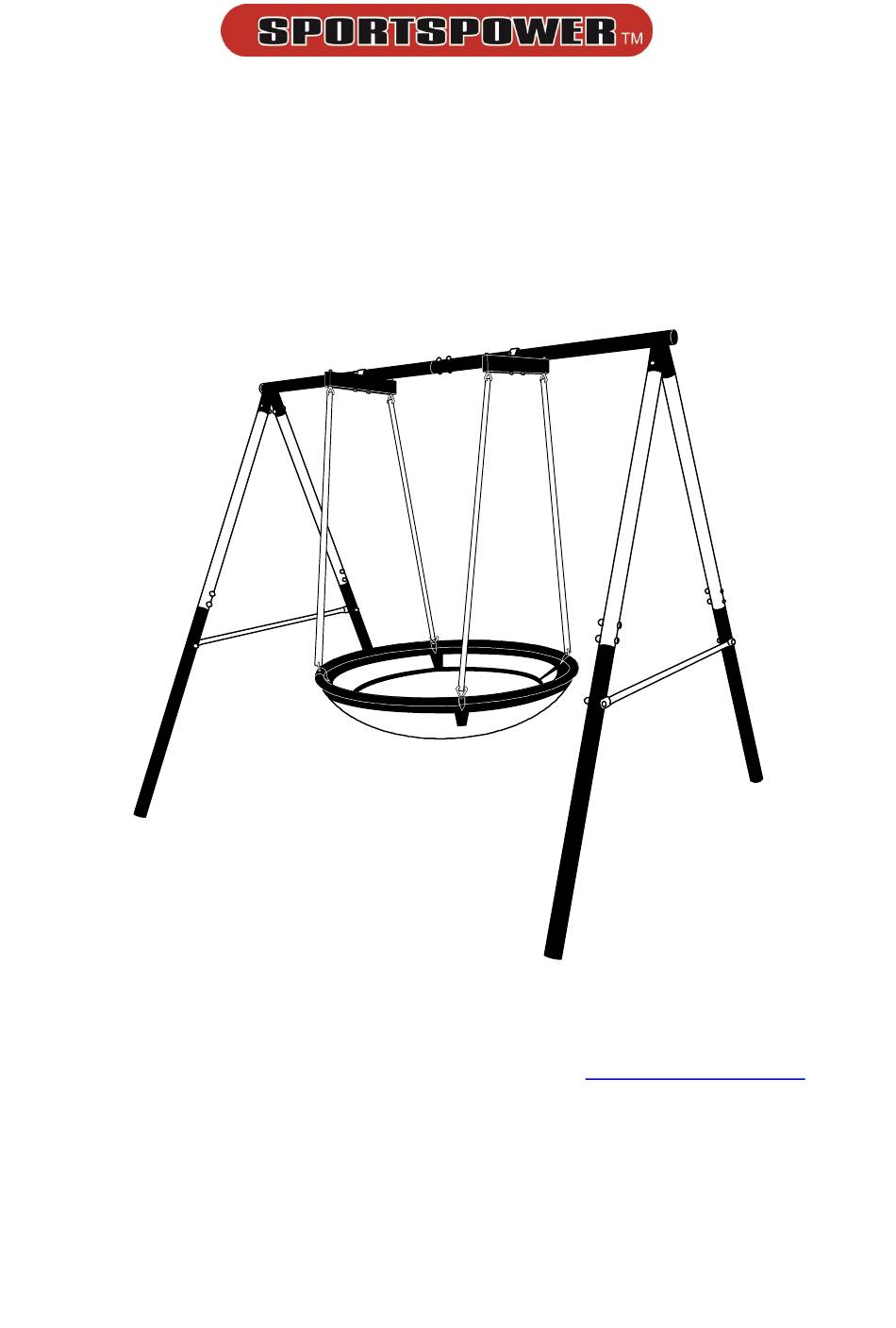

- Page 1 ASSEMBLY INSTRUCTIONS AND USER’S MANUAL DELUXE SAUCER SWING MODEL# MSC- 4132 FOR RESIDENTIAL USE ONLY Save this instruction manual for future reference For Customer Service, please call 1-866-370-2131 or visit www.sportspowerltd.net Monday – Friday 9:00 AM – 5:00 PM Eastern Time SPORTSPOWER LTD.
- Page 2 Dear Valued Customer, Congratulations on your Sportspower play set purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific instructions and warnings that must be followed to prevent injuries. This play set is for residential use only. This play set is NOT intended for public or commercial use. The warranty will be voided if the play set is used in a commercial application.
-
Page 3: Table Of Contents
Trhbrt TABLE OF CONTENTS IMPORTANT WARNINGS AND INSTRUCTIONS…………………………………………………….....….. 4 IMPORTANT CONSUMER INFORMATION SHEET……………………………………………………..….. 6 OPERATING INSTRUCTIONS……………………………………………………..….. …………..……..7 ANCHORING..……………………………….......………………………………………………………….…..…... 8 CARE AND MAINTENANCE CHECKLIST……………....………………………………………..….. 10 COMPLETE PRODUCT VIEW…………...………...…………………………………………………………………….…..11 PARTS LIST…………………………………...…………………………………………………….....……………………..12 HARDWARE PARTS LIST………………………...…………………………………………………………………….…..13 ASSEMBLY AND INSTALLATION INSTRUCTIONS……………………………….…………..14 AREA OF INSTALLATION –... -
Page 4: Important Warnings And Instructions
Trhbrt IMPORTANT WARNINGS AND INSTRUCTIONS WARNING READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS EQUIPMENT AGE LIMIT This product is designed to be used by maximum two (2) children between the ages of 3 to 8. Maximum user weight is 110 lb (50kg) each with a combined maximum weight of 220 lb (100kg). ... - Page 5 Trhbrt IMPORTANT WARNINGS AND INSTRUCTIONS INSPECTION PRIOR TO EACH USE OR DAILY INSPECTION DO NOT use the equipment if any bolts or nuts are missing or loose. ALWAYS check to ensure the equipment and all parts are well secured and stable before each use. ...
-
Page 6: Important Consumer Information Sheet
Trhbrt IMPORTANT CONSUMER INFORMATION SHEET The Consumer Product Safety Commission estimates there are about 200,000 playground related injuries involving children each year. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall. -
Page 7: Operating Instructions
Trhbrt OPERATING INSTRUCTIONS Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Warning the owner to instruct children not to walk close to, in front of, behind, or between moving items. Warning the owner to instruct children not to twist swing chains or ropes or loop them over the top support bar since this may reduce the strength of the chain or rope. -
Page 8: Anchoring
Trhbrt ANCHORING (NOTE: ANCHORS ARE NOT INCLUDED-MUST BE PURCHASED SEPARATELY) There are different ways of anchoring the equipment, depending on the type of ground on which the equipment is to be installed. Make sure that all anchors are below ground level to prevent tripping. - Page 9 Trhbrt ANCHORING FRAME 12-5/8” CONCRETE 5” 2” BRICK OR GRAVEL Note: The maximum fall height for this product is 6 feet. The minimum ground clearance between the bottom of the suspended plays and the playing or ground surface must be 8 inches.
-
Page 10: Care And Maintenance Checklist
Trhbrt CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON: Tighten all hardware. Lubricate all metallic moving parts per manufacturer’s instructions. Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. -
Page 11: Complete Product View
Trhbrt COMPLETE PRODUCT VIEW... -
Page 12: Parts List
Trhbrt PARTS LIST... -
Page 13: Hardware Parts List
Trhbrt HARDWARE PARTS LIST NOTE: EXTRA HARDWARE MAY BE INCLUDED Measuring Hardware It is very important that you get the right hardware in the correct place when assembling the unit. You can use the ruler to measure your hardware or you can compare the hardware to the hardware identification page. NOTES: 1) Do not include bolt head when measuring length of bolt. -
Page 14: Assembly And Installation Instructions
Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 1 Connect Left and Right Top Bars (# A and # B) together. Secure with B1, B5, B4 and B3 as shown in the enlarged diagram. NOTE: For easier assembly, do not tighten the bolts all the way initially to allow room for adjustment. You must go back and fully tighten all bolts after the entire swing set is assembled. - Page 15 Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 2 Insert Top Legs (# D) into the sockets on the assembled top bar. Align the holes and secure with B1, B5, B4 and B3. Repeat the same process for all four legs shown below.
- Page 16 Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 3 Connect Lower Legs (# E) to Top Legs (# D). Secure using B1, B5, B4 and B3. Repeat the same process for all four legs shown below.
- Page 17 Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 4 Attach Cross Rails (# F) to the outer sides of Lower Legs (# E). Secure using B1, B6, B4 and B3 as shown below. REMINDER: Once you have completed assembling the swing frame, make sure to go over the previous steps and fully tighten all the nuts and bolts and close the plastic caps.
-
Page 18: Area Of Installation - Two Person Flying Saucer
Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 5 Slide Flying Saucer Tubes (# R4) into the pockets of Flying Saucer (# R7) as shown below. Connect the four tubes together and align the holes with the round holes facing downward. Diagram 5-1... - Page 19 Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS Connect Short Eye Bolt with Chain (# R1) to the flying saucer. Secure with F4 and F3 as shown in Diagram 5-2. Diagram 5-2...
- Page 20 Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS STEP 6 Attach Brackets (# R3) to the top bars A and B using F1, F2 and F3 as shown in Diagram 6-1 Diagram 6-1...
- Page 21 Trhbrt ASSEMBLY AND INSTALLATION INSTRUCTIONS Insert Long Eye Bolt with Chain (# R2A) into R3 and secure with F2 and F3 on both sides as shown in Diagram 6-2 Diagram 6-2 Congratulations! You have now completed installing the equipment. Please make sure to go back and check all hardware and ensure all bolts and nuts are securely tightened before using the playground equipment.
-
Page 22: Warranty Information
MANUFACTURER’S LIMITED WARRANTY Trhbrt Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for one (1) year after the date of purchase. Extended warranty from 90 to 180 days will be offered to those customers registering their products at www.sportspowerltd.net within 14 days from the date...
