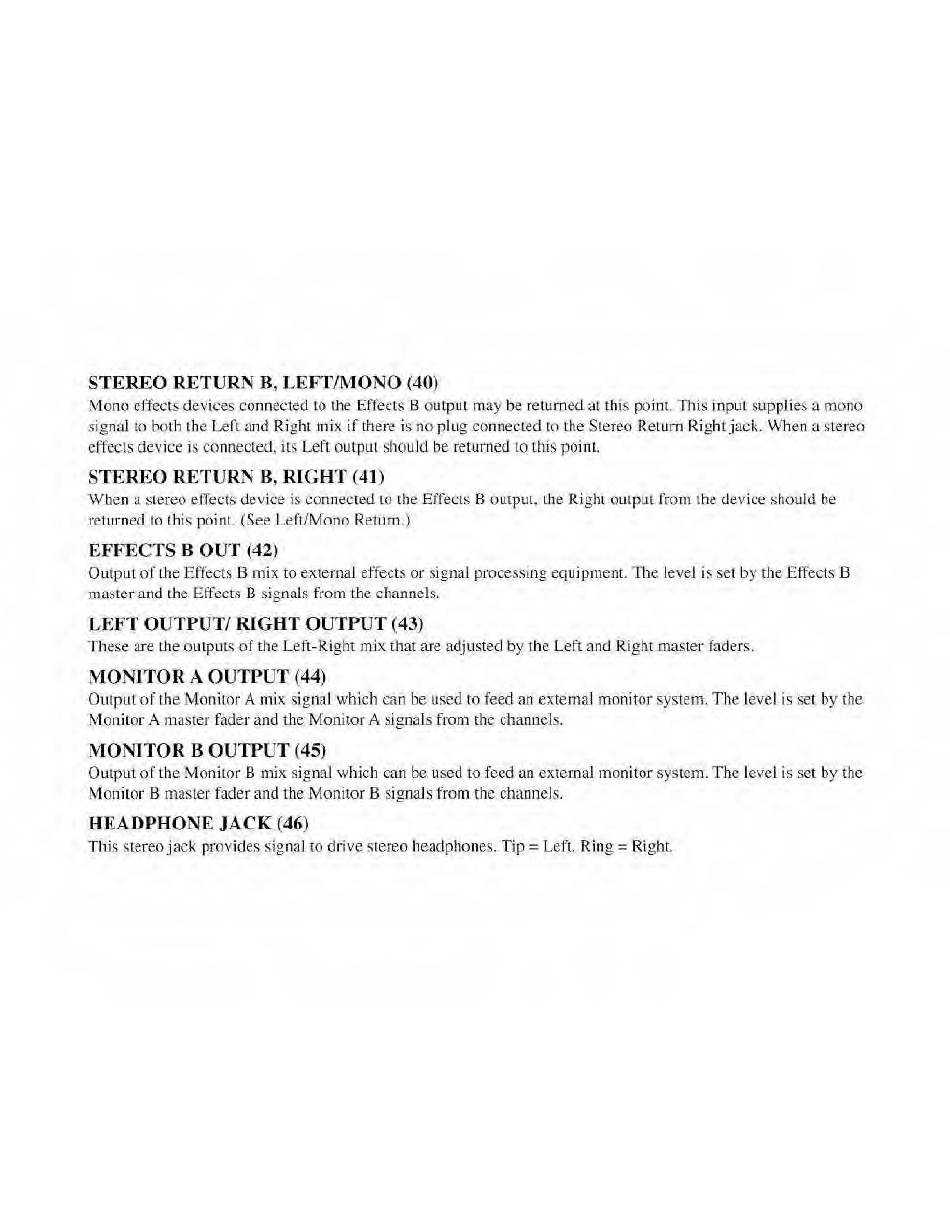

STEREO RETURN B, LEfT/MONO {4(M
Mono effects devices connected lo the EtTecis B output be returned at this point. This input supplies a mono
signal to both the Left and Right mix if there is no plug connected to the Stereo Return Right jack. When a stereo
effects device is connected, its Left output should be reiumed to this point,
STEREO RETURN B, RIGHT (41)
When a stereo elfecis device is connected to the Effects B output, the Right output from the device should be
retirmed in this point. (See Left/Mono Return.)
EFFECTS B OUT (42)
Output of the Effects B mix to external effects or signal processing equipment. The level is set by the Effects B
master and the Effects B signals from the channels.
LEFT OUTPUT/ RIGHT OUTPUT (43)
riie^ie are the ouipuB of the Left-Right mix that are adjusted by the Left and Right master faders.
MONITOR A OUTPUT (44)
Output of the -Monitor A mix signal which can be used to feed an external monitor system. The level is set by the
Monitor A master fadei* and the Monitor A signals from the channels.
MONITOR B OUTPUT (45)
Output of the Monitor B mix signal which can be used to feed an external monitor system. The level is set by the
Monitor B master fader and the Monitor B signals from the channels.
HEADPHONE J.ACK (46)
This stereo jack provides signal to drive stereo headphones. Tip= Left. Ring = Right.
