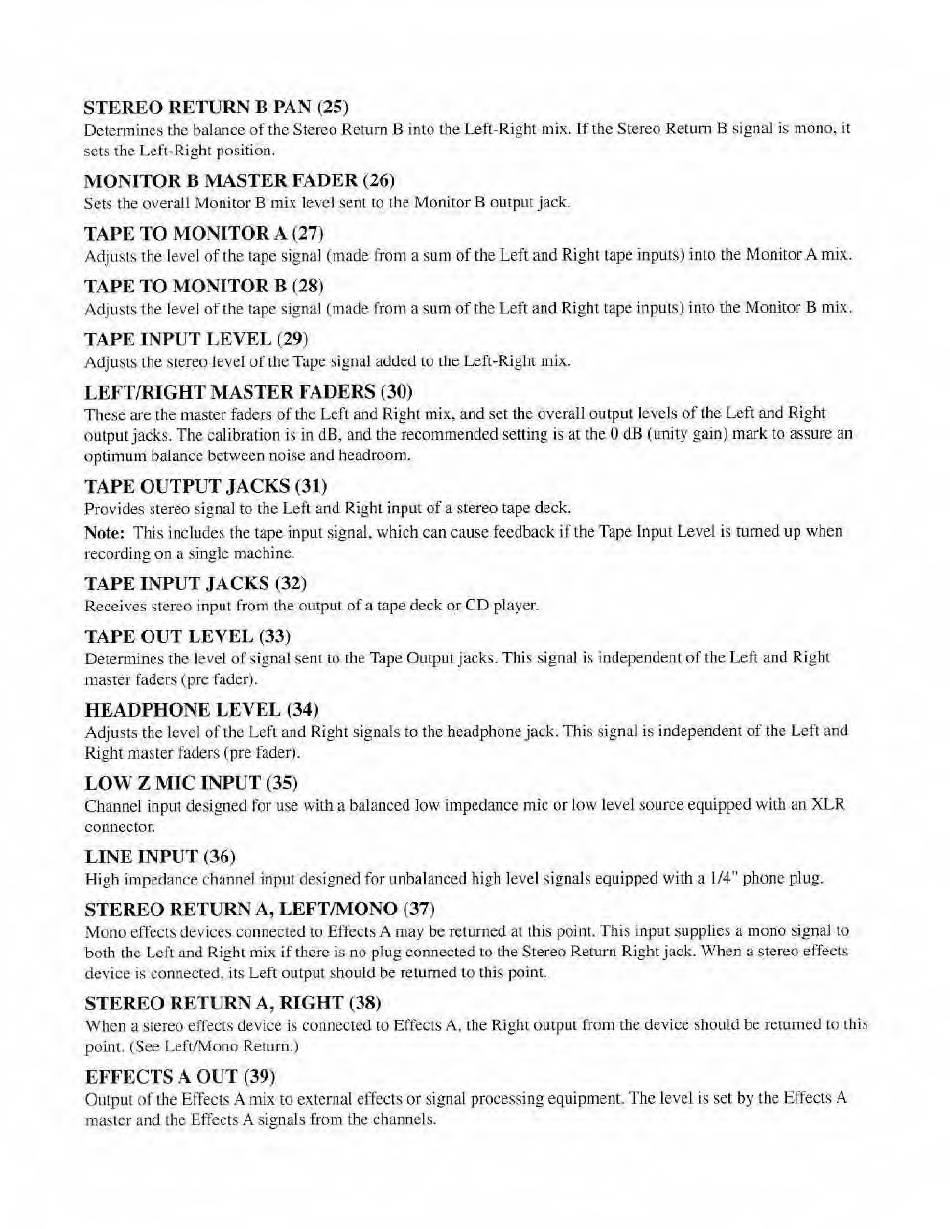

STEREO RETURN B PAN (25)
Determines the balance of the Stereo Return B into the Lefl-Right mix. If the Stereo Return B signal is mono, it
sets the Lefl-Right position.
MONITOR B MASTER FADER (26)
Sets the overall Monitor B mix level sent to the Monitor B output jack.
TAPE TO MONITOR A (27)
Adjusu the level of the tape signal (made frotn a sum of tlie Left and Right tape inputs) into the Monitor A mix.
TAPE TO MONITOR B (28)
Adjusts the level of the tape signal (made from a sum of the Left and Right tape inputs) into the Monitor B mix.
TAPE INPUT LEVEL (29)
Adjusts the stereo level of die Tape signal added lo the Left-Right mix.
LEFT/RIGHT MASTER FADERS (30)
TTiese are the master faders of the Left and Right mix, and set the overall output levels of ihe Left and Right
output jacks. The calibration is in dB, and the recommended setting is at the 0 dB (unity gain) mark to assure an
optimum balance between noise and headroom.
TAPE OUTPUT JACKS (31)
Provides stereo signal to the Left and Rig hi input of a sto'eo tape deck
Note: This includes the tape input signal, which can cause feedback if the Tape Input Level is turned up when
recording on a single machine.
TAPE INPUT JACKS (32)
Receives stereo input from the output of a tape deck or CD player.
TAPE OUT LEVEL (33)
Determines the level of signal sent it> the Tape Output jacks. This signal is independent of the Left and Right
master faders (pre fader),
HEADPHONE LEVEL (34)
Adjusts the level of the Left and Right .signals to the headphone jack. This signal is Independent of the Left and
Right master faders (pre fader).
LOW Z MIC INPUT (35)
Channel input designed for use with a balanced low impedance mic or low level source equipped with an XLR
connector.
LINE INPUT (36)
High impedance channel input designed for unbalanced high level signals equipped with a 1/4" phone plug.
STEREO RETURN A, LEFT/MONO (37)
Mono effects devices connected to Effccls Ainay be returned at this point, This input supplies a mono signal to
both the Left and Right mix if tlicrc is no plug connected to the Stereo Return Right jack. When
a
stereo effects
device is connected, its Left output should be relumed to this point.
STEREO RETURN A, RIGHT (38)
When a siereo effects device is connected to Effects A. the Right output from the device should be returned to this
point. (See Left/Moiio Return.)
EFFECTS A OLIT (39)
Output of the ElTecis Amix to external effecl.s or signal processing equipment. The level i^ set by the Effeas A
master and the Effects
A.
signals from the channels.
