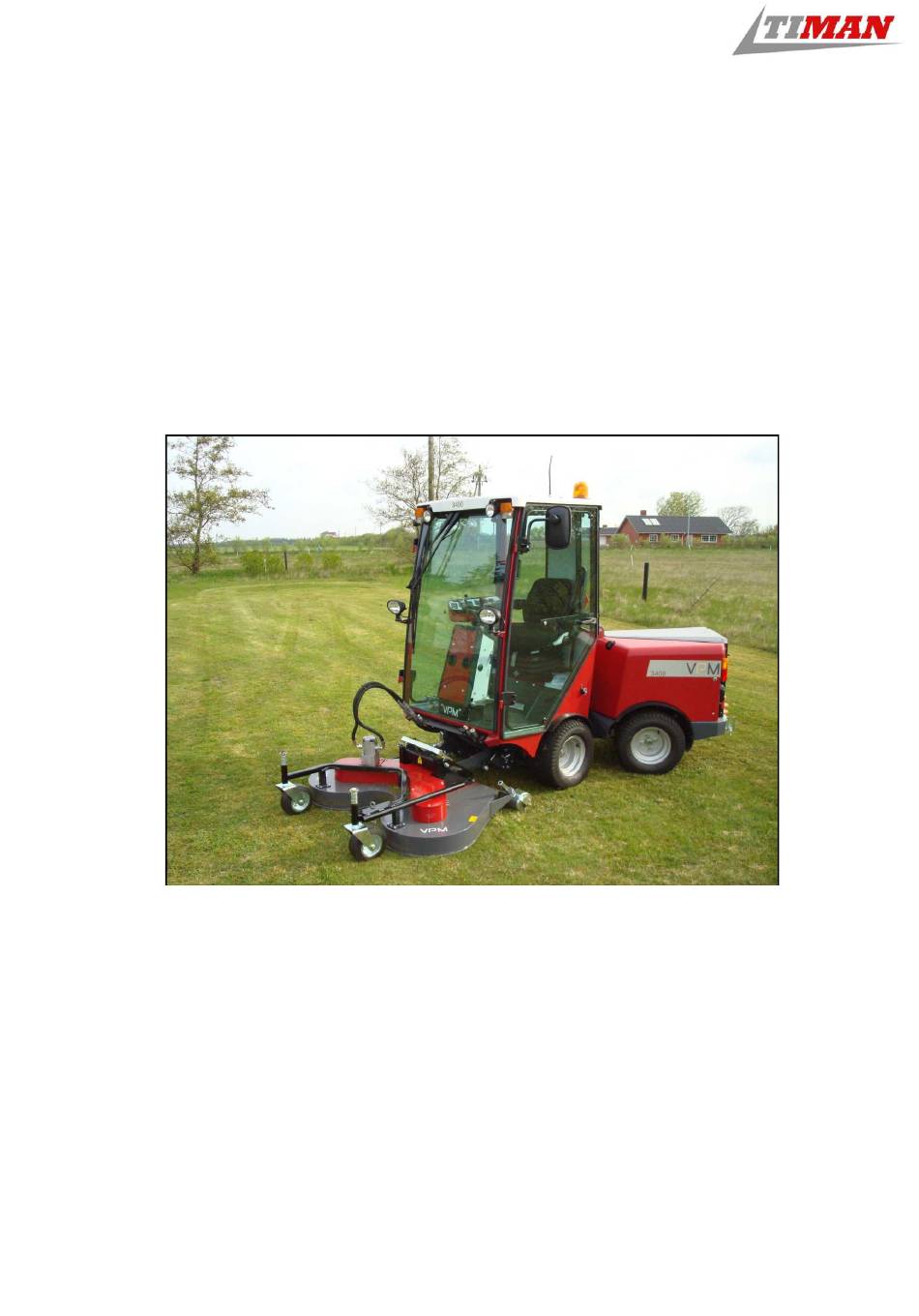

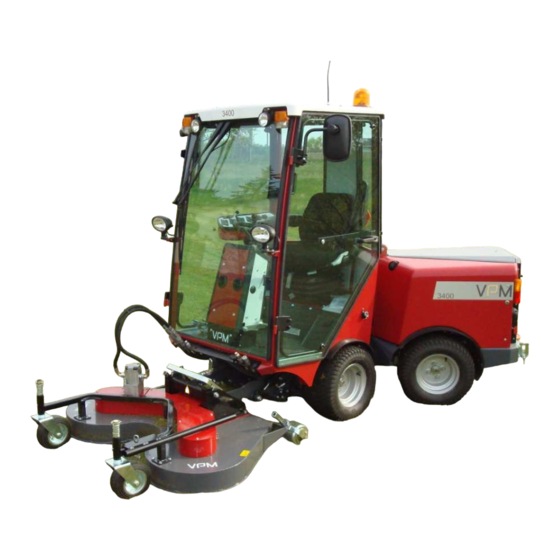

- Page 1 TIMAN 3400 User manual and spare parts book TIMAN Mower 135 cm with 3 blades and tilt up Serial no……………………… Model…………………………. Timan A/S Fabriksvej 13, hal 1 DK-6980 Tim Tlf. +45 97 330 360 CE-2011...
- Page 2 Congratulations on the purchase of your new grass cutter for the TIMAN mower IMPORTANT In order to achieve the best possible use out of the TIMAN mower and the greatest possible safety during use; it is important to read the manual before the mower is used.
-
Page 3: Table Of Contents
Table of contents Model EC declaration of conformity 1. SAFETY INSTRUCTIONS 2. Description of the grass cutter for the TIMAN 3400 2.1 The construction of the TIMAN grass cutter 3. The machine operator 3.1 Requirements for the operator 3.2 Good advice for the operator 4. -
Page 4: Safety Instructions
- Unauthorised persons must not be in the immediate vicinity of the TIMAN 3400 mower when it is running and is in use. - Coupling the TIMAN3400 mower to the TIMAN 3400 tool carrier must only be done by the machine operator. - Page 5 - The stated pressure must not be exceeded - if this happens the warranty becomes void. - Repairs must only be carried out by specialists. Cleanliness and maintenance - Keep the TIMAN 3400 mower clean especially oil couplings and the mower’s connection mechanism. - Maintain the TIMAN 3400 mower according to the specifications...
-
Page 6: The Machine Operator
TIMAN 3400 tool carrier’s power take off. 2.1 The TIMAN 3400 mower’s construction - The TIMAN 3400 mower has been constructed with a strong deck - The mower’s 4 wheels and tool connection are mounted on the deck. - The hydraulic oil engine is located in the middle of the deck and beneath this is the belt drive to distribute the traction to the 3 blades hidden under the screen. -
Page 7: Daily Check
- Next the mower’s hydraulic pipes are fitted - Before the TIMAN 3400 mower is started the seat and control panel must be adjusted for the operator. - Page 8 Operation – tilt up - The mower must be lifted up completely and the rear wheels must be removed. - Disconnect the lever from its transport position and re-attach it so it turns forward. - Next disconnect the mower’s hydraulic pipes. - Now the mower can be tilted upwards - The mower locks automatically when it is lifted up by means of the spring loaded bracket.
- Page 9 - Settings - The mower height is set by means of the table below Number of topmost Hole no. counted Mower height in spacer rings from the ground Hole no. 1-2 Approx. 35mm Hole no. 2-3 Approx. 45mm Hole no. 3-4 Approx.
-
Page 10: Start
4.3 Start The TIMAN 3400 mower can only be started when: - The TIMAN 3400 mower can only be started when the machine operator is seated in the operator’s seat The TIMAN 3400 must only be started when: - The machine operator has ensured that there are no animals or people in the immediate vicinity of the machine. -
Page 11: Service And Maintenance
- It is important that the hydraulic oil is kept clean, so always be aware of dirt when the oil and hydraulic connections are changed as well as when the mover is connected to the TIMAN 3400 tool carrier. 5.4 Lubrication - The interval in hours for lubrication with grease, pressure lubrication is stated in brackets. -
Page 12: Dismantling
5.5 Dismantling - When the mower or parts of it are worn out; all parts must be disposed of in accordance with applicable environmental requirements. 6. Technical data 6.1 Technical specifications Weight: 130 kg. Length: 1.25 metres Height: 0.50 metres Width: 1.35 metres... -
Page 13: Warranty And Reporting Defects
- When ordering spare parts please state model and chassis number. - On the following pages there is a list of spare parts for the TIMAN 3400 tool carrier - If you need parts which are not mentioned on this list then contact TIMAN Maskiner. - Page 14 Pos Description Amount TIMAN spare part no. Belt, long VTR-00013 Belt, short VTR-00012 Pulley 1 track VTR-00009 Pulley 2 track VTR-00010 Pulley 1 track complete VTR-00021 Bearing housing VTR-00011 Blade VIN-00085...
- Page 15 Pos Benævnelse Antal TIMAN res. Nr. Wheel V35-291 Bearing VTR-00019 Fork V35-252 Wheel VIN-00084 Linch clip VIN-00104 Washer V35-287 Distpiece V35-250...
- Page 16 Pos. Name Amount TIMAN spare part no. Shackle for tilt up V35-239 Spring for shackle VIN-00086 Frame for quick release V35-237 Lock pin V35-122 Locking bolt V35-116 Circlip for locking bolt VTA-1150810016 Fitting for locking lever V35-104 Bearing for locking lever...
- Page 17 Pos. Name Amount TIMAN spare part Deck V35-222 Bracket for suspension V35-246 Lever for tilt up V35-255 Lock, safety pin VIN-00087 Shield around belt, small top plate (red) V35-213 Shield around belt, large top plate (red) V35-212 Shield around belt, ground shield (red)
