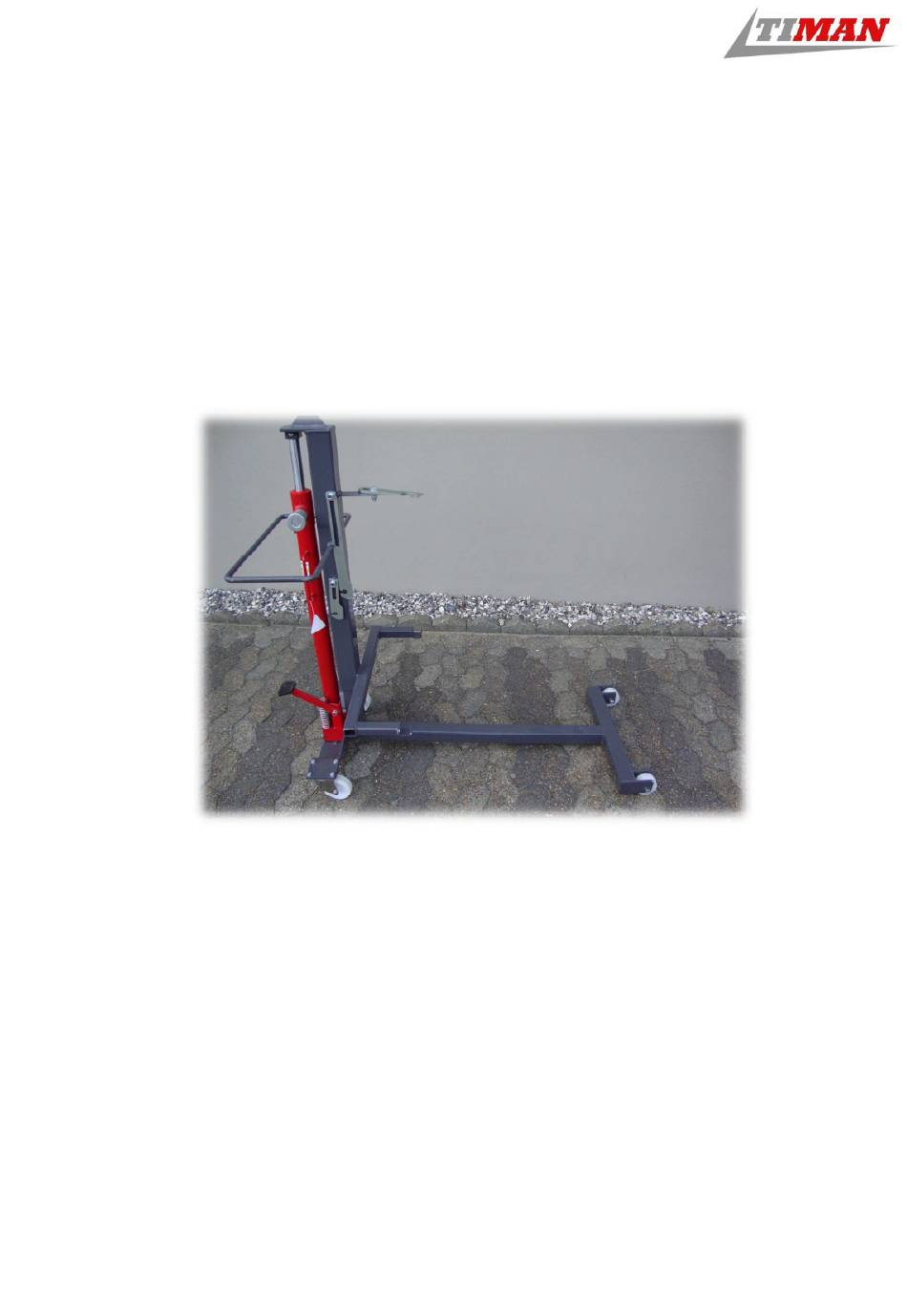

- Page 1 TIMAN 3400 User manual and spare parts book TIMAN Tool trolley Serial no.……………………… Model…………………………. Timan A/S Fabriksvej 13, hal 1 DK-6980 Tim Tlf. +45 97 330 360 CE-2012...
- Page 2 Congratulations on the purchase of your new tool trolley for the TIMAN 3400 tool carrier. IMPORTANT In order to achieve the best possible use out of the TIMAN 3400 tool trolley and the greatest possible safety during use; it is important to read the manual before the tool trolley is used.
-
Page 3: Table Of Contents
Table of contents Model EC declaration of conformity 1. SAFETY INSTRUCTIONS 2. Description of the tool trolley for the TIMAN 3400 2.1 The construction of the TIMAN 3400 tool trolley 3. The machine operator 3.1 Requirements for the operator 3.2 Good advice for the operator 4. -
Page 4: Safety Instructions
- Unauthorised persons must not be in the immediate vicinity of the TIMAN 3400 tool trolley when it is in use. - Coupling the TIMAN 3400 tool trolley to the tool carrier’s different tools must only be done by the machine operator. -
Page 5: The Construction Of The Timan3400 Tool Trolley
2. Description of the TIMAN 3400 tool trolley - The tool trolley has been constructed for fitting/disconnecting all tools fitted on the TIMAN 3400 tool carrier’s rear tool support by means of a hydraulic jack and the tool trolley’s wheels. -
Page 6: The Machine Operator
- All tools must be unloaded before they are disconnected! - Drive the tool trolley towards the TIMAN 3400 tool carrier rear end and steer the front wheels forward between the tool carrier’s rear wheels until the tool trolley’s 2 arms are positioned under the tool which is required to be disconnected. - Page 7 - Now lift the tool by means of the foot pedal until the tool’s front brackets are free of the front support. - Now the tool is free of the TIMAN 3400 tool carrier and can be rolled away on the tool trolley.
- Page 8 - Before the tool is lowered down towards the front and the rearmost escutcheons on the TIMAN 3400 tool carrier ensure that the tool’s fittings are correctly placed in relation to its escutcheons; which is between the rearmost fittings and externally on the front fittings.
-
Page 9: Service And Maintenance
Lubricate the lowermost inner square profile with general lubricating grease so the top and base glide easily in relation to one another. Safety inspection - The TIMAN tool trolley is subject to the authorities’ requirement for a compulsory 12 month safety inspection 5.3 Hydraulic system - The hydraulic jack has a closed hydraulic system which is maintenance-free. -
Page 10: The Tool Trolley's Stability
Always operate according to the conditions Only use the tool trolley on even and level surfaces. The TIMAN Tool trolley must only be used for unloaded tools! 5.7 Dismantling - When the tool trolley or parts of it are worn out, all parts must be disposed of in... -
Page 11: Technical Data
7.2 Warranty provisions The warranty only applies - When the TIMAN 3400 tool carrier has been maintained and has been serviced in accordance with the service guidance - If the user points out that a defect has been reported before work begins. -
Page 12: Spare Parts
- When ordering spare parts please state the model and chassis number. - On the following page there is a list of spare parts for the TIMAN 3400 tool trolley - If you need parts which are not mentioned on this list then contact TIMAN A/S.
