Manual - Carina350EM/EE
7
13
8
Mobile lift Carina350EM/EE has been developed to meet most lifting needs in combination with the right accessories.
It is intended for lifting in a seated or horizontal position. Carina350EM/EE is collapsible and therefore easy to transport
and store. Carina350EM has manual base-width adjustment and Carina350EE has electrical base-width adjustment.
Functional inspection
Visual inspection
Inspect lift functions regularly. Check to ensure that material is free from damage.
Always read the instructions
Read instructions for all assistive devices used in connection with transfers:
Keep the manual where it is accessible to users of the product.
Do not leave the patient unattended during a lifting situation.
Before use:
Make certain the lift is properly assembled.
Check Slingbar connection and safety latch function.
Check lift lifting function and base-width adjustment.
Under no circumstances may the lift be used by persons who have not
received instruction in the operation of the lift.
1
9
3
2
10
4
14
11
12
6
1.
Boom
2.
Mast
3.
Handlebar
4.
Control box
5.
Emergency stop
6.
Rear castors with brakes
7.
SlingBar with safety latch
8.
Front castors
9.
Emergency lowering
(mechanical)
5
10.
Motor/actuator for boom
11.
Locking handle
12.
Motor for base-width
adjustment (EE)
13.
Pedal for base-width
adjustment (EM)
14.
Strap
Max. load 160 kg/352 lbs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ready for life Carina350EM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RoMedic Ready for life Carina350EM

Summary of Contents for RoMedic Ready for life Carina350EM

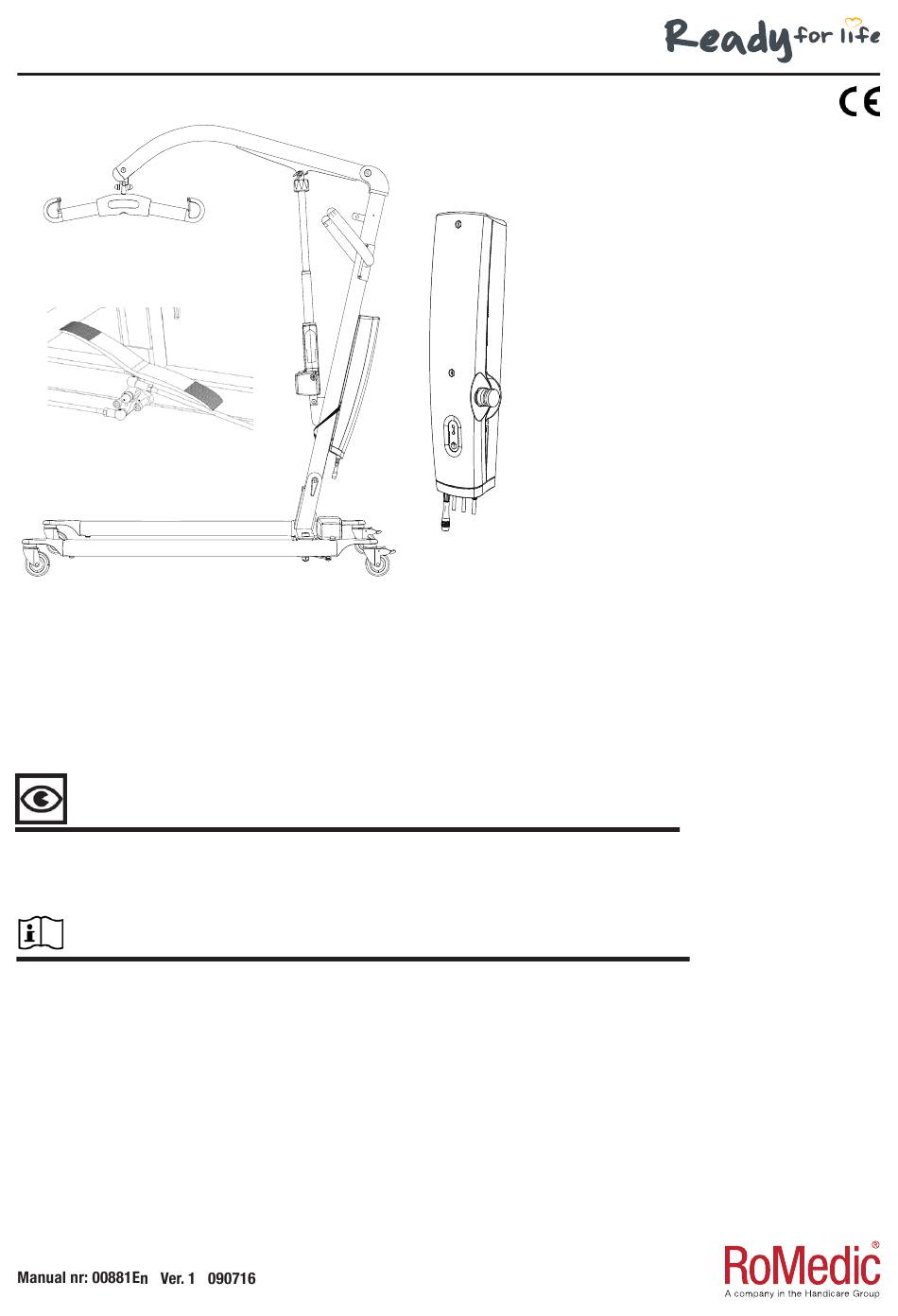

  • Page 1 Manual - Carina350EM/EE Boom Mast Handlebar Control box Emergency stop Rear castors with brakes SlingBar with safety latch Front castors Emergency lowering (mechanical) Motor/actuator for boom Locking handle Motor for base-width adjustment (EE) Pedal for base-width adjustment (EM) Strap Max. load 160 kg/352 lbs Mobile lift Carina350EM/EE has been developed to meet most lifting needs in combination with the right accessories.

  • Page 2: Table Of Contents

    M A N U A L Table of contents Technical information ................Important information ................. Assembly ....................Final inspection ..................Dimensions, Carina350EM/EE ............Charging batteries ................. Handset ....................Base-width adjustment ................Emergency stop, emergency lowering ........... Trouble-shooting ..................Accessories ..................Other maintenance details ..............11 Max.

  • Page 3: Technical Information

    • The lift must be assembled according to the assembly instructions provided by RoMedic. • Warranty applies only if repairs or alterations are made to the product by personnel who are authorized by RoMedic. • Batteries control unit and actuators on the lift must not come in direct contact with water.

  • Page 4: Assembly

    M A N U A L Assembly of Carina350EM/EE Check to ensure that all components are included: Mast with boom, lift motor, slingbar and control box. Undercarriage with base-width adjustment motor (EE) or base-width adjustment pedals (EM). Handset and cord. Locking handle for mounting mast on undercarriage.

  • Page 5: Final Inspection

    M A N U A L Final inspection Inspect the lift for signs of wear and damage. Check all four castor wheels and castor wheel locks. Check all connections and fixtures including screws and bolts. Check the packaging for any loose bolts and screws.

  • Page 6: Dimensions, Carina350Em/Ee

    M A N U A L Dimensions 126,5 49,8 102-112 40,2-44,1 43,7 33,9 52-163 20,5-64,2 22,5 Column A measurement is in cm and weight is in kg. Column B measurement is in inches and weight is in lbs. Ver.1 090716...
  • Page 7 M A N U A L Dimensions 13,8 19,3 21,7 64,5 25,4 48,5 N (EM) 34,5 76,06 N (EE) 79,37 17,5 38,58 11,8 M is turning diameter N is total weight of lift O is the weight of the heaviest component P is movement in forward direction R is referencemeasure 70 cm with max legspreading S is minimum distance from wall to slingbar at maximum...

  • Page 8: Charging Batteries

    M A N U A L Charging batteries Connect the adaptor to the lift and to a wall outlet. Check to ensure that the LED lamps marked “Power” and “Full” light up. The “Power” and “Full” LED lamps indicate that the battery receives power during charging.

  • Page 9: Emergency Stop, Emergency Lowering

    That all cables are properly and securely connected. Pull out the contact and plug it in again firmly. If the lift is still not working properly, contact RoMedic. If the lift makes unusual noises: Try to locate the source of the sound, take the lift out of operation and contact RoMedic. Ver.1 090716...

  • Page 10: Accessories

    M A N U A L Accessories Slings The RoMedic Slings are available in different fabrics and are a series of several sling models. The choice of model and material is determined by the patient’s functional capacity and the situations in which the product is to be used.

  • Page 11: Other Maintenance Details

    M A N U A L Other maintenance details: The lift must undergo thorough inspection at least once per year. This must be done by authorized RoMedic service personnel and in accordance with RoMedic’s service manual. Repairs and maintenance may only be done by authorized personnel using original spare parts.
  • Page 12 SystemRoMedic range. RoMedic’s products are developed on an ongoing basis, which is why we reserve the right to modify product designs without prior notice. Contact your RoMedic representative for information, advice and updates.
