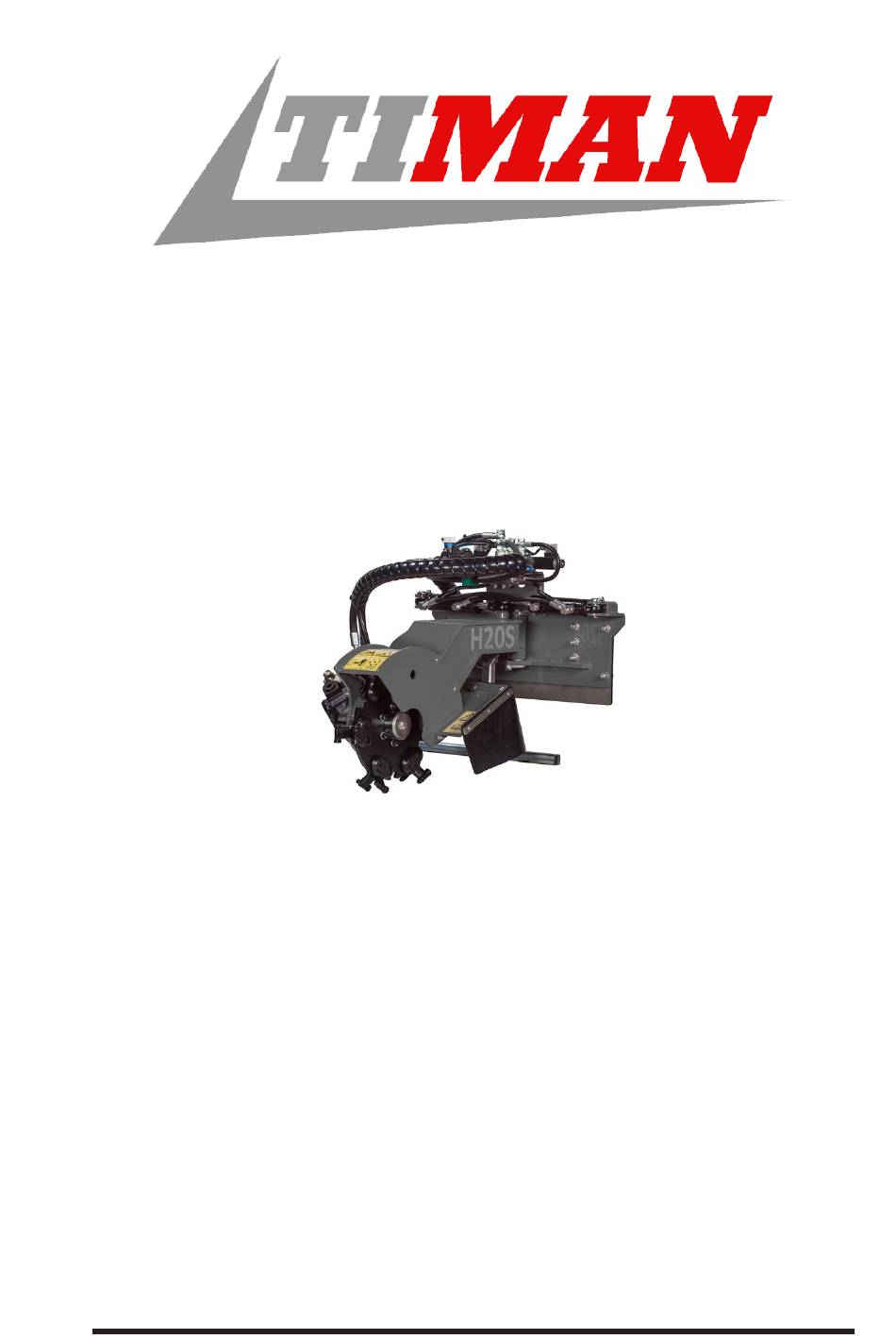

- Page 1 H20S-5 User Manual Version 2.3, 09-2021, English...
- Page 2 Timan H20S-5 User Manual, Version 2.3 This page is intentionally left blank.
-
Page 3: Table Of Contents
Timan H20S-5 User Manual, Version 2.3 Contents Congratulations on your purchase Declaration of Conformity Technical specifications Safety Connection Know your machine Operation Teeth and holders Tooth and holder replacement Maintenance Maintenance schedule Consumables Warranty Page 1 of 16... -
Page 4: Congratulations On Your Purchase
Timan H20S-5 User Manual, Version 2.3 Congratulations on your purchase Dear Valued Customer, The product you just purchased is designed in collaboration with professional users to ensure the fast, safe and efficient removal of tree stumps. By purchasing a FSI product, you show a desire for quality and durability. -
Page 5: Declaration Of Conformity
Timan H20S-5 User Manual, Version 2.3 Declaration of Conformity Manufacturer: Authorised Technical Manager FSI power-tech ApS Mr Henning Schmidt Erhvervsparken 14 Erhvervsparken 14 DK - 7160 Tørring DK - 7160 Tørring Denmark Denmark +45 7580 5558 +45 7580 5558 hereby declares that... -
Page 6: Technical Specifications
Timan H20S-5 User Manual, Version 2.3 Technical specifications Model H20S-5 Power requirements 12–22 / (kW/HP) 15–30 Oil flow 30–50 (l/minute) Oil pressure (max.bar) Cutting head Cutter wheel diameter 370 mm Tooth system FSI 21 - 3 x rotatable No. of teeth Max cutting depth per sweep 24.5 mm... -
Page 7: Safety
Timan H20S-5 User Manual, Version 2.3 Safety Safety procedures Always check safety functions and wearing parts before starting work. Only start cutting on firm ground. In the event of danger, stop the machine immediately. Always stop the cutting head before leaving the control panel. - Page 8 Timan H20S-5 User Manual, Version 2.3 Explanation of safety and guide signs Warning! Warning! Lifting / Lashing point Use protective goggles and ear defenders. Lifting eyes are designed to lift the machine's weight only. Always inspect lifting eye prior to each use. Use correctly rated safety shackle only through lifting eye.
-
Page 9: Connection
Timan H20S-5 User Manual, Version 2.3 Connection IMPORTANT: Clean the snap couplings before fitting to prevent dirt entering the hydraulic system. If dirt enters the system it will significantly impair the lifetime of the hydraulic components. The amount of oil (l/minute) and system pressure (bar) may not exceed the values stated under the Technical specifications. -
Page 10: Know Your Machine
Timan H20S-5 User Manual, Version 2.3 Know your machine Description Description Description Attachment plate Hydraulic connections Hydraulic motor Stand Cutting head Cutter housing Chip guard Securing bolt for stand Sweep speed adjustment Hydraulic cylinder, Hydraulic cylinder, sweep left sweep right NOTE: Remove stand before cutting. -
Page 11: Operation
Timan H20S-5 User Manual, Version 2.3 Operation Max cutting depth per sweep The chip depth is defined by the amount the stump cutter is lowered after a sweep. The maximum chip depth must never exceed: H20S: 24.5 mm The chip depth should be adjusted in accordance with the tool carrier’s capacity for optimal use. -
Page 12: Teeth And Holders
Timan H20S-5 User Manual, Version 2.3 Teeth and holders The tooth can be rotated (3 x 120⁰ wearing surface). For optimal cutting, ensure that all teeth are sharp. Holders must be securely fastned in their correct position. If a holder is missing or worn, the tooth cannot be fitted correctly, and the holder must be replaced. -
Page 13: Tooth And Holder Replacement
Timan H20S-5 User Manual, Version 2.3 Tooth and holder replacement IMPORTANT Inspect daily that teeth and holders are intact and securely fastened. Replace worn teeth and holders when necessary. Never use the machine when teeth or holders are missing. This can create hazardous situations and damage the machine. -
Page 14: Maintenance
Timan H20S-5 User Manual, Version 2.3 Maintenance Lubrication Description Interval Cutting head bearing - 1 Grease fittings 25 hours (not applicable for H20S) Anti-vibration mounts - 2 Grease fittings 100 hours (not applicable for H20S) Hydraulic cylinder - 4 Grease fittings... - Page 15 Timan H20S-5 User Manual, Version 2.3 Cleaning and storage Clean the machine using a high pressure cleaner, max. 120 bar. Do not spray directly onto engine, bearings, electrical parts and stickers. FSI recommends that water and a brush are used to avoid bearing grease and lubricant oils being washed out.
-
Page 16: Maintenance Schedule
Timan H20S-5 User Manual, Version 2.3 Maintenance schedule Interval Procedure 1 hour Tighten wearing parts Daily/ Check wearing parts and tighten if necessary 8 hours Check for leaks 25 hours Lubricate 50 hours Tighten: Bolts, nuts, clamps, hoses, etc.. Page 14 of 16... -
Page 17: Consumables
Timan H20S-5 User Manual, Version 2.3 Consumables Consumables The stump cutter should be filled and lubricated with the following products, depending on the version. Use the same type when filling or changing the product. Do not mix oils and liquids of different types/brands. -
Page 18: Warranty
Timan H20S-5 User Manual, Version 2.3 Warranty The warranty covers 12 months from the date of purchase. The warranty covers repairs of any demonstrable fault or defect caused by material defects or manufacturing defects. The warranty covers faulty components, which will be repaired or replaced with new ones.
