Toa EM-410 Instruction Manual

LAVALIER MICROPHONE
Thank you for purchasing TOA's Lavalier Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor personal
injury, and/or property damage.
• Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in electric shock.
• Do not lay the connection cable where it can be
walked on or tripped over, causing personal injury.
2. GENERAL DESCRIPTION

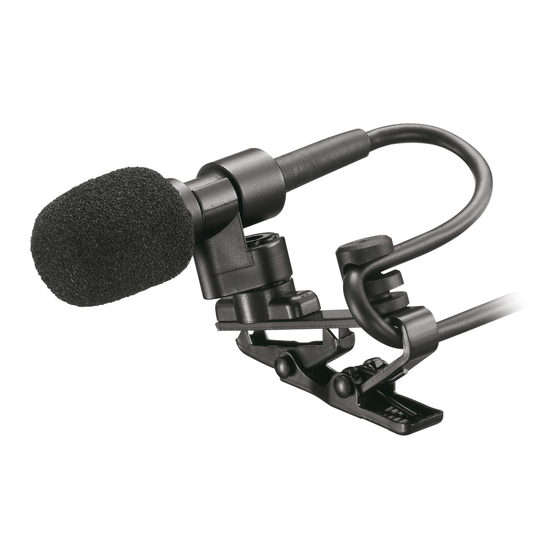

The EM-410 is a miniature, lightweight hypercardioid
condenser microphone that can be clipped to a shirt
or tie.
3. FEATURES
• Built-in filter to correct sound quality degradation
that often occurs in such cases a conventional
clip-on lavalier microphone is used, realizing high
quality sound.
• Greatly improved sound quality and acoustic
feedback margin than those for conventional lavalier
microphones, and reduced cable noise (e.g. rustle
of clothing).
• Holder mechanism that allows the microphone to
be rotated to your desired direction wherever the
microphone is clipped.
INSTRUCTION MANUAL
4. HANDLING PRECAUTIONS
• Be sure to turn off the phantom power switch on
the equipment that the unit is connected to before
connecting or disconnecting the unit. As doing
otherwise may cause loud noise or damage to the
unit or connected equipment.
• Avoid installing the unit in humid or dusty locations, in
locations exposed to the direct sunlight, near the heaters,
or in locations generating sooty smoke or steam as doing
otherwise may result in unit failure.
• Take care not to drop the unit onto the floor nor
bump it against a hard object as the unit could fail.
• Avoid using a mobile telephone near the microphone
in use. Noise could be picked up.
• To clean, be sure to first disconnect the connection
cable, then wipe with a dry cloth. When the unit gets
very dirty, use a cloth damped in a neutral cleanser.
Never use benzene, thinner, alcohol, or chemically-
treated cleaning cloth because such volatile liquids
could deform or discolor the unit.
5. SPECIFICATIONS
Element Electret condenser
Polar Pattern Hypercardioid
Rated Impedance 120 Ω, balanced
Rated Sensitivity –47 dB (0 dB = 1 V/Pa, 1 kHz)
Frequency Response 100 Hz – 15 kHz
Phantom Power 9 – 52 V DC
Output Connector Phone plug, balanced
Cable Length 5 m (16.4 ft)
Finish Main body and phone plug:
Dimensions ø8.9 x 28.6 mm (ø0.35" x 1.13")
(Excluding output cable section)
Weight 100 g (0.22 lb)
Accessories Windscreen ................ 1
Clip holder .................. 1
Note: The design and specifications are subject to change without
notice for improvement.
EM-410
Copper alloy, black, semi-gloss, paint
