Toa EM-380-AS Instruction Manual

GOOSENECK MICROPHONE
Thank you for purchasing TOA's Gooseneck Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

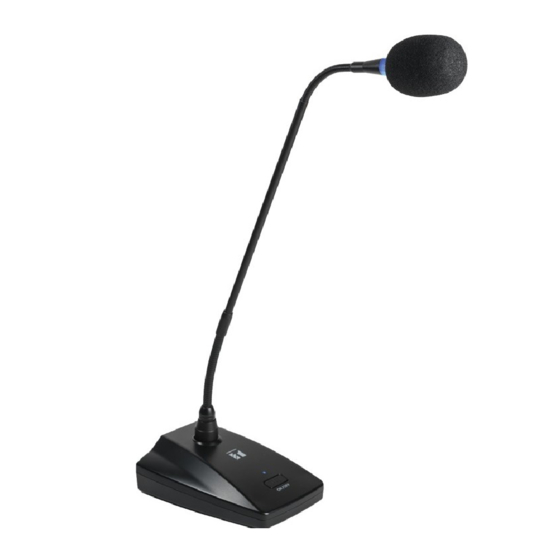

1. GENERAL DESCRIPTION

TOA's EM-380 Gooseneck Microphone is a unique shape and high quality condenser microphone designed for use in
lecture halls, house of worship and paging applications. This product is equipped with an optional power that is selecta-
ble between battery or phantom power.

2. FEATURES

Use two pieces batteries size " AA ".

3. BEFORE USING THE UNIT

Prepare two AA batteries (3 VDC) or phantom power 9 - 52 VDC to operate the unit.

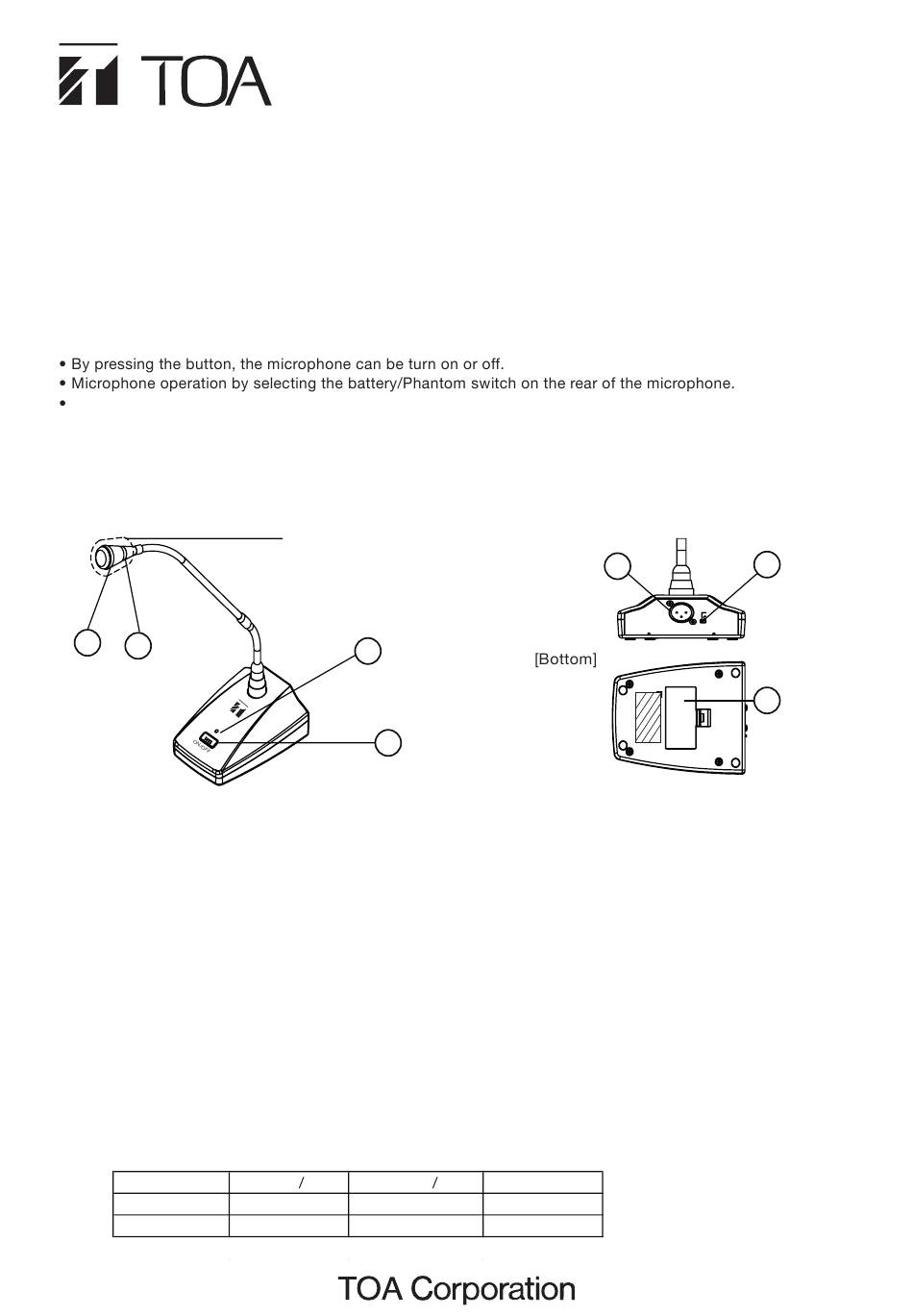

4. NOMENCLATURE AND FUNCTIONS

1
2
1. Microphone
Close-talk type cardioid electret condenser micro-
phone. The gooseneck shaft facilitates positioning
of the microphone for the optimum acoustic effect.
2. Gooseneck Lamp
Light blue when the microphone is turned on and it
will turn off when microphone in off mode.
3. Power Lamp
Same as gooseneck lamp, power lamp will turn on
when the microphone is turned on and it will turn off
when microphone in off mode.
Note : if battery is low, the lamp will turn off, but the
microphone still can be used. Recommended to
change the battery when this happen.

5. BATTERY

5.1. Life Span
Application and use battery for speech and paging be assumed such as table below
Application
Speech
Paging
* Approximate be assumed use one time paging for 10 seconds.
Windscreen
(Accessory)
3
4
3 hours week 3 hours day
20 months 3 months
- -
INSTRUCTION MANUAL
EM-380-AS
5
[Rear]
4. Microphone ON/OFF Button
Press this key to turn on or off microphone.
5. Balance Output XLR
Output impedance of the microphone is 750 ohms.
Use the supplied cable to connect with an amplifier.
6. Selector switch
Selecting this switch to use battery or phantom as
the power supply for this unit.
Note : Recommended to use the supplied cord or
balance cable, especially if using the phantom
power. Otherwise gooseneck lamp and power lamp
dimly lit, although the unit can operate normally.
7. Battery Compartment
Place AA batteries (2 pcs).
Times*
-
92,500
6
PHANTOM
BATTERY
MIC OUT
7
