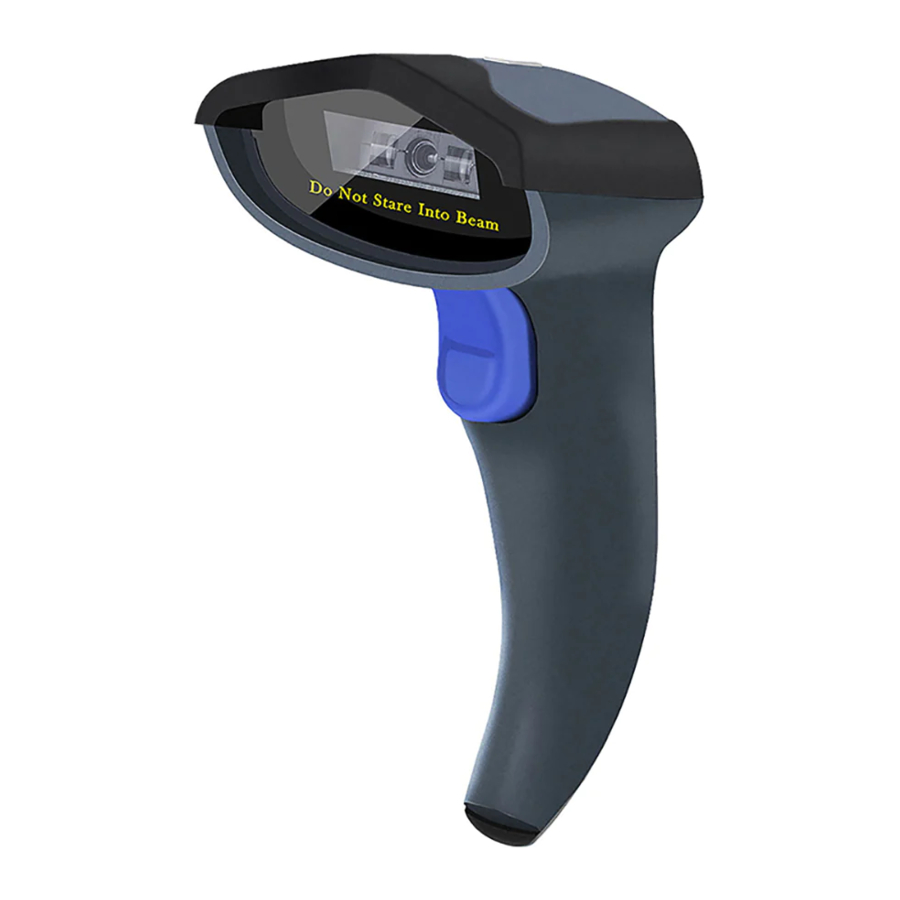

Netum W6 / L6 / M20 / L6S / L8S - 2.4G Wireless CCD 2D Scanner Manual

Package Included

1* Scanner;

1* USB Dongle;

1* USB Cable;

1* Quick Setup Guide

V1.6.30

Firmware Version

Firmware version will be displayed by scanning "$SW#VER".

$SW#VER

Factory Defaults

Scanning the following barcode can restore the scanner to the factory defaults.

Barcode Programming

Netum barcode scanners are factory programmed for the most common terminal and communication settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide. An asterisk (*) next to an option indicates the default setting.

Get Started

Connection Way

Scanner transmits data to your device via USB Dongle or USB cable. You can choose either way to start scanning.

How to transmit data via 2.4G USB Dongle?

1. Plug the USB dongle into your device(Wireless Transmit was set by default).
2. Power On the scanner.
3. Setup keyboard language: US keyboard was set by default. If you use other type of keyboard please refer to Keyboard language.

%#IFSN0$1
*Wireless Transmit

How to transmit data via USB Cable?

1. Plug one side of the USB cable into the bottom of scanner and plug the other side into your device.
2. (Setup keyboard language: US keyboard was set by default. If you use other type of keyboard please refer to Keyboard language.

USB HID-KBW

When you connect scanner with your device via USB cable, USB HID-KBW feature will be enabled by default. Scanner's transmission will be simulated as USB key-board input. It works on a Plug and Play basis and no driver is required.

$USB#KEY
*USB HID-KBW

USB COM Port Emulation

When you connect scanner with your device via USB cable, by scanning "USB COM Port Emulation" will allow your device to receive data in the way as a serial port does.

$USB#COM
USB COM Port Emulation

Note: A driver is required for this feature.

Keyboard Language

For example If you use French Keyboard, scan command barcode of "French keyboard ".

Working Mode

If you are heading for a working area which lies outside the Bluetooth signal range, you may activate scanner's store mode, following steps described below. Under this mode, all scanned data will be stored directly into the buffer memory of the device. Furthermore, data entries will be permanently saved in the buffer memory prior to the manual upload into the working station, so that you may upload them when you are near your working device.

Note: On Store Mode scanner will make 2 beeps when memory is full.

Idle Time

Time period set for scanner from idle to sleep. Default Idle Time: 3 mins.

Convert Case

Beep Volume

By scanning the appropriate barcode below will change the beep volume.

Function Key Mapping

When Function Key Mapping is enabled, function characters are sent over the keypad.

*Disable Function Key Mapping

Enable Function Key Mapping

FAQ

1. Some barcodes cannot be read, why?
   1. Dirty or unclear barcodes might not be read.
   2. The possible reason is that setting for some barcode types not commonly used is off by default. You need to activate a specific barcode type to get it to work. Please contact us for help.
2. How to change terminator to TAB?
   Please refer to the section of "Terminator configuration" from the manual on our official website.
3. Are there any barcodes for applying or removing prefix & suffix?
   Yes, you may go to our official website www.netum.net; to download the manual, refer to the section of" prefix and suffix" or turn to customer service for help.
4. How to solve the messy code problem encountered while using other foreign languages?
   The default language is English. Please refer to "Keyboard Language" to change the language.
5. Why scanner can not read Italy Pharmacy code?
   Download the manual from our official website according to the scanner model number, refer to the section of Code32 then scan "Enable Code32" to enable the scanner to read Italy pharmacy code.
6. Why scanner can not read add-on 2 or 5 codes?
   Download the manual from our official website according to the scanner model number, refer to the section of ADD-On code and scan the appropriate command barcode to enable the scanner to read it.
7. Why scanner can not read data matrix GS1 in a correct format?
   Scan "Enable Function Key Mapping" from this manual will enable scanner to output group separator.

Note:
Please do not hesitate to contact us if you need any other configurations.
