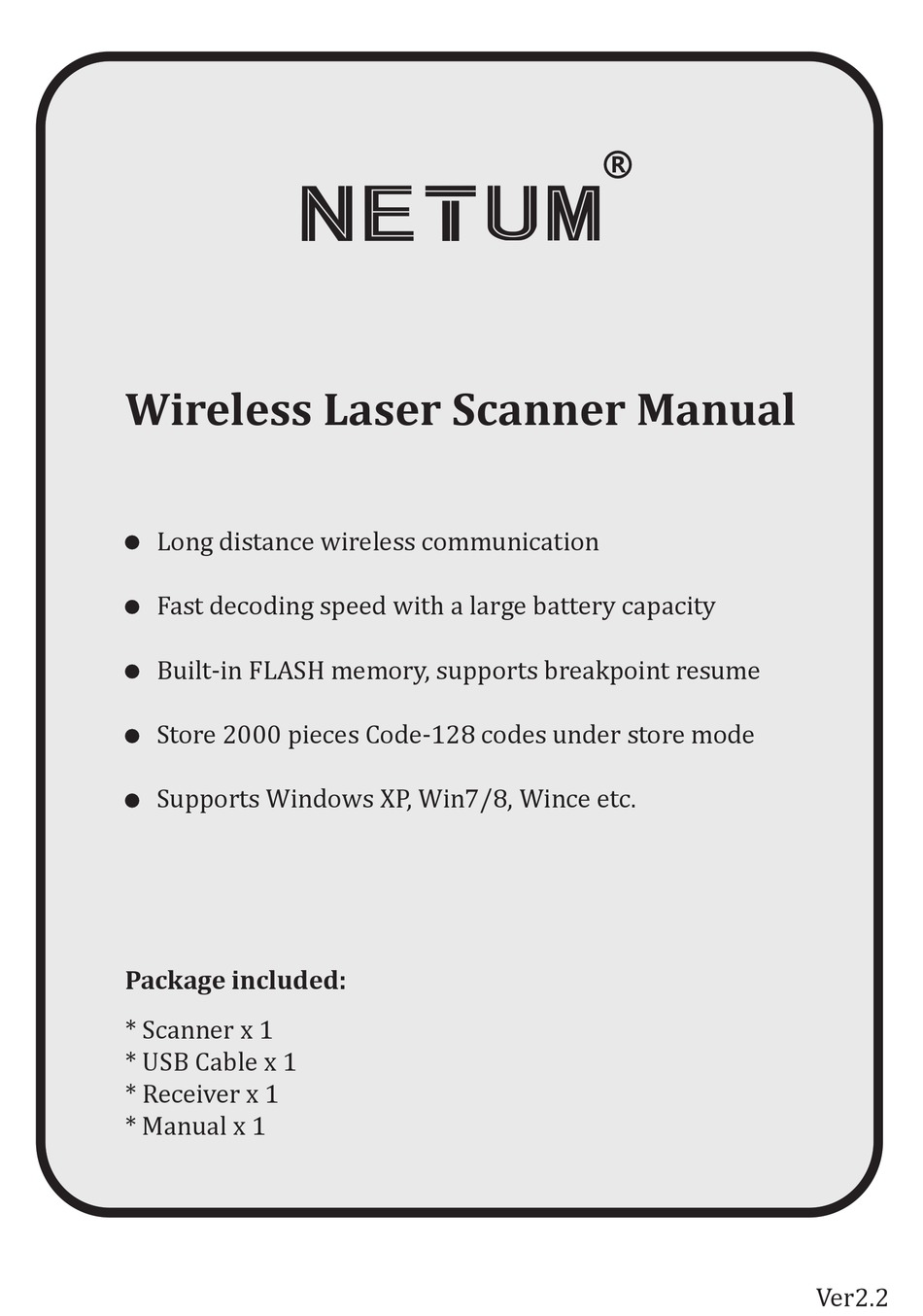

Wireless Laser Scanner Manual
Long distance wireless communication
Fast decoding speed with a large battery capacity
Built-in FLASH memory, supports breakpoint resume
Store 2000 pieces Code-128 codes under store mode
Supports Windows XP, Win7/8, Wince etc.
* Scanner x 1
Package included:
* USB Cable x 1
* Receiver x 1
* Manual x 1
Ver2.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Netum NT-1698W
Summary of Contents for Netum NT-1698W
- Page 1 Wireless Laser Scanner Manual Long distance wireless communication Fast decoding speed with a large battery capacity Built-in FLASH memory, supports breakpoint resume Store 2000 pieces Code-128 codes under store mode Supports Windows XP, Win7/8, Wince etc. * Scanner x 1 Package included: * USB Cable x 1 * Receiver x 1...
- Page 2 Barcode Scanner Overview 2.4 GHz USB Receiver USB receiver was plugged in the bottom USB Cable Operation Instruction: 1. Choose Communication Mode Connect scanner with your device via USB cable. If you use US keyboard, it's Working via USB Cable plug and play.
-
Page 3: Barcode Programming
3. LED and Beeper Indication One beep Light On then OFF Successful Scan Buzzer Three beeps Light �lash once then OFF Failed Five beeps When scanner makes three beeps please con�igure the channel for it. Refer to Important Note: 'Con�igure Working Channel'. When scanner makes �ive beeps please charge power for it for 3-4 hours until the LED light turns to solid blue. -
Page 4: Keyboard Language
Keyboard Language In order to output the codes in a correct way after you scan a normal barcode, you have to con�igure the keyboard language before you use it. For example If you use French Keyboard, scan command barcode of "French Keyboard", after that scanner will output barcodes according to French keyboard layout. -
Page 5: Scanning Mode
Scanning Mode Scanning this bar code will enable the scanner to enter manual trigger mode. Trigger Mode (Default) Trigger Mode This mode enables the engine to scan/capture, decode and transmit over and Continuous Mode over again. Continuous Mode The scanner provides a shortcut for con�iguring the terminating character Terminator suf�ix to CR or CRLF and enabling it by scanning the appropriate barcode No terminator... - Page 6 If you are heading for a working area which lies outside the signal range, you Working Mode (Only apply for wireless mode) may activate store mode of the scanner. Under store mode, all scanned data will be stored directly into the buffer memory of the device. Furthermore, the data entries will be permanently saved in the buffer memory prior to the manual upload into the working station, so that you may upload them time and again to your liking.
- Page 7 5. By scanning the following barcode, the device leaves the store mode, data will be outputed immediately the moment when you scan a barcode. Quick Store Mode* Scanner will stay awake during the idle time that you set for it and turn to Con�igure Idle time sleep if you haven't used it during the whole idle time.
- Page 8 Con�igure the channel When scanner makes three beeps please con�igure channel to rebuild the connection between scanner and receiver. Make sure you have removed the USB cable from the scanner before you Steps: con�igure the channel 1. Scan one of below channel after that scanner will make beep beep... sound. 2.Plug the USB receiver, the beep sound will stop immediately.
- Page 9 Con�igure the scanner to revert all con�igurations to factory defaults when Factory Restore unkown issues have happened . Factory Restore If there's beep sound after you scan a normal barcode but can not ouput any Start Wireless Scan data please scan below command barcode to start wireless scan. Start Wireless Scan Scanned below command bercode to check the scanner's version.
- Page 10 A code ID character identi�ies the code type of a scanned bar code. This can be Con�igure Code ID useful when decoding more than one code type. The code ID character is inserted between the pre�ix character (if selected) and the decoded symbol. 01400 Disable Pre�ix Code ID* 01401...
- Page 11 Users usually need to know barcode type in the process of scanning Symbologies Code 11 01261 01260 Enable Code 11 Disable Code11 01321 01320 Enable Code11 Multi-Veri�ication Disable Code11 Multi-Veri�ication Code 39 00221 00220 Enable Code39 Disable Code39 00251 00250 Enable transmit Code39 check digit Disable transmit Code39 check digit - 10 -...
- Page 12 00231 00230 Enable FULL ASCII Disable FULL ASCII 00281 00280 Transmit Code 39 Do not Transmit Code 39 Start/Stop Character Start/Stop Character 00331 00330 Enable Code39 Multi-Veri�ication Disable Code39 Multi-Veri�ication Code 32 00261 00260 Enable Code32 Disable Code32 Code 93 00621 00620 Enable Code93...
- Page 13 00681 00680 Enable Code93 Multi-Veri�ication Disable Code93 Multi-Veri�ication Code 128 00691 00690 Enable Code128 Disable Code128 00841 00840 Enable Code128 Multi-Veri�ication Disable Code128 Multi-Veri�ication Codabar 00851 00850 Enable Codabar Disable Codabar - 12 -...
- Page 14 00861 00860 Transmit Codabar Do not Transmit Codabar Start/Stop Character Start/Stop Character 00951 00950 Enable Codabar Multi-Veri�ication Disable Codabar Multi-Veri�ication Interleaved 2 of 5 00961 00960 Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 01051 01050 Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Multi- veri�ication Multi- veri�ication...
- Page 15 01141 01140 Enable Industrial 2 of 5 Disable Industrial 2 of 5 Multi- veri�ication Multi-veri�ication China Post 01571 01570 Enable China Post Disable China Post 01151 01150 Enable MSI Disable MSI 01251 01250 Enable MSI Multi-Veri�ication Disable MSI Multi-Veri�ication EAN-8 00371 00370 Enable EAN-8...
- Page 16 00471 00470 Transmit EAN-8 check digit Do not transmit EAN-8 check digit EAN-13 00361 00360 Enable EAN-13 Disable EAN-13 00461 00460 Transmit EAN-13 Check Character Do not Transmit EAN-13 Check Character 00481 00480 Enable Convert EAN-13 to ISBN Disable Convert EAN-13 to ISBN 01501 01500 Enable Convert EAN-13 to ISSN...
- Page 17 UPC-A 00341 00340 Enable UPC-A Disable UPC-A 00421 00420 Transmit UPC-A check digit Do not transmit UPC-A check digit 00391 00390 Enable Convert UPC-A to EAN-13 Disable Convert UPC-A to EAN-13 UPC-E 00351 00350 Enable UPC-E Disable UPC-E 00431 00430 Transmit UPC-E check digit Do not transmit UPC-E check digit - 16 -...
- Page 18 00381 00380 Enable Convert UPC-E to UPC-A Disable Convert UPC-E to UPC-A UPC/EAN Add-on Digits 00550 00551 *Disable UPC/EAN Add-on Digits Enable UPC/EAN 2-Digit Add-on Code 00552 00553 Enable 5-Digit Add-On Code Enable UPC/EAN 2 or 5 Digit Add-on Code 00541 00540 Enable UPC/EAN Multi- veri�ication...
- Page 19 Con�igure Pre�ix or Suf�ix 1. Scan code 'add pre�ix'. This step will clear all previous pre�ix con- �iguration. Add Pre�ix Maximum you can add 32 codes. 0C001 Add Pre�ix 2. Scan related pre�ix codes to con�igure the pre�ix. For example : ①...
- Page 20 2.Scan related suf�ix codes to con�igure the suf�ix. For example : ①If you want to add 'MG' as suf�ixes, �irst scan code of M then scan Code of G. ② Scan 'Test' , there're suf�ixes of MG after Test. That's TESTMG. Hide Front/Back Codes Hide Front Codes Scan barcode of ' Hide Front Codes'.
- Page 21 Scan test code '123456789' then you will get the result 3456789 Scan barcode of ' Hide Back Codes'. All previous con�iguration will be cleared. Hide Back Codes Scan the number that you want to hide. Maximum can hide 32 codes. If you want to hide 2 codes from the end, scan code of $02 For example Scan test code '987654321' then you will get the result 9876543.
- Page 22 Appendix A Code ID Barcode Type Code Barcode Type 00/01 CODE 128 EAN 8 EAN 13 ISBN UPC-A UPC-E CODE 93 GS1 Omnidirectional GS1 Limited GS1 Expanded CODE 39 Interleaved 2 of 5 Industrial 2 of 5 China post Matrix 2 of 5 CODE 11 Codebar - 21 -...
- Page 23 Appendix B： Add Pre�ix 0C001 Add Suf�ix 0C002 Hide Front Codes 0C003 Hide Back Codes 0C004 - 22 -...
- Page 24 - 23 -...
- Page 25 - 24 -...
- Page 26 - 25 -...
- Page 27 - 26 -...
- Page 28 1.Some barcodes can not be read,why ? a. Dirty or unclear barcodes might not be read. b. Digital barcode displayed on phone, computers or tablets can’t be read by laser scanner. - 27 -...
-
Page 29: Contact Information
c. The possible reason is that the con�iguration for some barcode types are not commonly used is off by default. You need to activate a speci�ic barcode type to get it to work. Please contact the customer service team for help. d.
